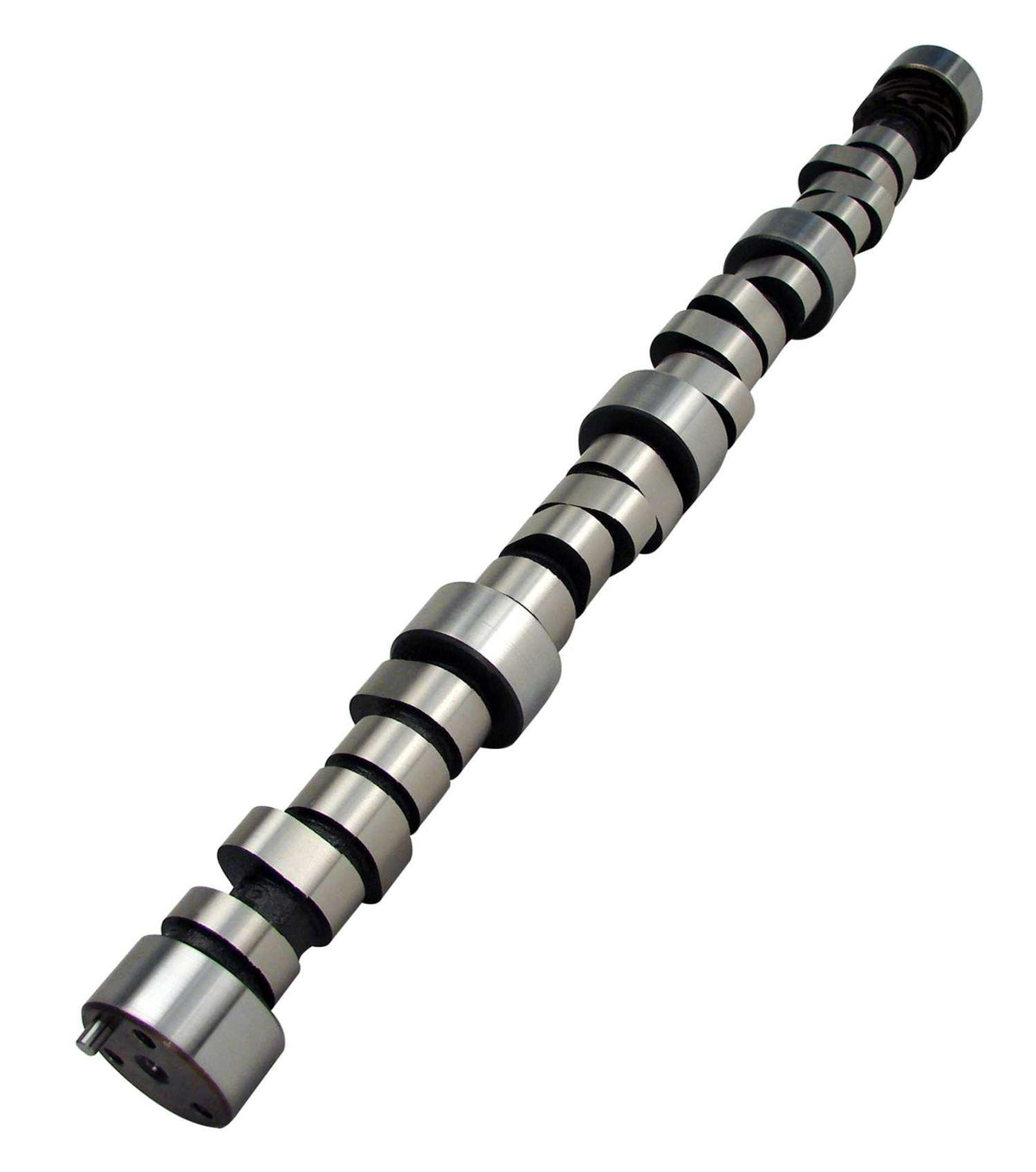

Comp Cams Magnum 252/252 Hydraulic Roller Cam for Chevrolet Small Block - 12-470-8
Limited street use and bracket racing. 10.5:1 compression 3500+ stall 4.10 gear. Needs headers and race intake. Radical idle.
Magnum 252/252 Hydraulic Roller Cam for Chevrolet Small Block
PRODUCT NOTES:
Camshaft Series - Magnum
Usage - Street/Strip
Cam Type - Hydraulic Roller
Grind Number - 314HR
Basic Operating RPM Range - 3,500-6,500 R3
Intake Duration at .050 Inch Lift - 252 DD
Exhaust Duration at .050 inch Lift - 252 DD
Advertised Intake Duration - 314 DD
Advertised Exhaust Duration - 314 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.6 IN
Exhaust Valve Lift - 0.6 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Austempered Ductile Iron
Engine Family - Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Cam and Lifter Kit Upgrade - CL12-470-8
K-Kit Upgrade - K12-470-8
Lifter Type - Hydraulic Roller
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade - SK12-470-8
Title - Magnum 252/252 Hydraulic Roller Cam for Chevrolet Small Block
Amazon ASIN - B001G7BMDK
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
Lethal Performance is proud to offer the entire line of Comp Cams products!
For more than 35 years, the COMP Cams® mission has never changed: to produce the highest-performing products possible, provide customers with superior service, and to lead the industry in technological development. While the COMP Performance Group™ has grown to multiple companies and hundreds of employees, we still retain the competitive spirit and desire to be the very best that has positioned COMP Cams® as the absolute leader in valve train components.
With COMP Cams®, there is no compromise - you're in first place.
