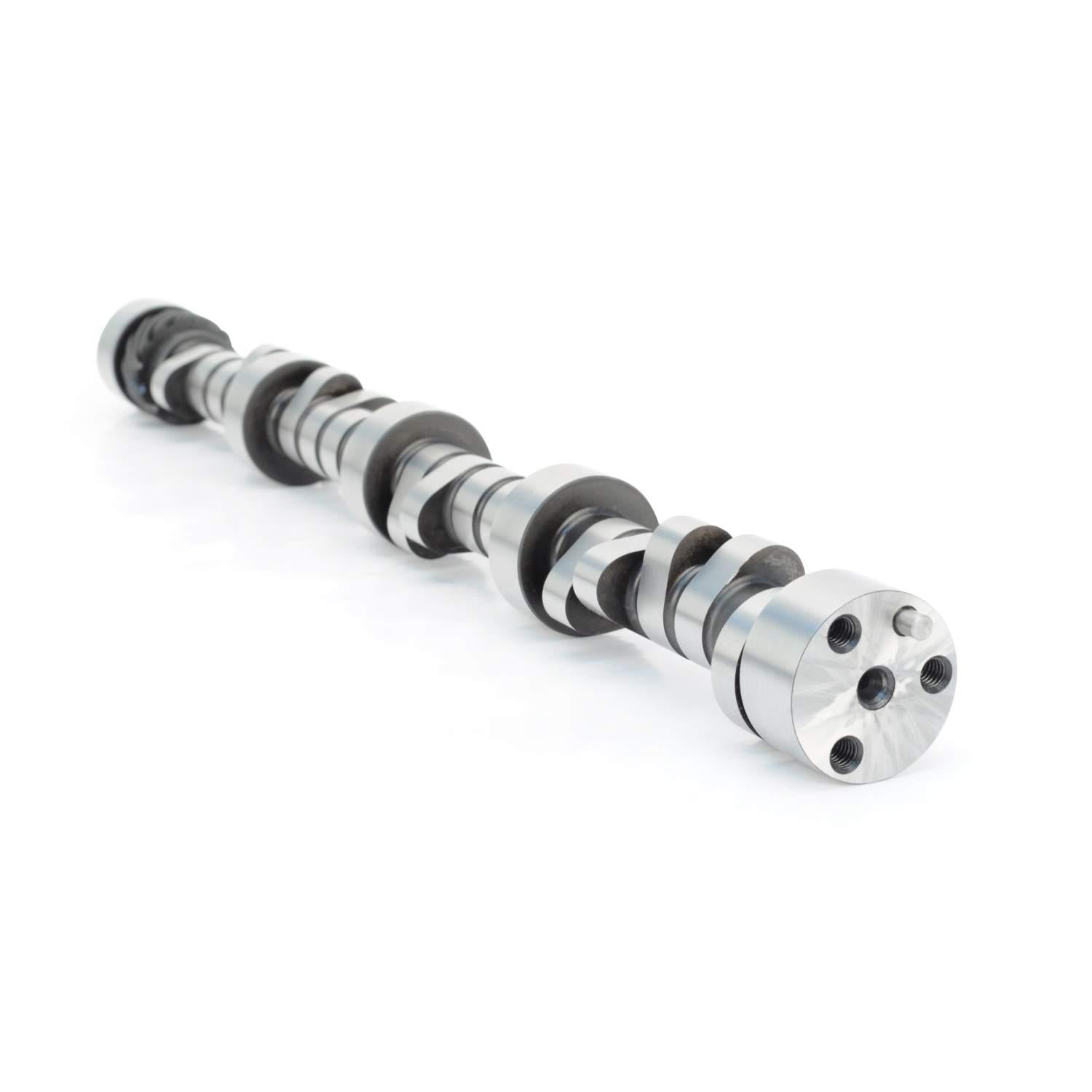

Comp Cams 4-Pattern 246/256 IB, 248/258 OB Hydraulic Roller Cam for Chevrolet Small Block - 12-475-44
Great in larger c.i. street to street/strip stroker small blocks with good heads.
4-Pattern 246/256 IB, 248/258 OB Hydraulic Roller Cam for Chevrolet Small Block
PRODUCT NOTES:
Camshaft Series - 4-Pattern Small Base Circle
Usage - Street/Strip
Cam Type - Hydraulic Roller
Grind Number - 299QS10
Basic Operating RPM Range - 2900-7,200 R3
Inboard Intake Duration at .050 Inch Lift - 246 DD
Outboard Intake Duration at .050 Inch Lift - 248 DD
Inboard Exhaust Duration at .050 inch Lift - 256 DD
Outboard Exhaust Duration at .050 inch Lift - 258 DD
Advertised Inboard Intake Duration - 299 DD
Advertised Outboard Intake Duration - 301 DD
Advertised Inboard Exhaust Duration - 311 DD
Advertised Outboard Exhaust Duration - 313 DD
Inboard Intake Valve Lift - 0.637 IN
Outboard Intake Valve Lift - 0.637 IN
Inboard Exhaust Valve Lift - 0.621 IN
Outboard Exhaust Valve Lift - 0.621 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Billet Steel
Engine Family - Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Lifter Type - Hydraulic Roller
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Title - 4-Pattern 246/256 IB, 248/258 OB Hydraulic Roller Cam for Chevrolet Small Block
Amazon ASIN - B00CWZVD7K
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
