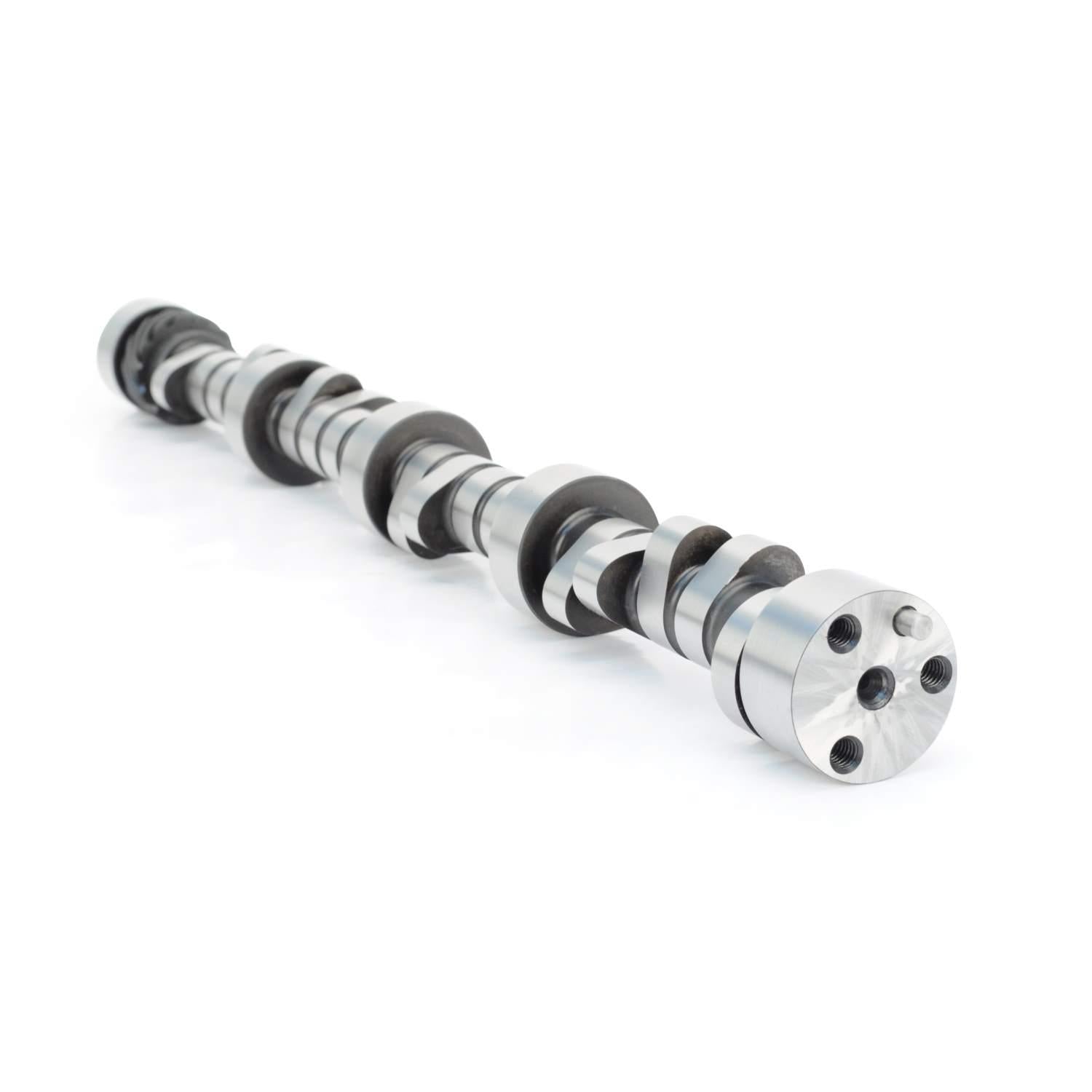

Comp Cams 4-Pattern 234/244 IB, 236/246 OB Hydraulic Roller Cam for Chevrolet Small Block - 12-473-44
Best choice for street 383 stroker engines with good cylinder heads. Very wide power range. 2600+ Stall.
4-Pattern 234/244 IB, 236/246 OB Hydraulic Roller Cam for Chevrolet Small Block
PRODUCT NOTES:
Camshaft Series - 4-Pattern Small Base Circle
Usage - Street/Strip
Cam Type - Hydraulic Roller
Grind Number - 287QS9
Basic Operating RPM Range - 2,400-6,700 R3
Inboard Intake Duration at .050 Inch Lift - 234 DD
Outboard Intake Duration at .050 Inch Lift - 236 DD
Inboard Exhaust Duration at .050 inch Lift - 244 DD
Outboard Exhaust Duration at .050 inch Lift - 246 DD
Advertised Inboard Intake Duration - 287 DD
Advertised Outboard Intake Duration - 289 DD
Advertised Inboard Exhaust Duration - 299 DD
Advertised Outboard Exhaust Duration - 301 DD
Inboard Intake Valve Lift - 0.627 IN
Outboard Intake Valve Lift - 0.63 IN
Inboard Exhaust Valve Lift - 0.614 IN
Outboard Exhaust Valve Lift - 0.618 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Billet Steel
Title - 4-Pattern 234/244 IB, 236/246 OB Hydraulic Roller Cam for Chevrolet Small Block
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lifter Type - Hydraulic Roller
Engine Family - Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Amazon ASIN - B00CWZW2B6
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
