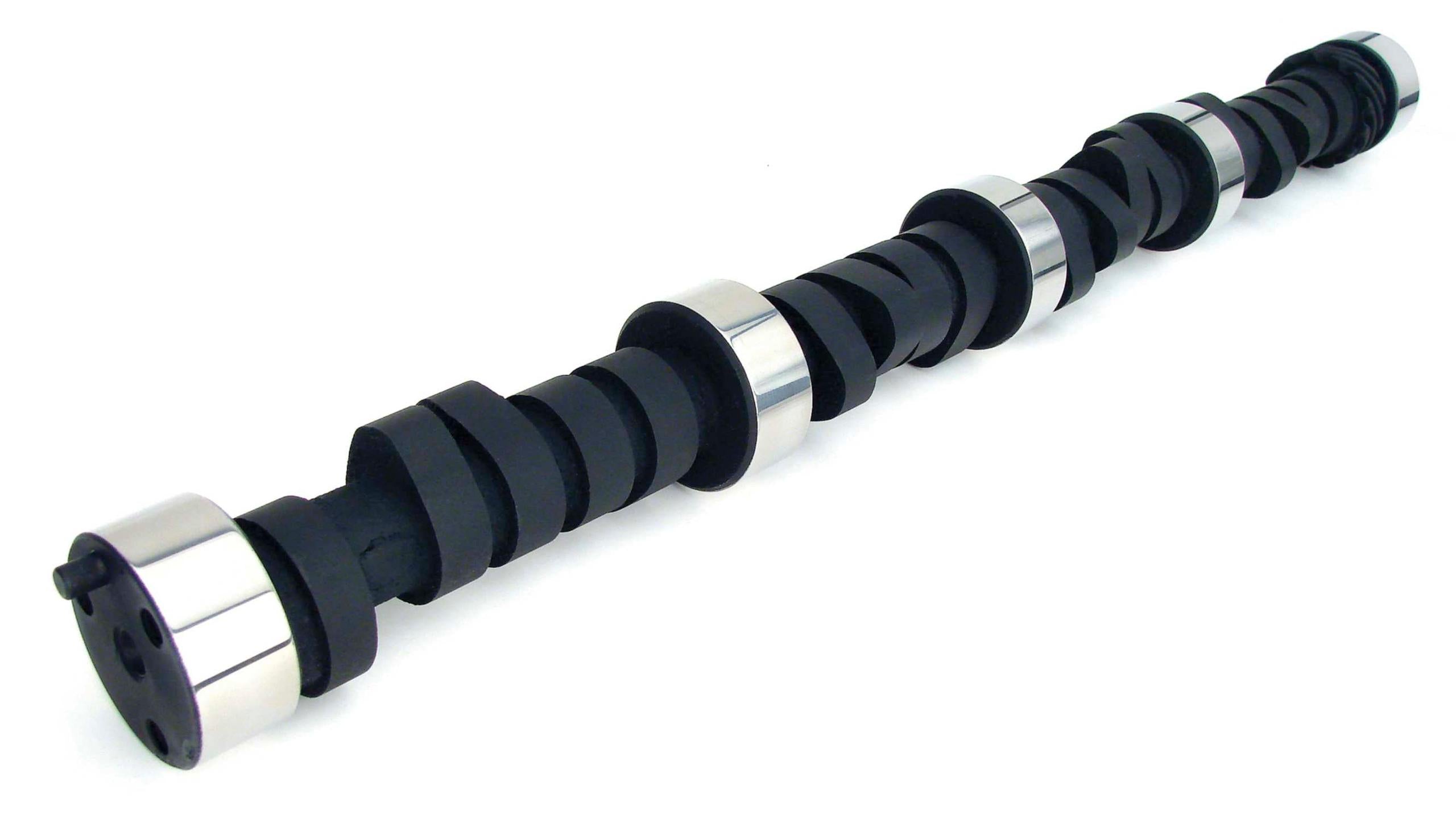

Comp Cams Magnum 224/224 Hydraulic Flat Cam for Chevrolet Small Block - 12-212-2
Great for street machines. Needs 2500+stall, headers and gears. Rough idle.
Magnum 224/224 Hydraulic Flat Cam for Chevrolet Small Block
PRODUCT NOTES:
Camshaft Series - Magnum
Usage - Street/Strip
Cam Type - Hydraulic Flat Tappet
Grind Number - 280H
Basic Operating RPM Range - 2,000-6,000 R3
Intake Duration at .050 Inch Lift - 230 DD
Exhaust Duration at .050 inch Lift - 230 DD
Advertised Intake Duration - 280 DD
Advertised Exhaust Duration - 280 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.48 IN
Exhaust Valve Lift - 0.48 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Cast Iron
Engine Family - Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Cam and Lifter Kit Upgrade - CL12-212-2
K-Kit Upgrade - K12-212-2
Lifter Type - Hydraulic Flat Tappet
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade - SK12-212-2
Title - Magnum 224/224 Hydraulic Flat Cam for Chevrolet Small Block
Amazon ASIN - B000CIQ784
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
