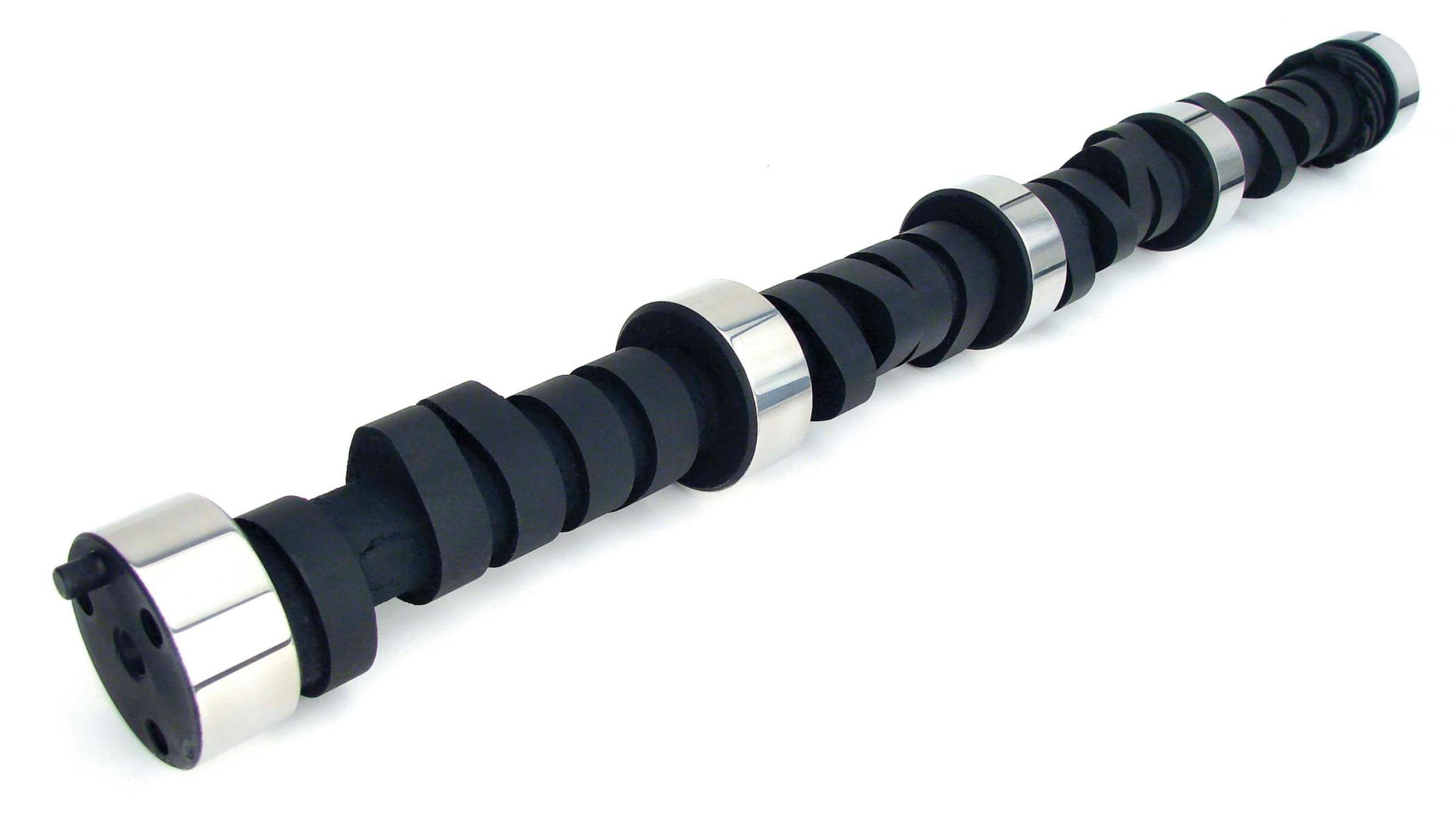

Comp Cams Low Lift Oval Track 247/255 Hydraulic Flat Cam for Chevrolet Small Block - 12-520-5
.400" lift rules. Rough idle. Low vacuum, under 10".
Low Lift Oval Track 247/255 Hydraulic Flat Cam for Chevrolet Small Block
PRODUCT NOTES:
Camshaft Series - Low Lift Oval Track
Usage - Strip
Cam Type - Hydraulic Flat Tappet
Grind Number - 22/12 H-6
Basic Operating RPM Range - 3,000-6,000 R3
Intake Duration at .050 Inch Lift - 247 DD
Exhaust Duration at .050 inch Lift - 255 DD
Advertised Intake Duration - 300 DD
Advertised Exhaust Duration - 306 DD
Lobe Separation - 106 DD
Intake Valve Lift - 0.399 IN
Exhaust Valve Lift - 0.399 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Cast Iron
Engine Family - Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lifter Type - Hydraulic Flat Tappet
Title - Low Lift Oval Track 247/255 Hydraulic Flat Cam for Chevrolet Small Block
Amazon ASIN - B001O05ZK0
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
