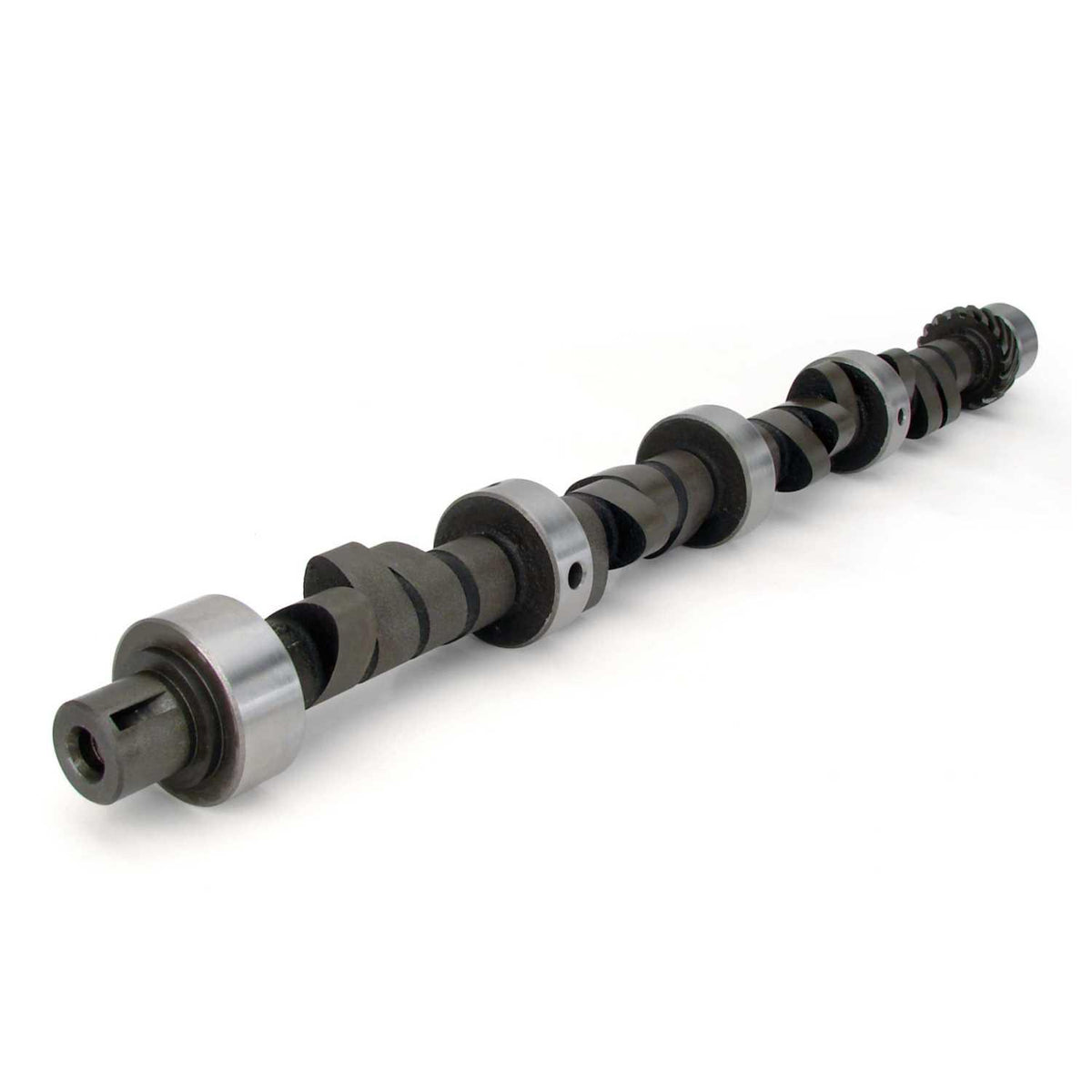

Comp Cams Magnum Muscle 222/226 Hydraulic Flat Cam for Chrysler 273-360 - 20-309-4
Factory I.D. 2899206 for: 340c.i., 1968-71, factory 275 HP; 340c.i., 1970, factory 290 HP; 340c.i., 1972-73, factory 240 HP.
Magnum Muscle 222/226 Hydraulic Flat Cam for Chrysler 273-360
PRODUCT NOTES:
Camshaft Series - Magnum Muscle
Usage - Street/Performance
Cam Type - Hydraulic Flat Tappet
Grind Number - 268AH-10
Basic Operating RPM Range - 1,800-5,800 R3
Intake Duration at .050 Inch Lift - 222 DD
Exhaust Duration at .050 inch Lift - 226 DD
Advertised Intake Duration - 268 DD
Advertised Exhaust Duration - 276 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.464 IN
Exhaust Valve Lift - 0.464 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Cast Iron
Engine Family - Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
Cam and Lifter Kit Upgrade - CL20-309-4
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lifter Type - Hydraulic Flat Tappet
Title - Magnum Muscle 222/226 Hydraulic Flat Cam for Chrysler 273-360
Amazon ASIN - B000P5G824
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
