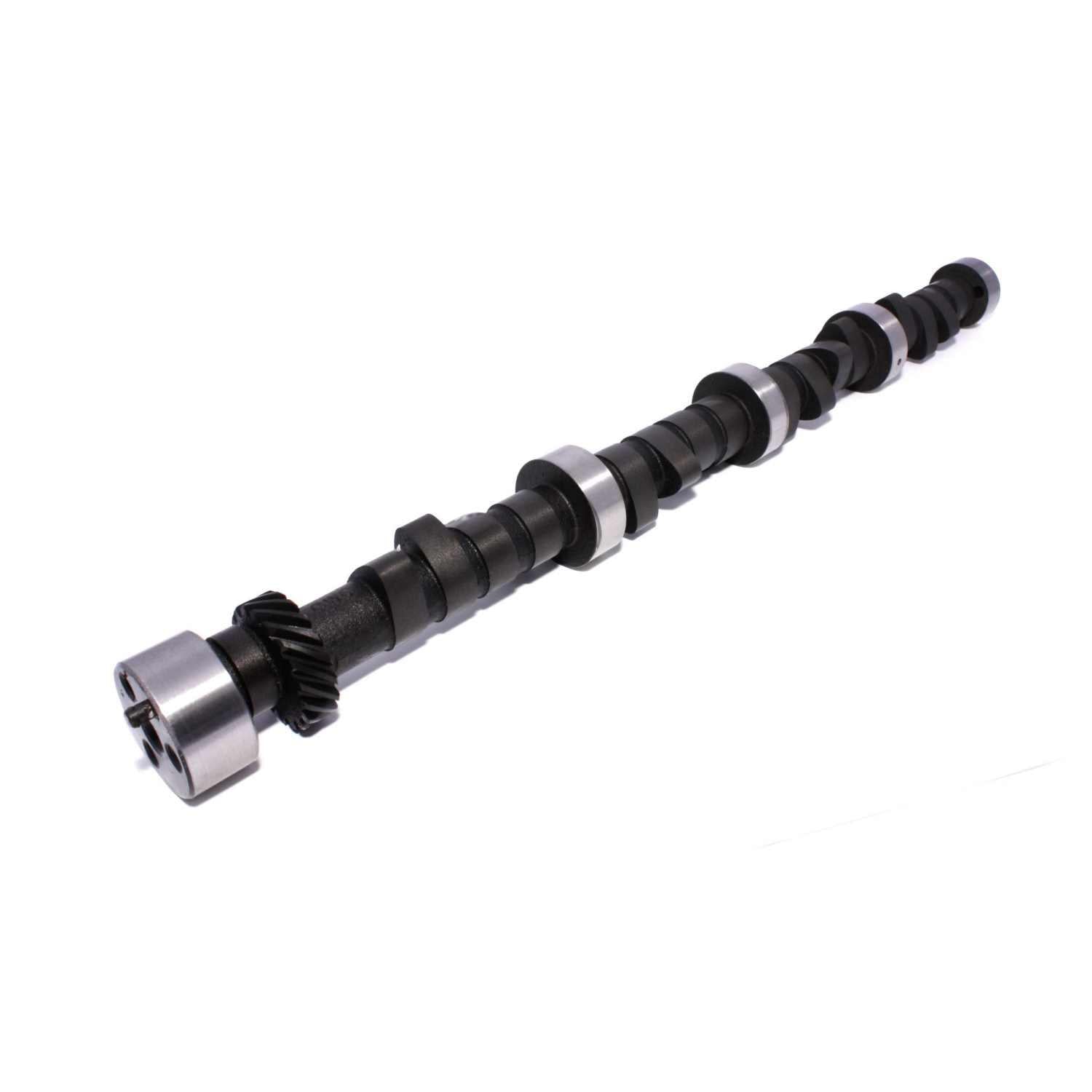

Comp Cams Drag Race 256/266 Solid Flat Cam for Chrysler 383-440 - 23-631-5
Good bracket cam. 10.5:1+ compression, 3500+ stall in 440, 3800+ in 383.
Drag Race 256/266 Solid Flat Cam for Chrysler 383-440
PRODUCT NOTES:
Camshaft Series - Drag Race
Usage - Strip
Cam Type - Solid Flat Tappet
Grind Number - XTQ286S-8
Basic Operating RPM Range - 3,500-6,500 R3
Intake Duration at .050 Inch Lift - 256 DD
Exhaust Duration at .050 inch Lift - 266 DD
Advertised Intake Duration - 286 DD
Advertised Exhaust Duration - 296 DD
Lobe Separation - 108 DD
Intake Valve Lift - 0.55 IN
Exhaust Valve Lift - 0.57 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Cast Iron
Lifter Type - Solid Flat Tappet
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Title - Drag Race 256/266 Solid Flat Cam for Chrysler 383-440
Engine Family - Chrysler 383-440 c.i. 8 Cylinder (1959-1980)
Amazon ASIN - B000P5DAJI
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
