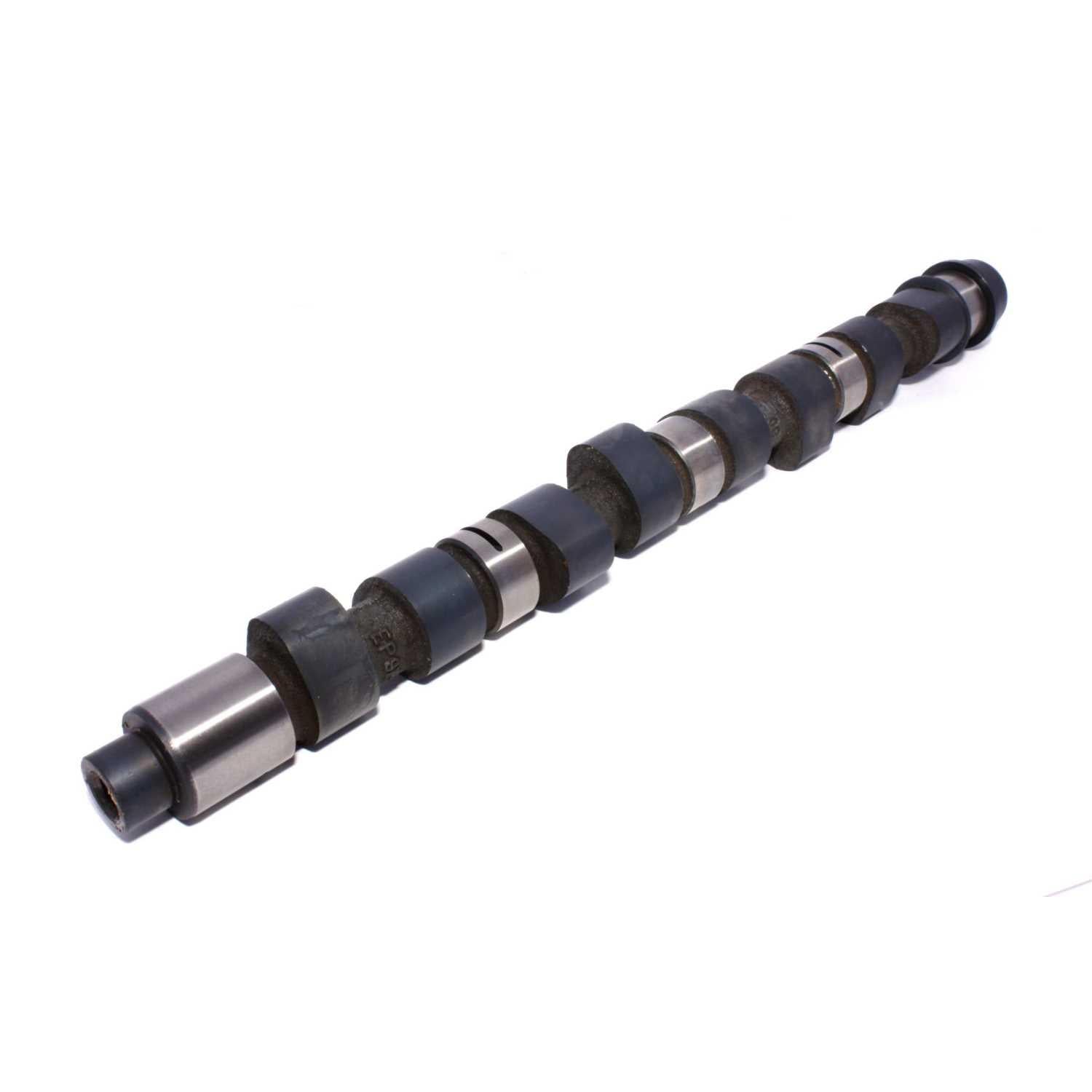

Comp Cams Magnum 224/224 Hydraulic Roller Swinging Follower Cam Chrysler 2.2/2.5L - 22-131-6
Best cam for performance usage. Slightly choppy idle.
Magnum 224/224 Hydraulic Roller Swinging Follower Cam Chrysler 2.2/2.5L
PRODUCT NOTES:
Camshaft Series - Magnum
Usage - Street/Performance
Cam Type - Hydraulic Roller Swinging Follower
Grind Number - 280H
Basic Operating RPM Range - 1,800-5,500 R3
Intake Duration at .050 Inch Lift - 234 DD
Exhaust Duration at .050 inch Lift - 234 DD
Advertised Intake Duration - 280 DD
Advertised Exhaust Duration - 280 DD
Lobe Separation - 108 DD
Intake Valve Lift - 0.46 IN
Exhaust Valve Lift - 0.46 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Material - Cast Iron
Engine Family - Chrysler 2.2L, 2.5L SOHC 4 Cylinder (1981-1987)
Cam and Lifter Kit Upgrade - CL22-131-6
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lifter Type - Hydraulic Roller Swinging Follower
Title - Magnum 224/224 Hydraulic Roller Swinging Follower Cam Chrysler 2.2/2.5L
Amazon ASIN - B0046ZE49I
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
