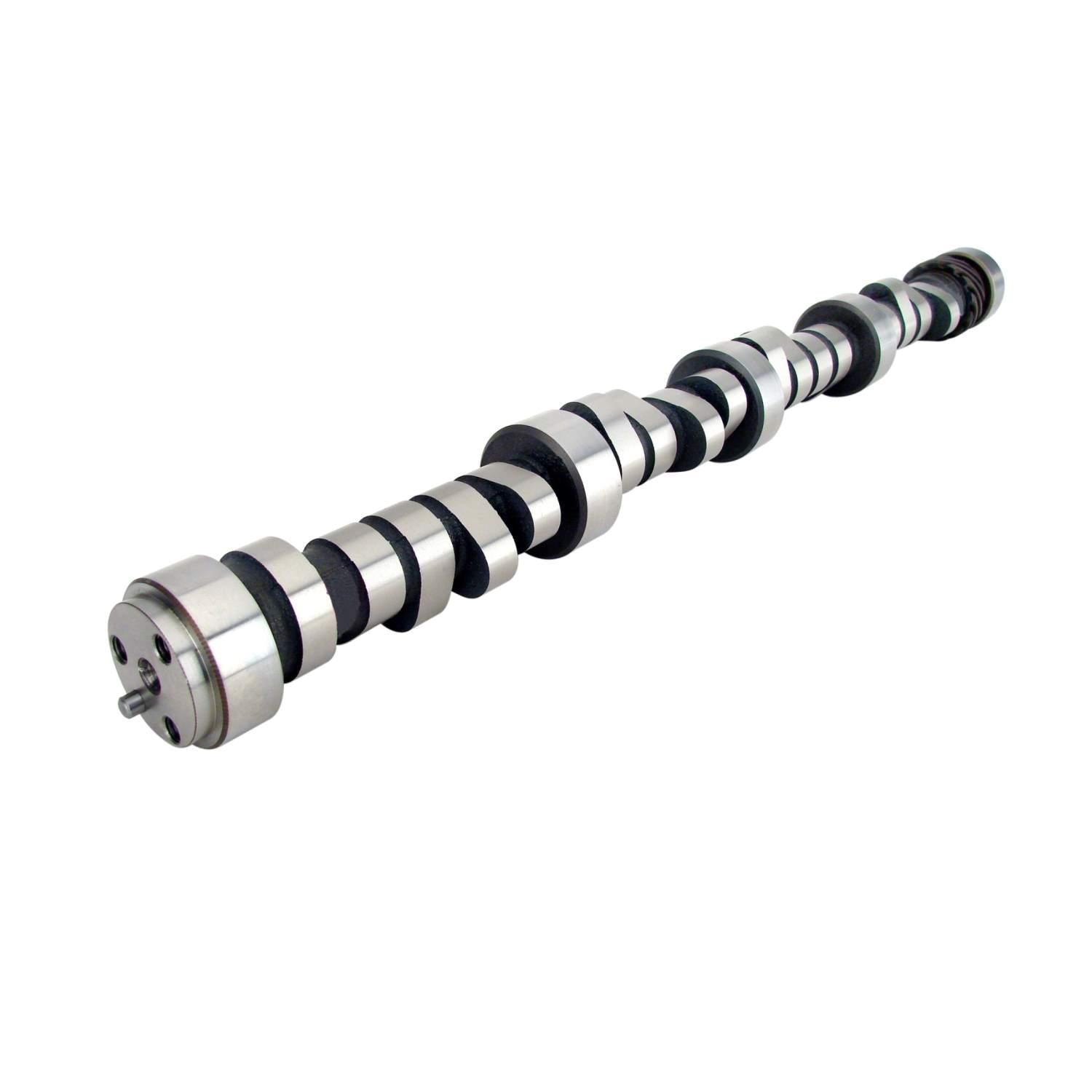

Comp Cams XE Computer Controlled 224/230 Hydraulic Roller Cam Chevrolet Big Block GEN VI - 01-417-8
Great in performance applications with custom tuning and 2200+ stall converter.
XE Computer Controlled 224/230 Hydraulic Roller Cam Chevrolet Big Block GEN VI
PRODUCT NOTES:
Camshaft Series - Xtreme Energy Computer Controlled
Usage - Street/Performance
Cam Type - Hydraulic Roller
Grind Number - XR276HR-13
Basic Operating RPM Range - 1,800-5,800 R3
Intake Duration at .050 Inch Lift - 224 DD
Exhaust Duration at .050 inch Lift - 230 DD
Advertised Intake Duration - 276 DD
Advertised Exhaust Duration - 282 DD
Lobe Separation - 113 DD
Intake Valve Lift - 0.51 IN
Exhaust Valve Lift - 0.51 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Austempered Ductile Iron
Engine Family - Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
Cam and Lifter Kit Upgrade - CL01-417-8
K-Kit Upgrade - K01-417-8
Lifter Type - Hydraulic Roller
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade - SK01-417-8
Title - XE Computer Controlled 224/230 Hydraulic Roller Cam Chevrolet Big Block GEN VI
Amazon ASIN - N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
Lethal Performance is proud to offer the entire line of Comp Cams products!
For more than 35 years, the COMP Cams® mission has never changed: to produce the highest-performing products possible, provide customers with superior service, and to lead the industry in technological development. While the COMP Performance Group™ has grown to multiple companies and hundreds of employees, we still retain the competitive spirit and desire to be the very best that has positioned COMP Cams® as the absolute leader in valve train components.
With COMP Cams®, there is no compromise - you're in first place.
