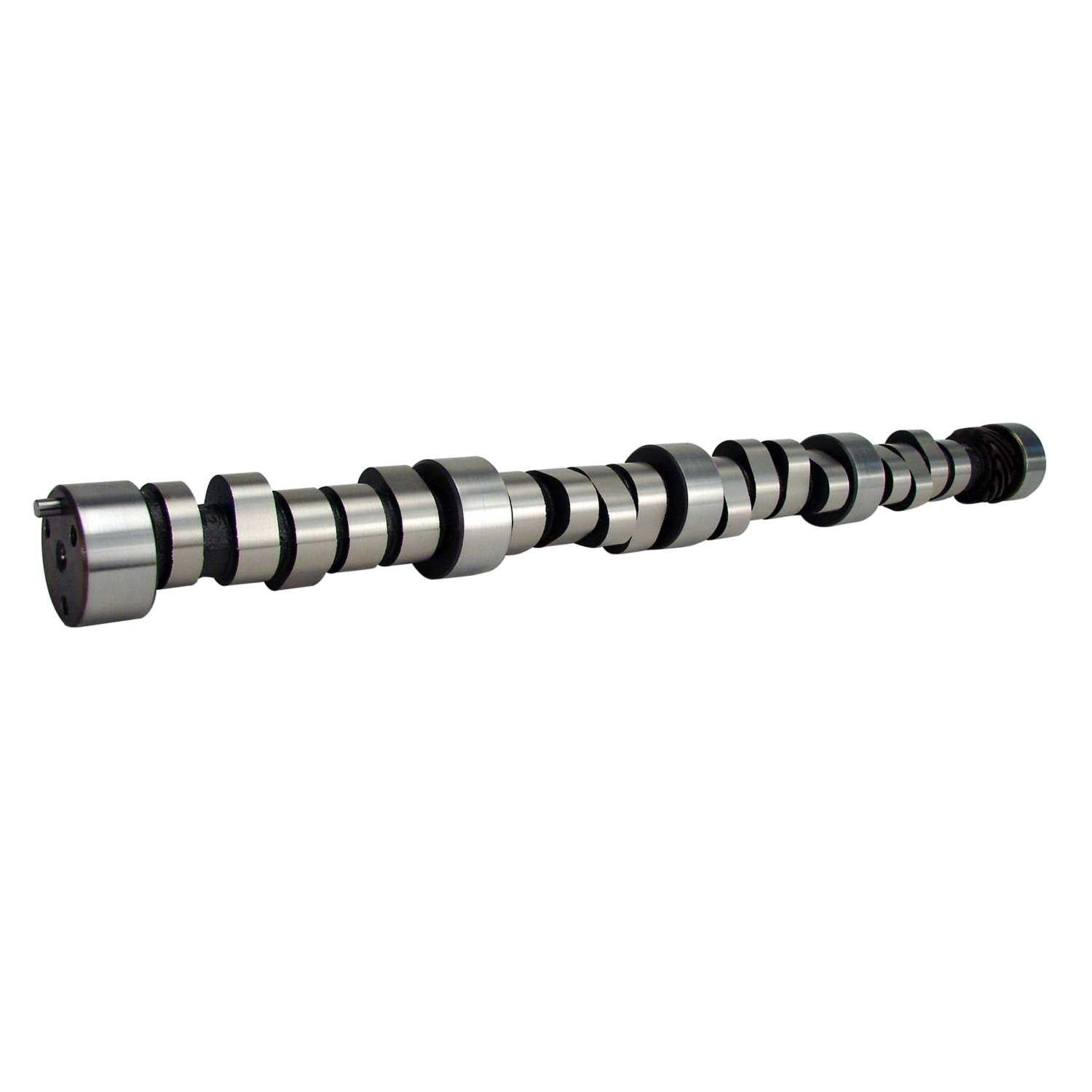

Comp Cams Nitrous HP 224/236 Hydraulic Roller Cam for Chevrolet Big Block 396-454 - 11-409-8
Street machines with 125+ hp nitrous kit, 2200+ stall and lower gears.
Nitrous HP 224/236 Hydraulic Roller Cam for Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - Nitrous HP
Usage - Street/Strip
Cam Type - Hydraulic Roller
Grind Number - NX273HR
Basic Operating RPM Range - 1,800-5,800 R3
Intake Duration at .050 Inch Lift - 224 DD
Exhaust Duration at .050 inch Lift - 236 DD
Advertised Intake Duration - 273 DD
Advertised Exhaust Duration - 296 DD
Lobe Separation - 113 DD
Intake Valve Lift - 0.537 IN
Exhaust Valve Lift - 0.547 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Austempered Ductile Iron
Title - Nitrous HP 224/236 Hydraulic Roller Cam for Chevrolet Big Block 396-454
SK-Kit Upgrade - SK11-409-8
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam and Lifter Kit Upgrade - CL11-409-8
Lifter Type - Hydraulic Roller
K-Kit Upgrade - K11-409-8
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Amazon ASIN - B000P5G58G
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
Lethal Performance is proud to offer the entire line of Comp Cams products!
For more than 35 years, the COMP Cams® mission has never changed: to produce the highest-performing products possible, provide customers with superior service, and to lead the industry in technological development. While the COMP Performance Group™ has grown to multiple companies and hundreds of employees, we still retain the competitive spirit and desire to be the very best that has positioned COMP Cams® as the absolute leader in valve train components.
With COMP Cams®, there is no compromise - you're in first place.
