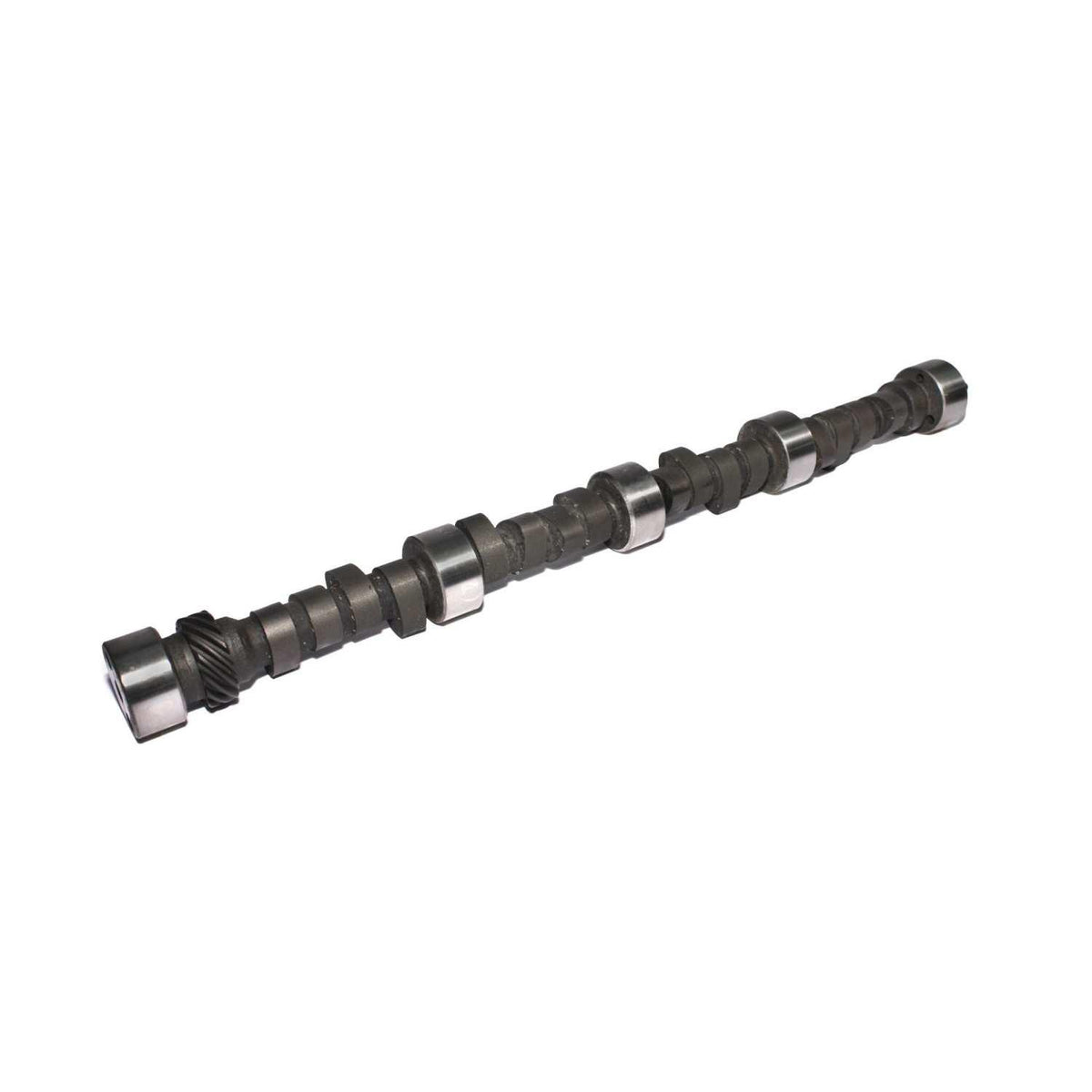

Comp Cams Xtreme Energy 4/7 Swap 240/246 Hydraulic Flat Cam Chevrolet Big Block 396-454 - 11-651-47
Street/strip, 2800+ stall, rough idle, 9.5:1+ compression.
Xtreme Energy 4/7 Swap 240/246 Hydraulic Flat Cam Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - Xtreme Energy 4 and 7 Swap Firing Order
Usage - Street/Performance
Cam Type - Hydraulic Flat Tappet
Grind Number - XE284H-10
Basic Operating RPM Range - 2,300-6,500 R3
Intake Duration at .050 Inch Lift - 240 DD
Exhaust Duration at .050 inch Lift - 246 DD
Advertised Intake Duration - 284 DD
Advertised Exhaust Duration - 296 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.574 IN
Exhaust Valve Lift - 0.578 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Cast Iron
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lifter Type - Hydraulic Flat Tappet
Title - Xtreme Energy 4/7 Swap 240/246 Hydraulic Flat Cam Chevrolet Big Block 396-454
Amazon ASIN - B001G7847C
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
