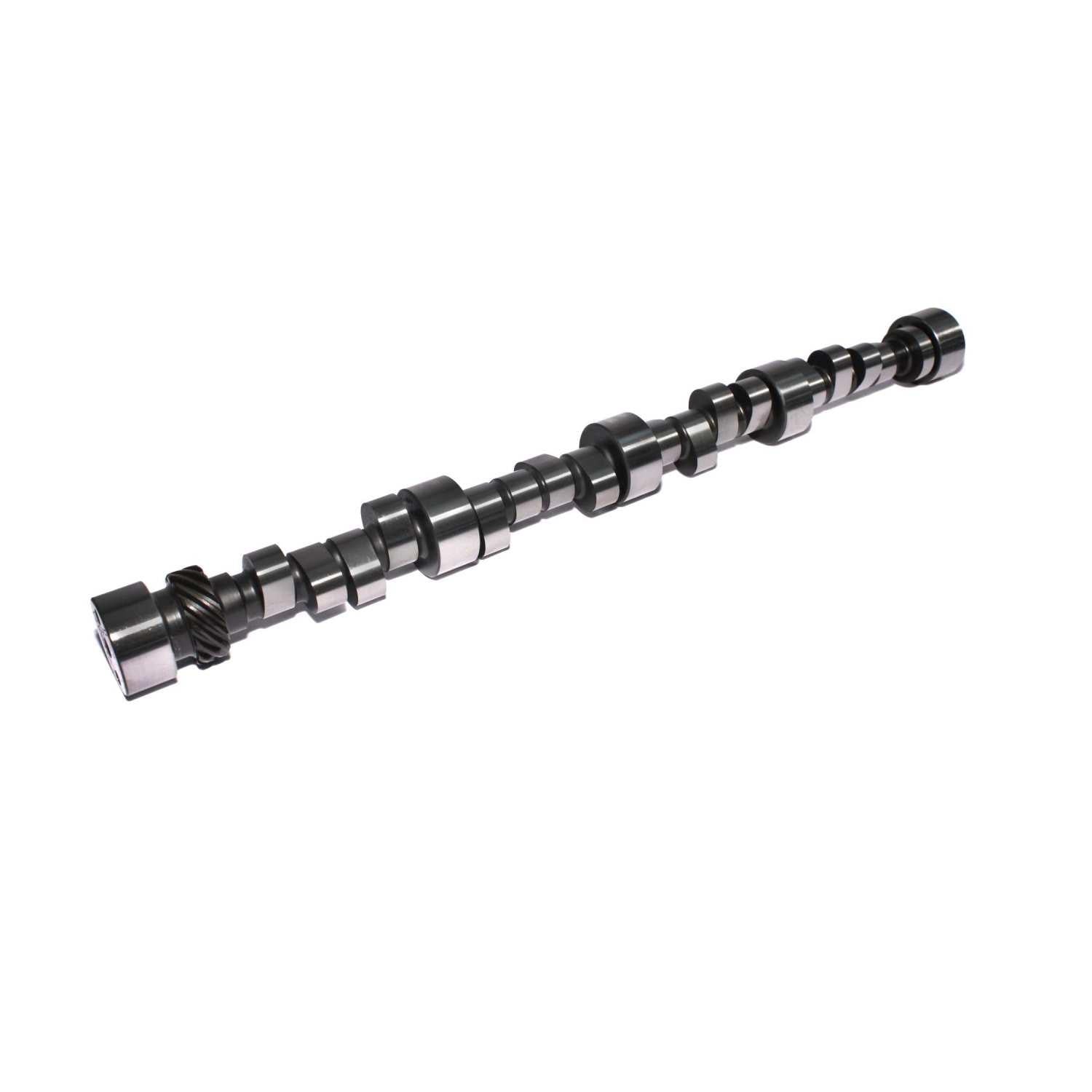

Comp Cams Drag Race 4/7 Swap 284/296 Solid Roller Cam for Chevrolet Big Block 396-454 - 11-747-14
Fast Bracket, good heads, 13:1+ compression., 5000+ stall, small N2O.
Drag Race 4/7 Swap 284/296 Solid Roller Cam for Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - Drag Race 4 and 7 Swap Firing Order
Usage - Strip
Cam Type - Solid Roller
Grind Number - 47S 321R12
Basic Operating RPM Range - 5,000-8,500 R3
Intake Duration at .050 Inch Lift - 286 DD
Exhaust Duration at .050 inch Lift - 296 DD
Advertised Intake Duration - 321 DD
Advertised Exhaust Duration - 336 DD
Lobe Separation - 112 DD
Intake Valve Lift - 0.748 IN
Exhaust Valve Lift - 0.748 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Billet Steel
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lifter Type - Solid Roller
Title - Drag Race 4/7 Swap 284/296 Solid Roller Cam for Chevrolet Big Block 396-454
Amazon ASIN - B001NESZXQ
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
