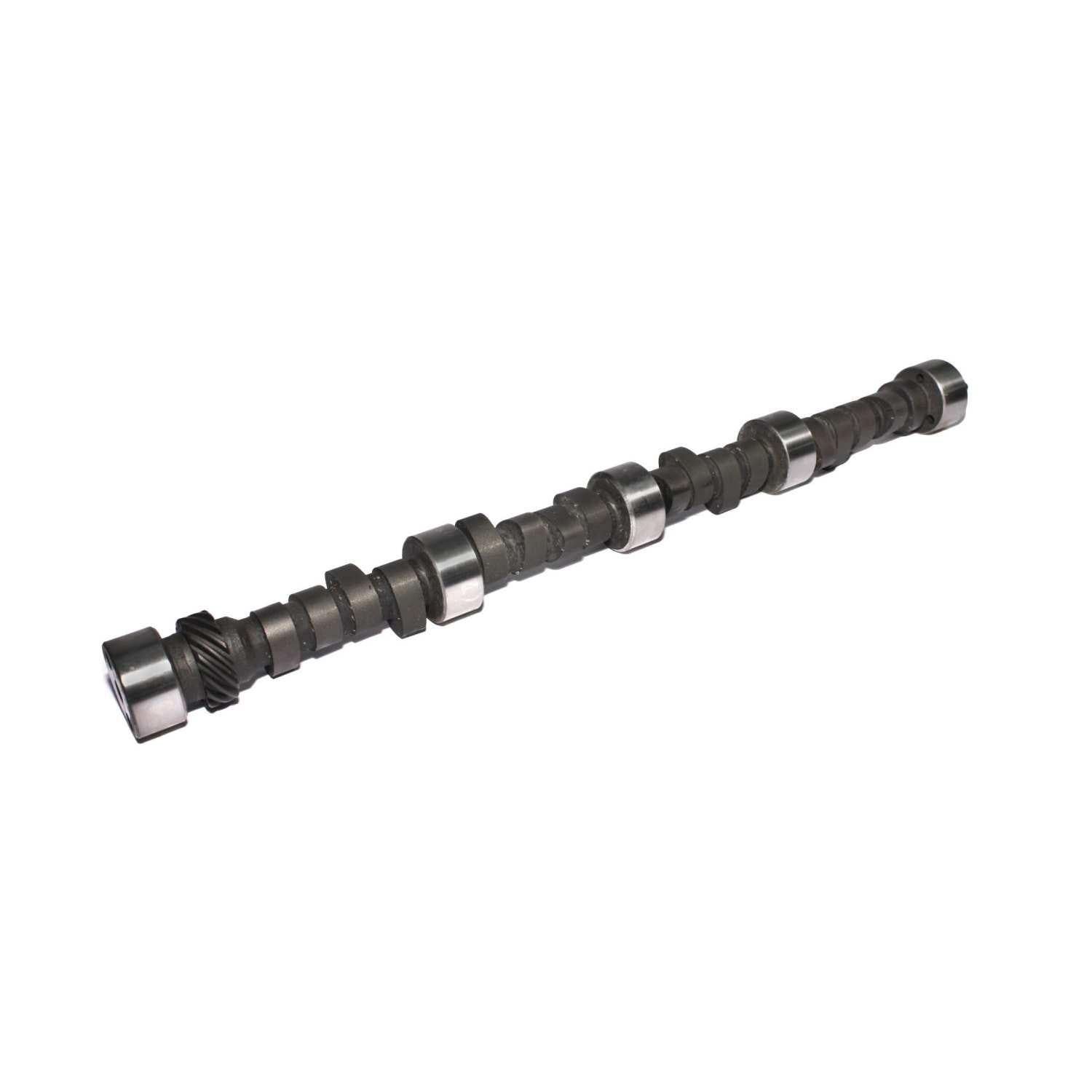

Comp Cams Drag Race 4/7 Swap 270/276 Solid Flat Cam for Chevrolet Big Block 396-454 - 11-682-47
2600-3000 lbs. car, 11.5:1+ compression with 4500+ stall. Excellent for 427-454c.i.
Drag Race 4/7 Swap 270/276 Solid Flat Cam for Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - Drag Race 4 and 7 Swap Firing Order
Usage - Strip
Cam Type - Solid Flat Tappet
Grind Number - 47S 310B-8
Basic Operating RPM Range - 4,200-7200 R3
Intake Duration at .050 Inch Lift - 270 DD
Exhaust Duration at .050 inch Lift - 276 DD
Advertised Intake Duration - 310 DD
Advertised Exhaust Duration - 314 DD
Lobe Separation - 108 DD
Intake Valve Lift - 0.638 IN
Exhaust Valve Lift - 0.631 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Cast Iron
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Lifter Type - Solid Flat Tappet
Title - Drag Race 4/7 Swap 270/276 Solid Flat Cam for Chevrolet Big Block 396-454
Amazon ASIN - B000P59330
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
