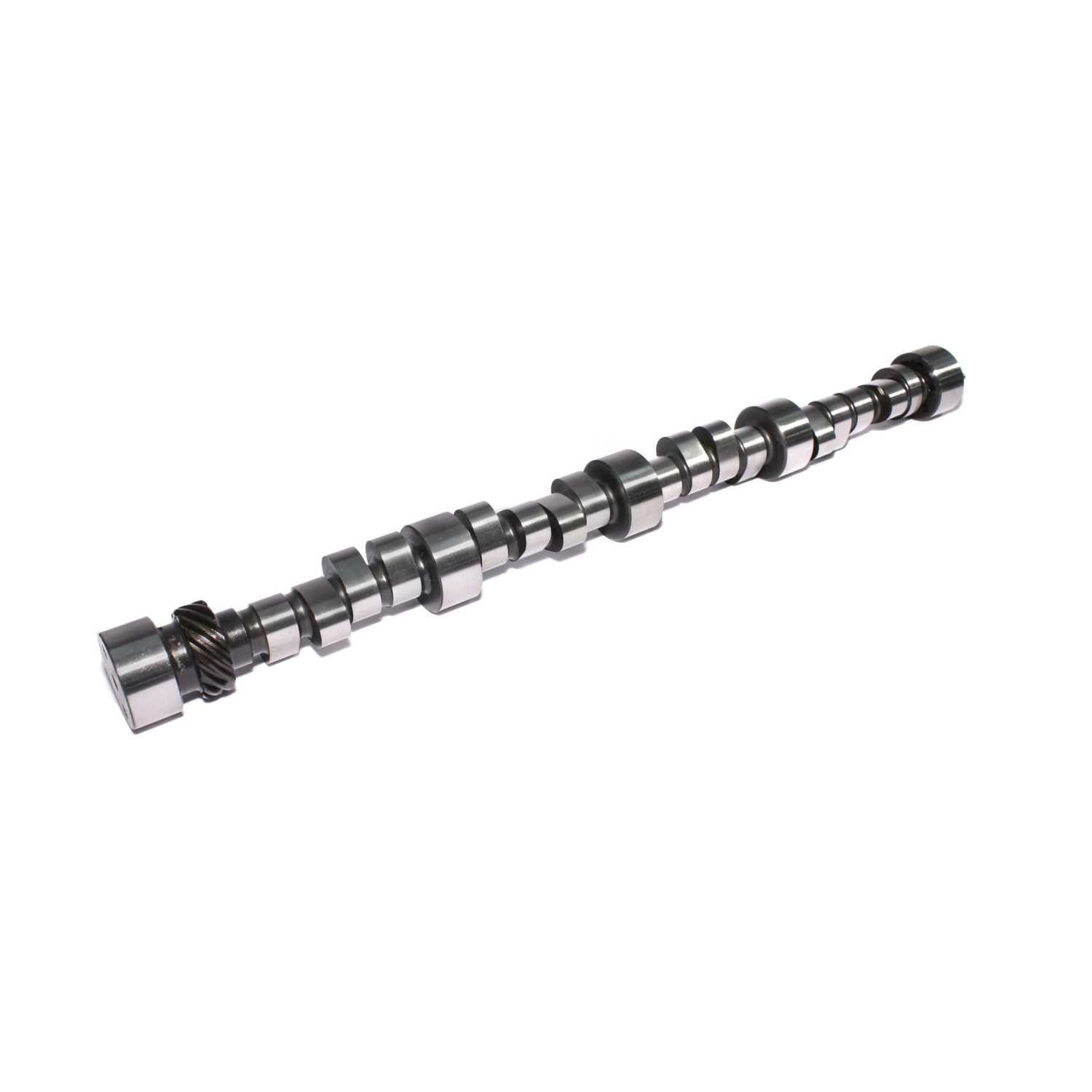

Comp Cams Drag Race 286/294 Solid Roller Cam for Chevrolet Big Block 396-454 - 11-736-9
Super Gas/Super Comp. 5000+ stall or 4 speed, 500+c.i.
Drag Race 286/294 Solid Roller Cam for Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - Drag Race
Usage - Strip
Cam Type - Solid Roller
Grind Number - 324IR-10
Basic Operating RPM Range - 5,000-7,800 R3
Intake Duration at .050 Inch Lift - 286 DD
Exhaust Duration at .050 inch Lift - 294 DD
Advertised Intake Duration - 324 DD
Advertised Exhaust Duration - 332 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.775 IN
Exhaust Valve Lift - 0.748 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Billet Steel
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Lifter Type - Solid Roller
Title - Drag Race 286/294 Solid Roller Cam for Chevrolet Big Block 396-454
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Amazon ASIN - B000P5DAI4
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
