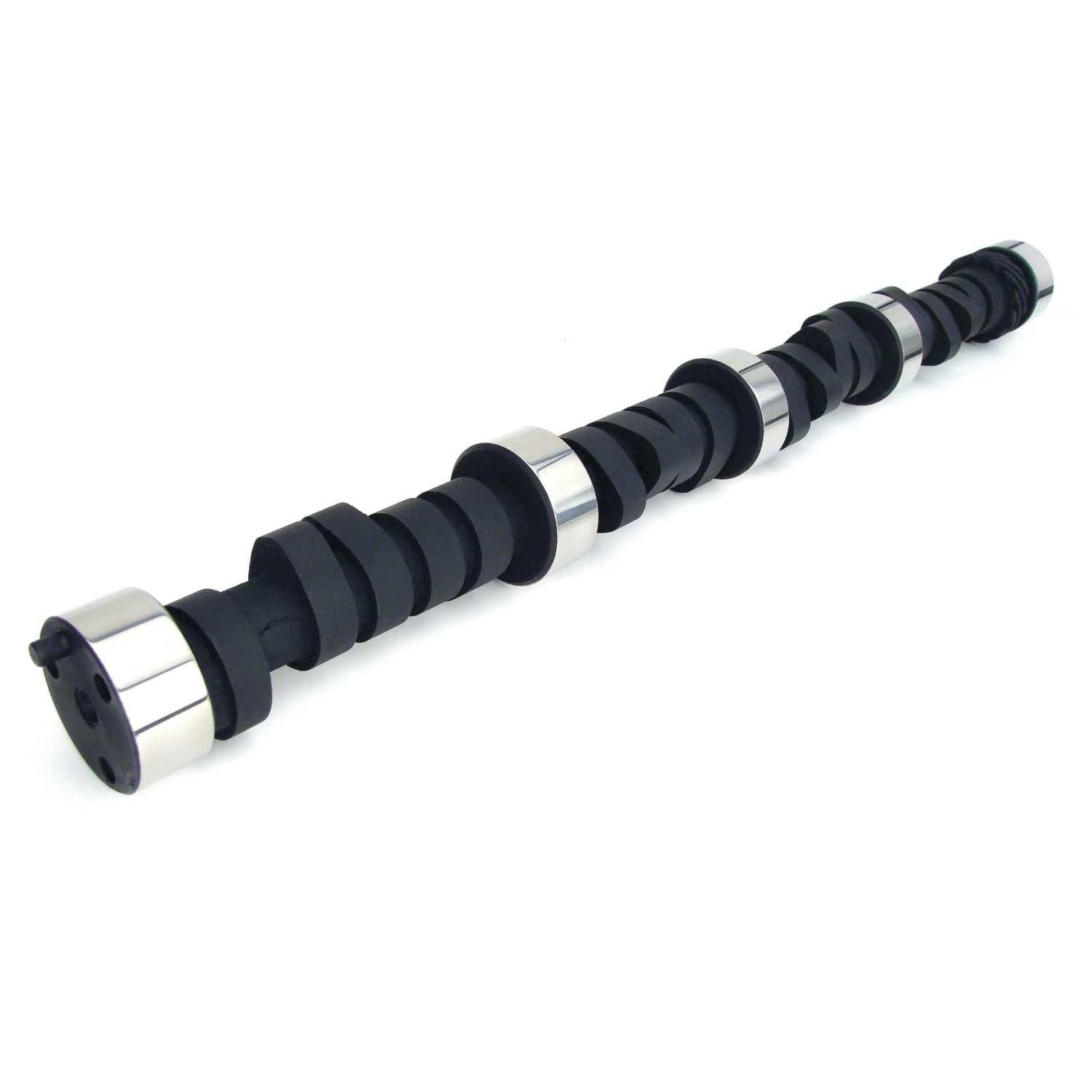

Comp Cams Magnum Marine 280/286 Solid Flat Cam for Chevrolet Big Block 396-454 - 11-607-5
For use in large engine. Flat or hydro. Use tunnel ram. 11.5:1+ compression.
Magnum Marine 280/286 Solid Flat Cam for Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - Magnum Marine
Usage - Marine
Cam Type - Solid Flat Tappet
Grind Number - 320B
Basic Operating RPM Range - 4,500-7500 R3
Intake Duration at .050 Inch Lift - 280 DD
Exhaust Duration at .050 inch Lift - 286 DD
Advertised Intake Duration - 320 DD
Advertised Exhaust Duration - 324 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.638 IN
Exhaust Valve Lift - 0.656 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Cast Iron
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Title - Magnum Marine 280/286 Solid Flat Cam for Chevrolet Big Block 396-454
SK-Kit Upgrade - SK11-607-5
Lifter Type - Solid Flat Tappet
Cam and Lifter Kit Upgrade - CL11-607-5
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
K-Kit Upgrade - K11-607-5
Amazon ASIN - B000P5B5U4
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
