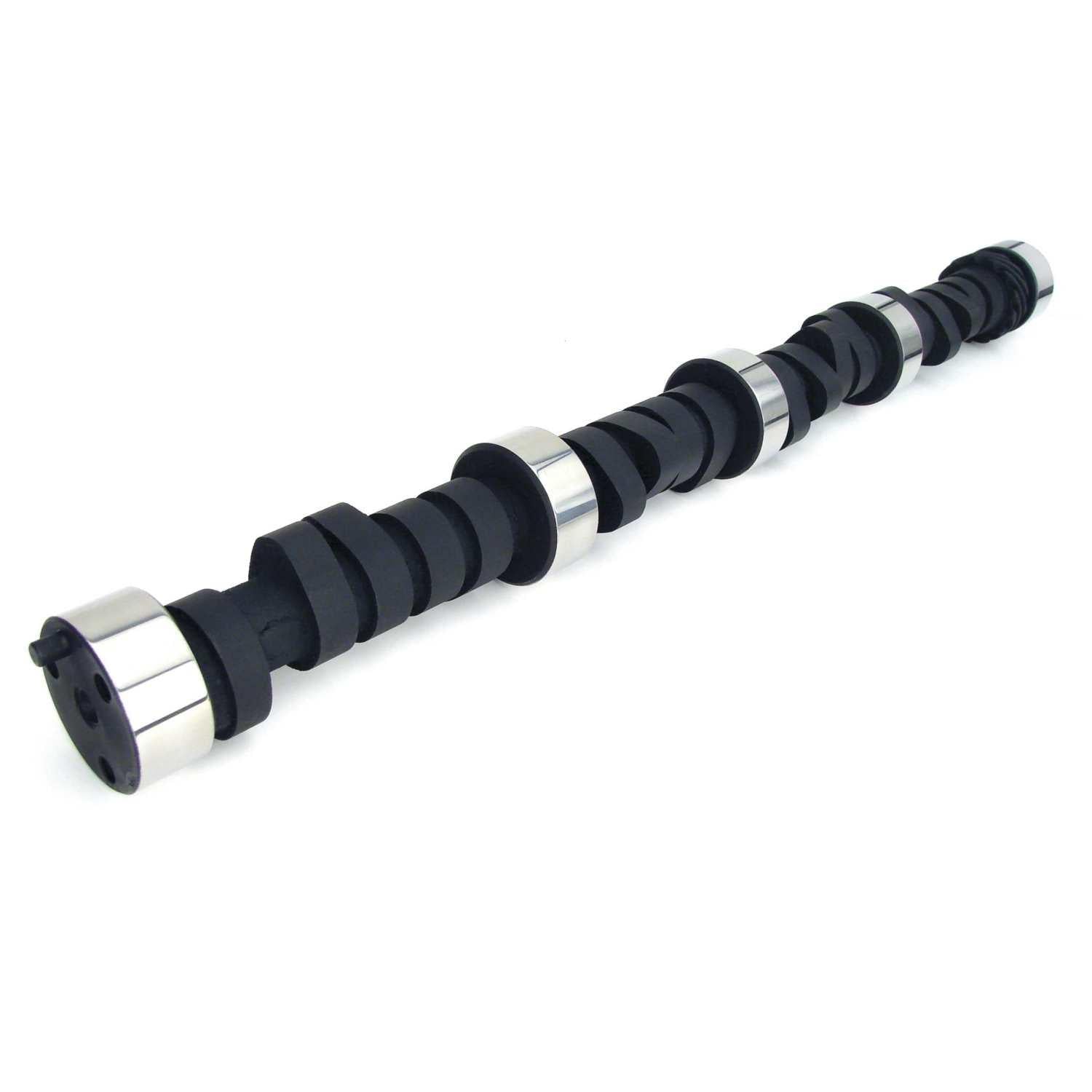

Comp Cams Magnum 248/248 Solid Flat Cam for Chevrolet Big Block 396-454 - 11-219-4
Good for street/strip cars. 3000+ stall or 4 speed. 10:1+ compression, headers and low gears. Very rough idle.
Magnum 248/248 Solid Flat Cam for Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - Magnum
Usage - Street/Strip
Cam Type - Solid Flat Tappet
Grind Number - 294S
Basic Operating RPM Range - 2,500-6,500 R3
Intake Duration at .050 Inch Lift - 248 DD
Exhaust Duration at .050 inch Lift - 248 DD
Advertised Intake Duration - 294 DD
Advertised Exhaust Duration - 294 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.595 IN
Exhaust Valve Lift - 0.595 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Cast Iron
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Cam and Lifter Kit Upgrade - CL11-219-4
K-Kit Upgrade - K11-219-4
Lifter Type - Solid Flat Tappet
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade - SK11-219-4
Title - Magnum 248/248 Solid Flat Cam for Chevrolet Big Block 396-454
Amazon ASIN - B000CEM4YY
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
