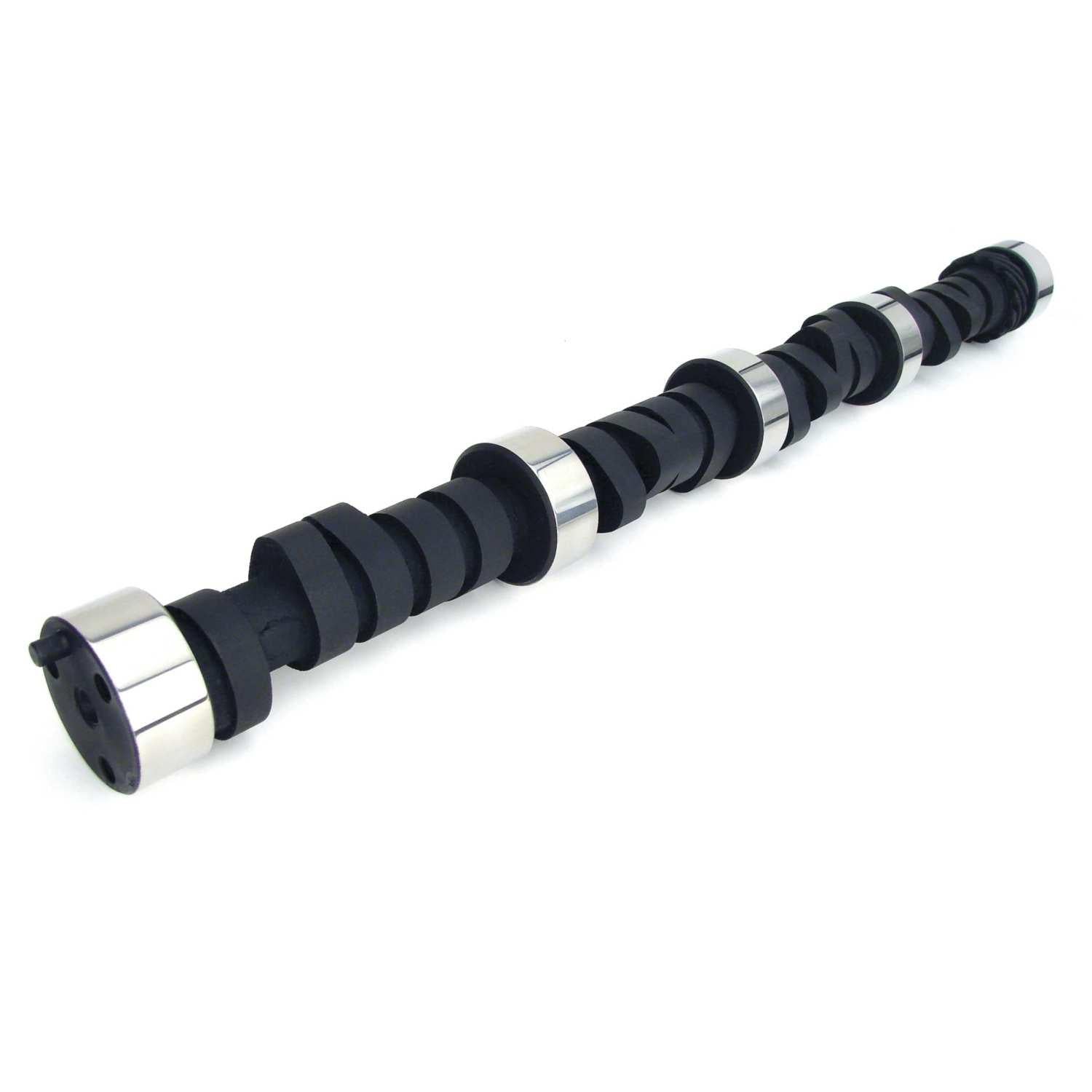

Comp Cams Magnum Marine/Drag Race 256/266 Solid Flat Cam for Chevrolet Big Block 396-454 - 11-604-5
Use in 396-427c.i., heavy car, 3500+ stall and 10.5:1+ compression.
Magnum Marine/Drag Race 256/266 Solid Flat Cam for Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - Magnum Marine
Usage - Marine
Cam Type - Solid Flat Tappet
Grind Number - 294B-8
Basic Operating RPM Range - 3,500-6,500 R3
Intake Duration at .050 Inch Lift - 256 DD
Exhaust Duration at .050 inch Lift - 266 DD
Advertised Intake Duration - 294 DD
Advertised Exhaust Duration - 304 DD
Lobe Separation - 108 DD
Intake Valve Lift - 0.58 IN
Exhaust Valve Lift - 0.605 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Cast Iron
Title - Magnum Marine/Drag Race 256/266 Solid Flat Cam for Chevrolet Big Block 396-454
Lifter Type - Solid Flat Tappet
K-Kit Upgrade - K11-604-5
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam and Lifter Kit Upgrade - CL11-604-5
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
SK-Kit Upgrade - SK11-604-5
Amazon ASIN - B000V9AYB0
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
Lethal Performance is proud to offer the entire line of Comp Cams products!
For more than 35 years, the COMP Cams® mission has never changed: to produce the highest-performing products possible, provide customers with superior service, and to lead the industry in technological development. While the COMP Performance Group™ has grown to multiple companies and hundreds of employees, we still retain the competitive spirit and desire to be the very best that has positioned COMP Cams® as the absolute leader in valve train components.
With COMP Cams®, there is no compromise - you're in first place.
