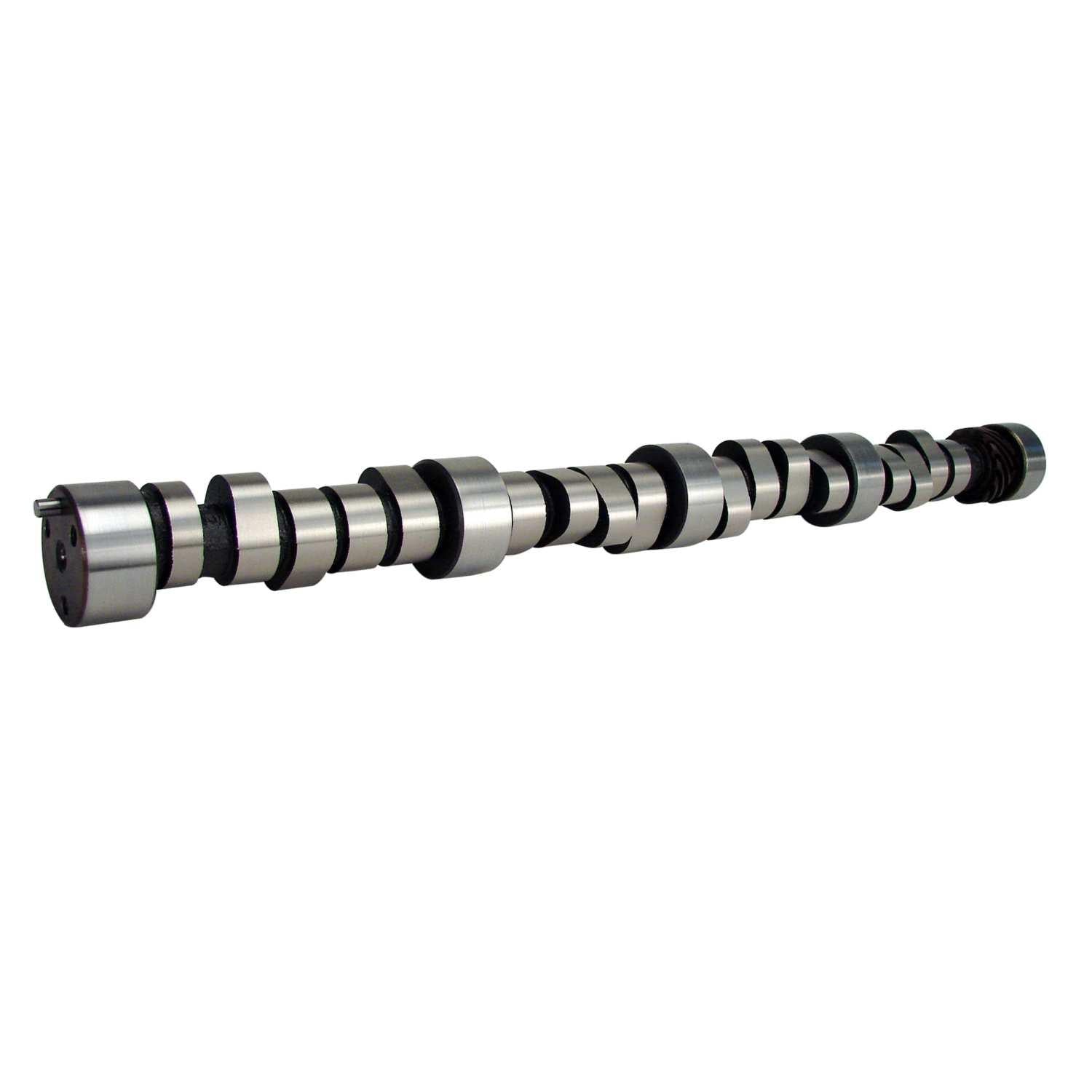

Comp Cams Magnum 232/232 Hydraulic Roller Cam for Chevrolet Big Block 396-454 - 11-450-8
For hot street machines. 2500+ stall, 9.5:1+ compression. Best with headers and aluminum intake. Rough idle.
Magnum 232/232 Hydraulic Roller Cam for Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - Magnum
Usage - Street/Strip
Cam Type - Hydraulic Roller
Grind Number - 290HR
Basic Operating RPM Range - 2,500-6,200 R3
Intake Duration at .050 Inch Lift - 230 DD
Exhaust Duration at .050 inch Lift - 230 DD
Advertised Intake Duration - 290 DD
Advertised Exhaust Duration - 290 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.578 IN
Exhaust Valve Lift - 0.578 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Austempered Ductile Iron
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Cam and Lifter Kit Upgrade - CL11-450-8
K-Kit Upgrade - K11-450-8
Lifter Type - Hydraulic Roller
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade - SK11-450-8
Title - Magnum 232/232 Hydraulic Roller Cam for Chevrolet Big Block 396-454
Amazon ASIN - B000V9ET34
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
