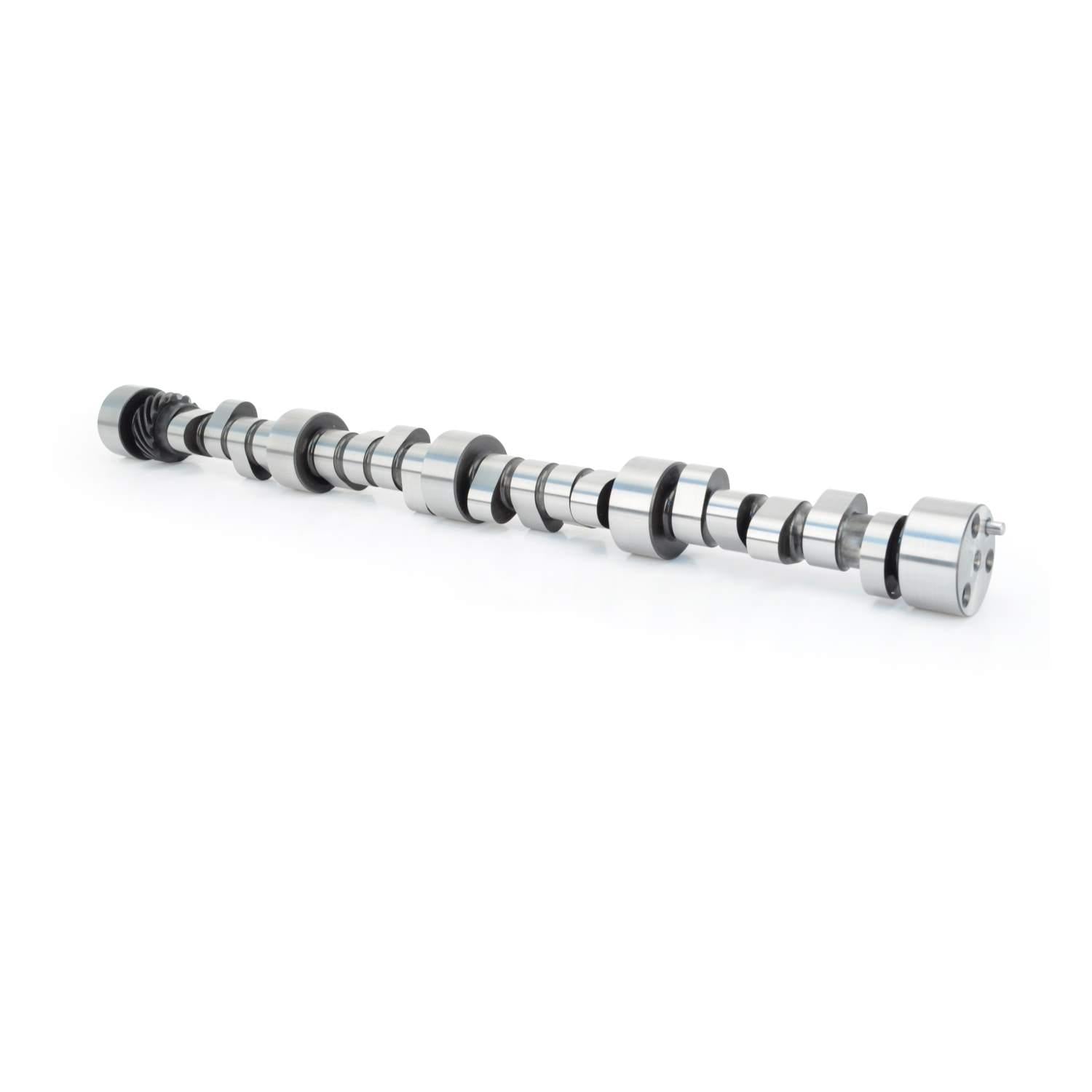

Comp Cams 4-Pattern 229/239 IB 231/241 OB Hydraulic Roller Cam Chevrolet Big Block 396-454 - 11-615-44
Best choice for street 396-454c.i. engines with good cylinder heads. Very wide power range. 2600+ stall.
4-Pattern 229/239 IB 231/241 OB Hydraulic Roller Cam Chevrolet Big Block 396-454
PRODUCT NOTES:
Camshaft Series - 4-Pattern
Usage - Street/Performance
Cam Type - Hydraulic Roller
Grind Number - 281QIO9
Basic Operating RPM Range - 2,400-6,700 R3
Inboard Intake Duration at .050 Inch Lift - 229 DD
Outboard Intake Duration at .050 Inch Lift - 231 DD
Inboard Exhaust Duration at .050 inch Lift - 239 DD
Outboard Exhaust Duration at .050 inch Lift - 241 DD
Advertised Inboard Intake Duration - 281 DD
Advertised Outboard Intake Duration - 283 DD
Advertised Inboard Exhaust Duration - 293 DD
Advertised Outboard Exhaust Duration - 295 DD
Inboard Intake Valve Lift - 0.658 IN
Outboard Intake Valve Lift - 0.661 IN
Inboard Exhaust Valve Lift - 0.644 IN
Outboard Exhaust Valve Lift - 0.648 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Billet Steel
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Lifter Type - Hydraulic Roller
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Title - 4-Pattern 229/239 IB 231/241 OB Hydraulic Roller Cam Chevrolet Big Block 396-454
Amazon ASIN - B00CWZV5SM
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
