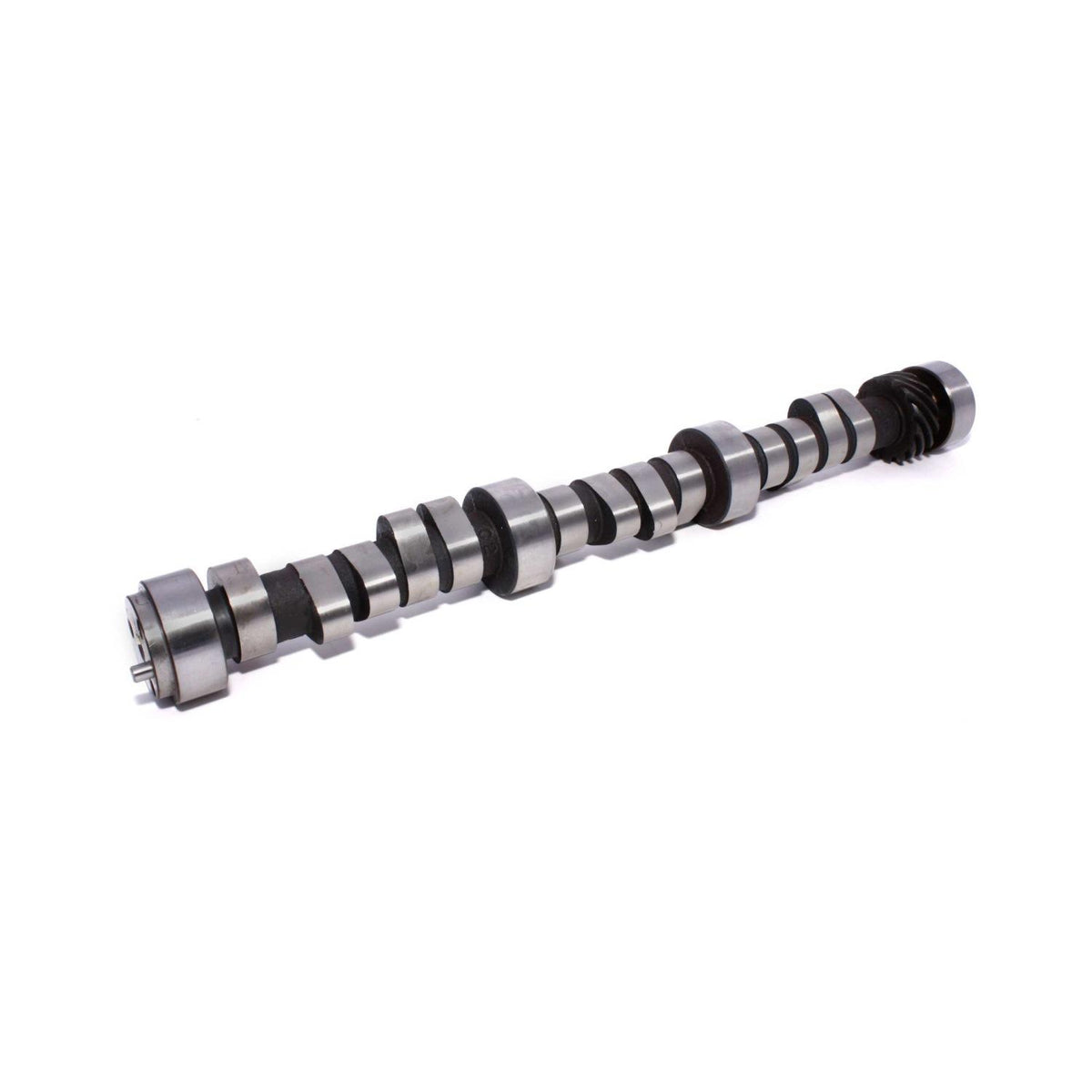

Comp Cams Magnum 224/224 Hydraulic Roller Cam for Chevrolet 262/4.3L - 09-430-8
Limited high performance street use. Needs intake, headers and 2500+ stall, 3.73 to 4.10 gears. Mild rough idle.
Magnum 224/224 Hydraulic Roller Cam for Chevrolet 262/4.3L
PRODUCT NOTES:
Camshaft Series - Magnum
Usage - Street/Strip
Cam Type - Hydraulic Roller
Grind Number - 280HR
Basic Operating RPM Range - 2,000-5,500 R3
Intake Duration at .050 Inch Lift - 224 DD
Exhaust Duration at .050 inch Lift - 224 DD
Advertised Intake Duration - 280 DD
Advertised Exhaust Duration - 280 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.525 IN
Exhaust Valve Lift - 0.525 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Austempered Ductile Iron
Engine Family - Chevrolet 4.3L 262 c.i. 90 Degree 6 Cylinder (1987+) Non-Balance Shaft
SK-Kit Upgrade - SK09-430-8
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam and Lifter Kit Upgrade - CL09-430-8
Lifter Type - Hydraulic Roller
K-Kit Upgrade - K09-430-8
Title - Magnum 224/224 Hydraulic Roller Cam for Chevrolet 262/4.3L
Amazon ASIN - B000VU20U2
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
