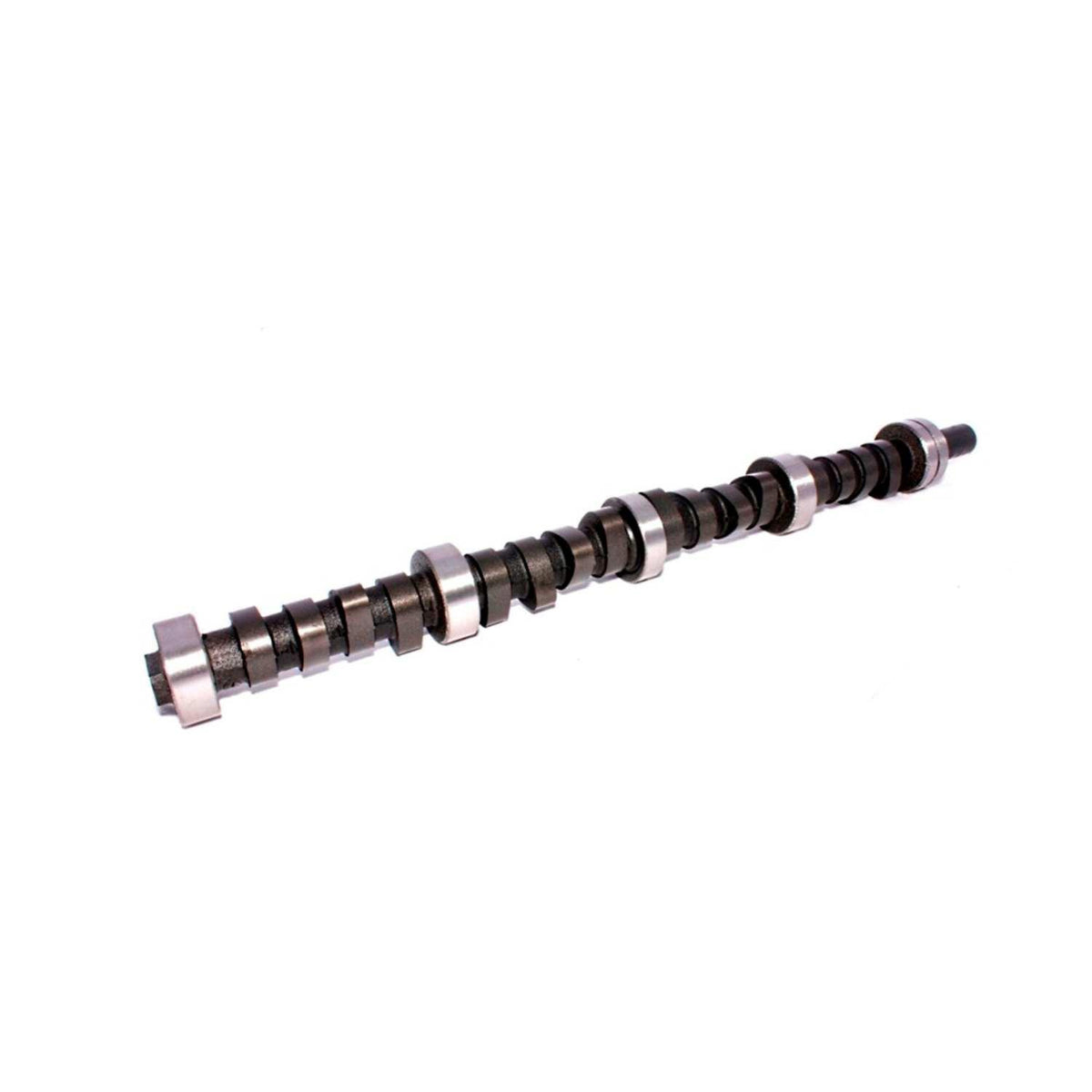

Comp Cams Xtreme Energy 230/236 Hydraulic Flat Cam for AMC 290-401 - 10-216-5
Very strong mid-range and throttle response, 2200+ stall. Rough idle.
Xtreme Energy 230/236 Hydraulic Flat Cam for AMC 290-401
PRODUCT NOTES:
Camshaft Series - Magnum
Cam Type - Hydraulic Flat Tappet
Grind Number - XE274H
Basic Operating RPM Range - 2,000-6,000 R3
Intake Duration at .050 Inch Lift - 230 DD
Exhaust Duration at .050 inch Lift - 236 DD
Advertised Intake Duration - 274 DD
Advertised Exhaust Duration - 286 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.52 IN
Exhaust Valve Lift - 0.523 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Cast Iron
Engine Family - American Motors 290-401 c.i. 8 Cylinder (1966-1991)
Cam and Lifter Kit Upgrade - CL10-216-5
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
K-Kit Upgrade - K10-216-5
Lifter Type - Hydraulic Flat Tappet
SK-Kit Upgrade - SK10-216-5
Title - Xtreme Energy 230/236 Hydraulic Flat Cam for AMC 290-401
Amazon ASIN - N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
