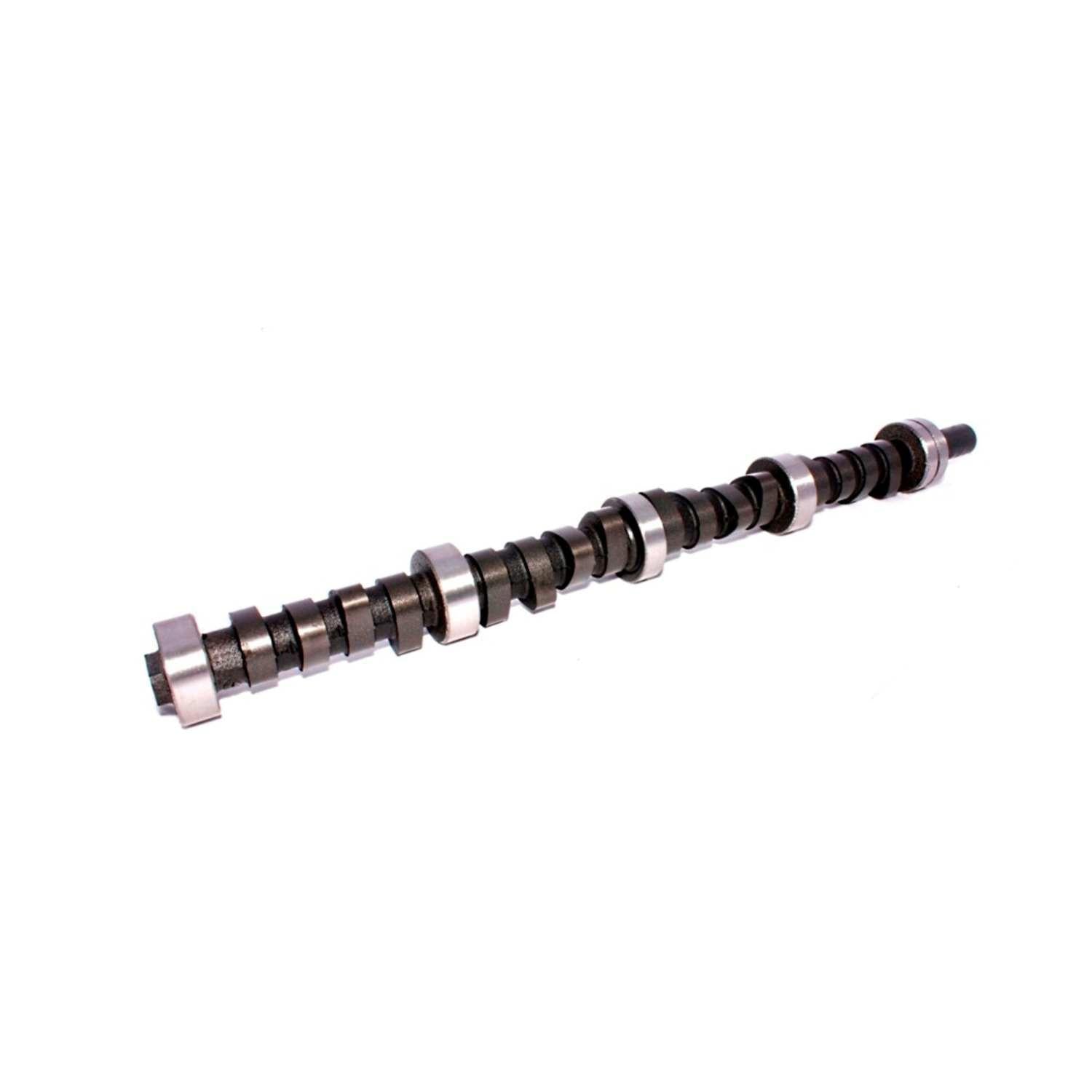

Comp Cams Magnum 253/253 Hydraulic Flat Cam for AMC 290-401 - 10-211-4
Excellent for Pro Street or mild bracket racing. 3500+ stall, 10.5:1 compression, 4.10 gear or lower. Radical idle.
Magnum 253/253 Hydraulic Flat Cam for AMC 290-401
PRODUCT NOTES:
Camshaft Series - Magnum
Usage - Street/Strip
Cam Type - Hydraulic Flat Tappet
Grind Number - 305H
Basic Operating RPM Range - 3,000-7000 R3
Intake Duration at .050 Inch Lift - 253 DD
Exhaust Duration at .050 inch Lift - 253 DD
Advertised Intake Duration - 305 DD
Advertised Exhaust Duration - 305 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.541 IN
Exhaust Valve Lift - 0.541 IN
Lifters Included - No
Valve Springs Required - Yes
Assembly Lubricant Included - Yes
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Cast Iron
Engine Family - American Motors 290-401 c.i. 8 Cylinder (1966-1991)
Cam and Lifter Kit Upgrade - CL10-211-4
K-Kit Upgrade - K10-211-4
Lifter Type - Hydraulic Flat Tappet
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
SK-Kit Upgrade - SK10-211-4
Title - Magnum 253/253 Hydraulic Flat Cam for AMC 290-401
Amazon ASIN - N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
