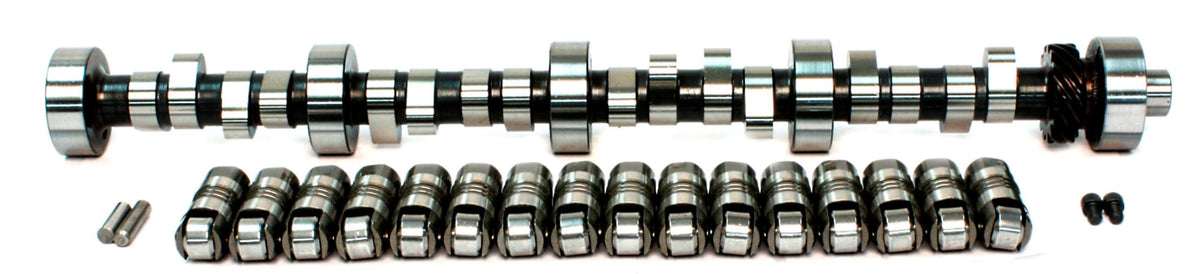

Comp Cams Magnum 224/224 Hydraulic Roller Cam and Lifter Kit for Ford 5.0L - CL35-430-8
Street machine and limited high performance street use. Best with 5 speed or 2200-2500 stall. 3.40 to 4.10 gears, aftermarket intake and headers.
Magnum 224/224 Hydraulic Roller Cam and Lifter Kit for Ford 5.0L
PRODUCT NOTES:
Kit Type - CL-Kit - Cam and Lifter Kit
Camshaft Series - Magnum
Usage - Street/Performance
Cam Type - Hydraulic Roller
Basic Operating RPM Range - 2,500-6,000 R3
Intake Duration at .050 Inch Lift - 224 DD
Exhaust Duration at .050 inch Lift - 224 DD
Advertised Intake Duration - 280 DD
Advertised Exhaust Duration - 280 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.56 IN
Exhaust Valve Lift - 0.56 IN
Lifters Included - Yes
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 1-Bolt
Camshaft Material - Austempered Ductile Iron
Lifter Type - Hydraulic Roller
Timing Chain and Gears Included - No
Valve Stem Seals Included - No
Retainers Included - No
Locks Included - No
Gaskets Included - No
SK-Kit Upgrade - SK35-430-8
Title - Magnum 224/224 Hydraulic Roller Cam and Lifter Kit for Ford 5.0L
K-Kit Upgrade - K35-430-8
Engine Family - Ford 5.0L (1985-2002)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Amazon ASIN - B001R9BV88
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
