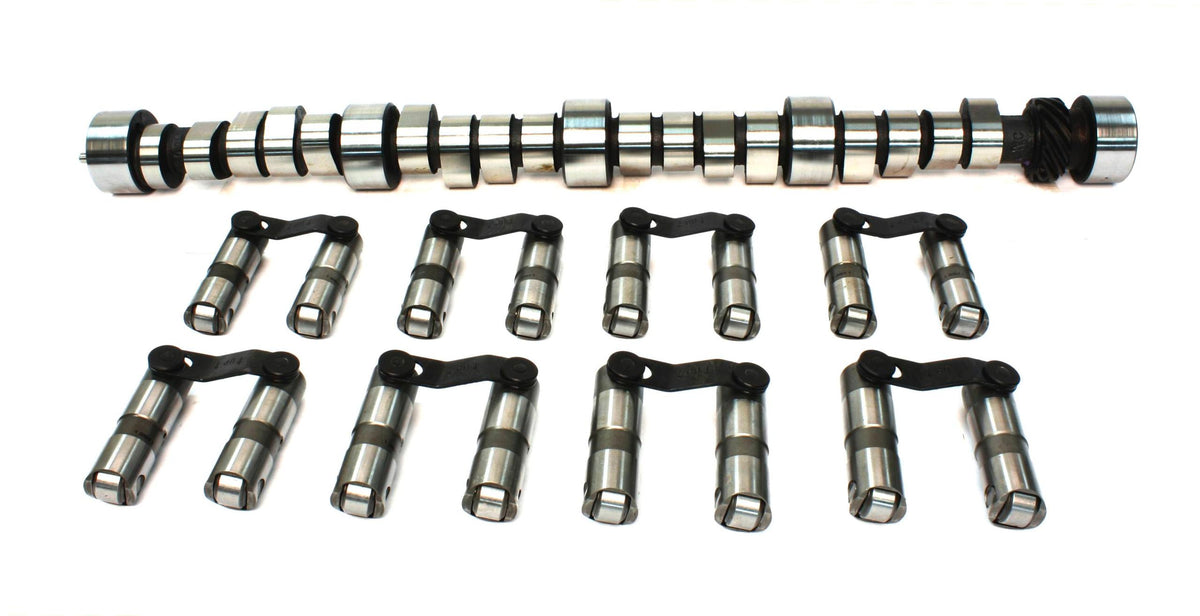

Comp Cams Magnum 224/224 Hydraulic Roller Cam and Lifter Kit Chevrolet Big Block 396-454 - CL11-430-8
Great for street machines. Use headers, 9.5:1+ compression and 2000+ stall. Lower gears in all applications. Rough idle.
Magnum 224/224 Hydraulic Roller Cam and Lifter Kit Chevrolet Big Block 396-454
PRODUCT NOTES:
Kit Type - CL-Kit - Cam and Lifter Kit
Camshaft Series - Magnum
Usage - Street/Strip
Basic Operating RPM Range - 2,000-5,500 R3
Intake Duration at .050 Inch Lift - 224 DD
Exhaust Duration at .050 inch Lift - 224 DD
Advertised Intake Duration - 280 DD
Advertised Exhaust Duration - 280 DD
Lobe Separation - 110 DD
Intake Valve Lift - 0.566 IN
Exhaust Valve Lift - 0.566 IN
Lifters Included - Yes
Valve Springs Required - Yes
Assembly Lubricant Included - No
Camshaft Gear Attachment - 3-Bolt
Camshaft Material - Austempered Ductile Iron
Timing Chain and Gears Included - No
Valve Stem Seals Included - No
Retainers Included - No
Locks Included - No
Gaskets Included - No
Engine Family - Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
California Proposition 65 - WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Title - Magnum 224/224 Hydraulic Roller Cam and Lifter Kit Chevrolet Big Block 396-454
Amazon ASIN - B000P5BK5Y
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? - Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? - Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles? - No
C.A.R.B. Exemption Reason - N/A
C.A.R.B. E.O. Number - N/A
