The DYAD DS (Drive System) multi-disc clutch design has been developed to meet the needs of modern high-end vehicles. Today’s technology has allowed for engine torque levels up to 1300 ft /lbs and still be driven every day. Drivers need a clutch that can offer; smooth engagement, quiet operation, light pedal, and high-end holding capacity. The DYAD DS offers that and more!
The Definition of DYAD: “\dy ad\ Two units treated as one; a couple; a pair, or combining power of two.”
- No complicated setup or adjustments required
- Fully dampened clutch system developed for vehicles with extreme power levels
- Patented ball bearing pressure plate
- Patented multi-disc floating disc and drive disc design
- Quiet, positive drive floater
- Smooth engagement and light pedal effort
- High torque capacity up to 1300 ft/lbs at the flywheel
- Precision balanced
- Greater longevity
- ARP fasteners
- Excellent driver control
- Comes preassembled for your convenience
- Specification card included!
| Part Number |
04114805 |
| Input Shaft Spline (Inches) |
1-1/8-26 |
| Size Metric |
266.7 |
| Size Inches |
10.5 |
| Ring Gear Tooth Count |
164 |
| Ring Gear O.D. |
14.215 |
| Counter Balance |
0 IN/OZ |
| Includes |

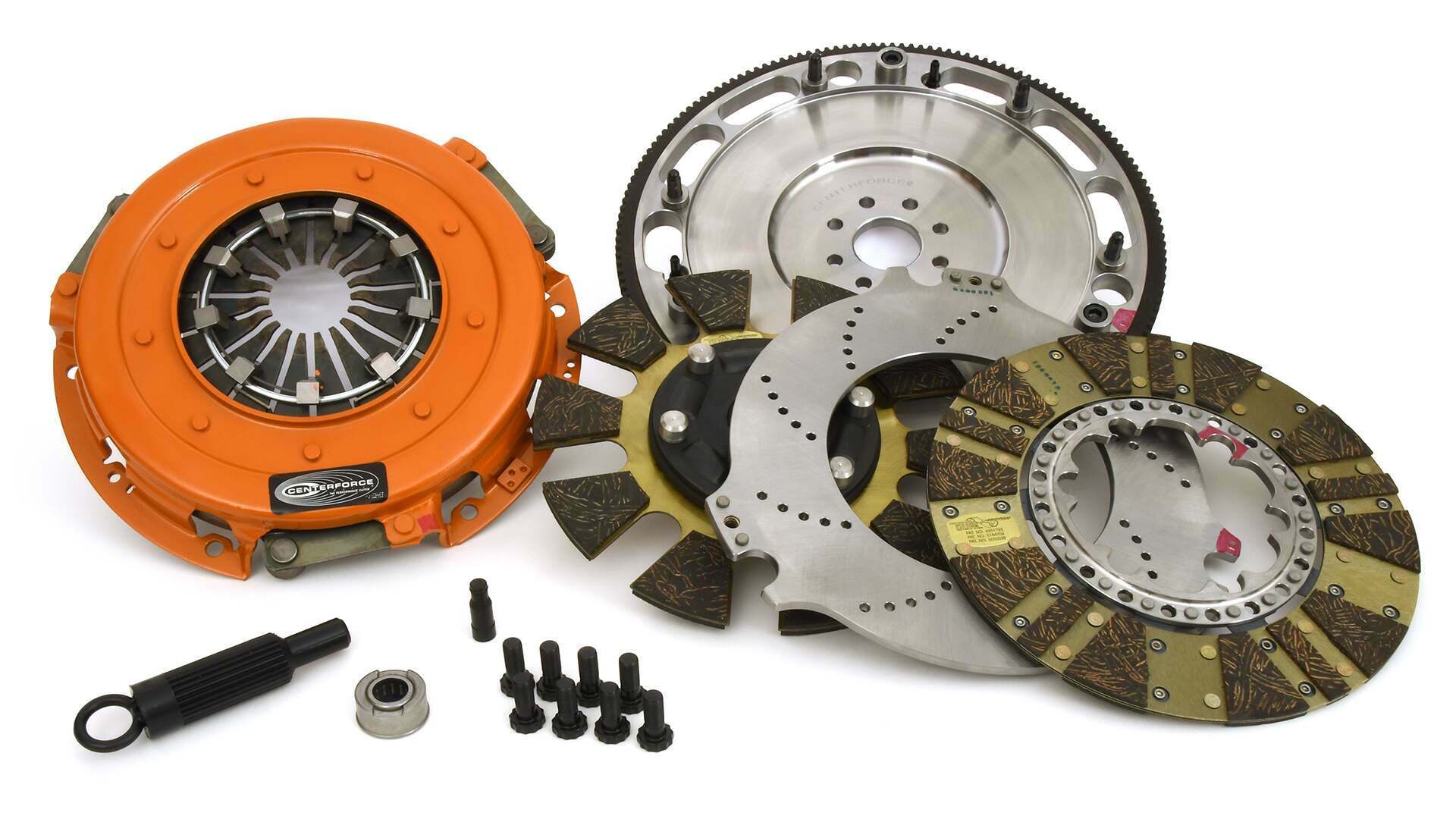

Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing |
NOTE: Requires 26 spline input shaft!!! All 96-2010 Mustangs come factory with 10 spline input shafts. 2011+ Mustang GT come factory qith 23 spline input shafts.
NOTE #2: Requires 8 bolt crank shaft. 96-04 Cobra's/Mach 1 (Manual trans) and 2011+ Mustang GT all have factory 8 bolt crank shafts. Most 96-2010 Mustang GT's have a 6 bolt, with the exception being SOME late 99-2000 Mustang GT's that came with 8 bolt crank shafts. Verify crank shaft bolt pattern before placing order.
