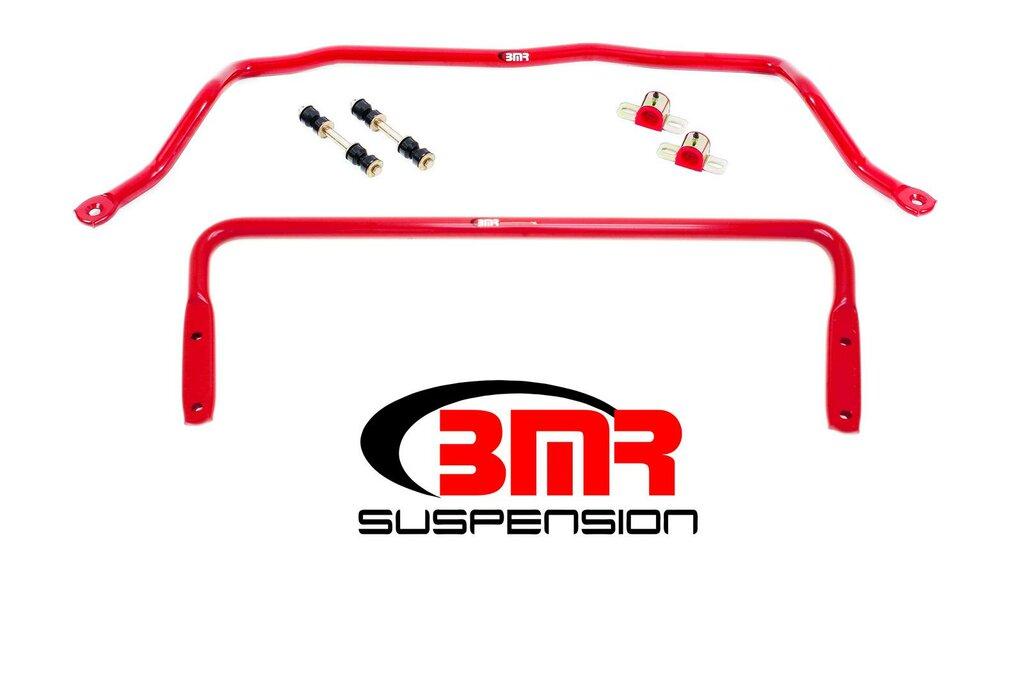

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspension’s SBP006 sway bar package was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. The package consists of BMR’s SB006 front sway bar and XSB003 rear Xtreme Antiroll Bar.
SB006
The SB006 is manufactured from heavy-duty, solid 32mm bar stock, and is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection..
BMR Suspension designed the SB006 sway bar for street performance, autocross, and road race applications. The large adjustable sway bar’s three positions give you the versatility to drive to and from the road course or autocross and still out handle the competition with the same sway bar. The SB006 front sway bar gives you a 99% increase in sway bar rate. These rate increases and adjustability allow you to fine-tune the handling characteristics of your B-body so you can drive harder through corners with minimal body roll. The SB006 attaches to your B-body with 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. This allows for more sway bar control, and more control equals better handling.
XSB003
The XSB003 is manufactured from heavy-duty, solid 38mm bar stock, the XSB003 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection
BMR Suspension designed the XSB003 sway bar for street performance, autocross, and road race applications. The large adjustable sway bar’s three positions give you the versatility to drive to and from the road course or autocross and still out handle the competition with the same sway bar. The rate increase allows you to fine-tune the handling characteristics of your B-body so you can drive harder through corners with minimal body roll. The XSB003 attaches to your B-body with 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. This allows for more sway bar control, and more control equals better handling. When performance is a must, rely on BMR Suspension!
BMR Suspension’s SBP006 sway bars are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 3-4 hours. Proudly made in the U.S.A.!
- Fits 1991-1996 GM B-body
- Designed for street performance, autocross, and road race applications
- Dramatically reduces body roll
- 99% increase in sway bar rate (depending on year and model)
- Cold formed to better resist torsional fatigue
- Manufactured from solid 32mm heavy-duty bar stock for increased strength (front)
- Manufactured from solid 38mm heavy-duty bar stock for increased strength (rear)
- 88-durometer, greasable polyurethane bushings
- Durable powdercoat finish
- 3-4-hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.
