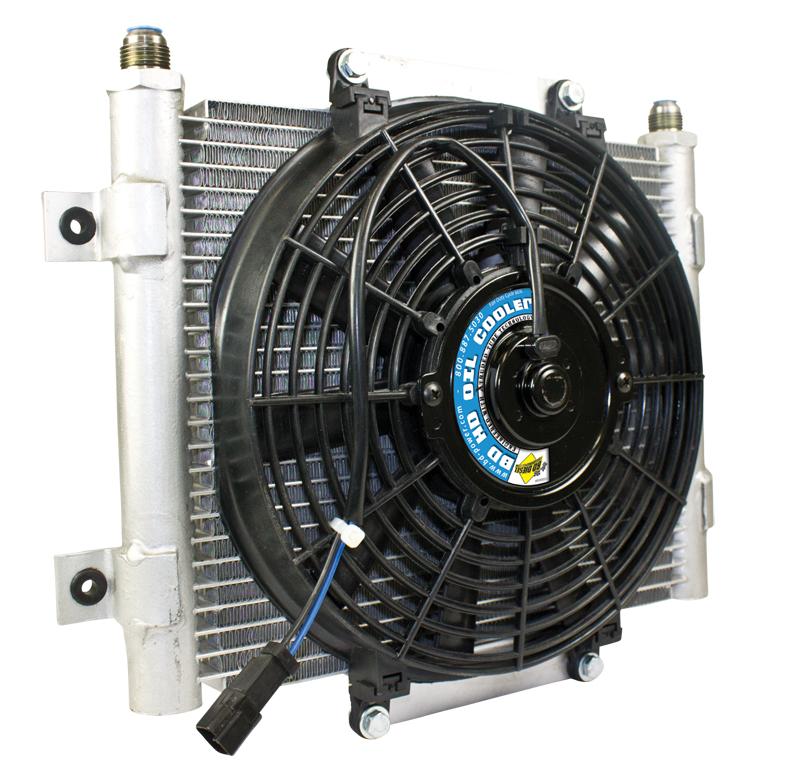

BD Diesel Bd Xtrude Transmission Cooler With Fan - Complete Kit 1/2In Lines - 1030606-1/2
22% more cooling over other designs

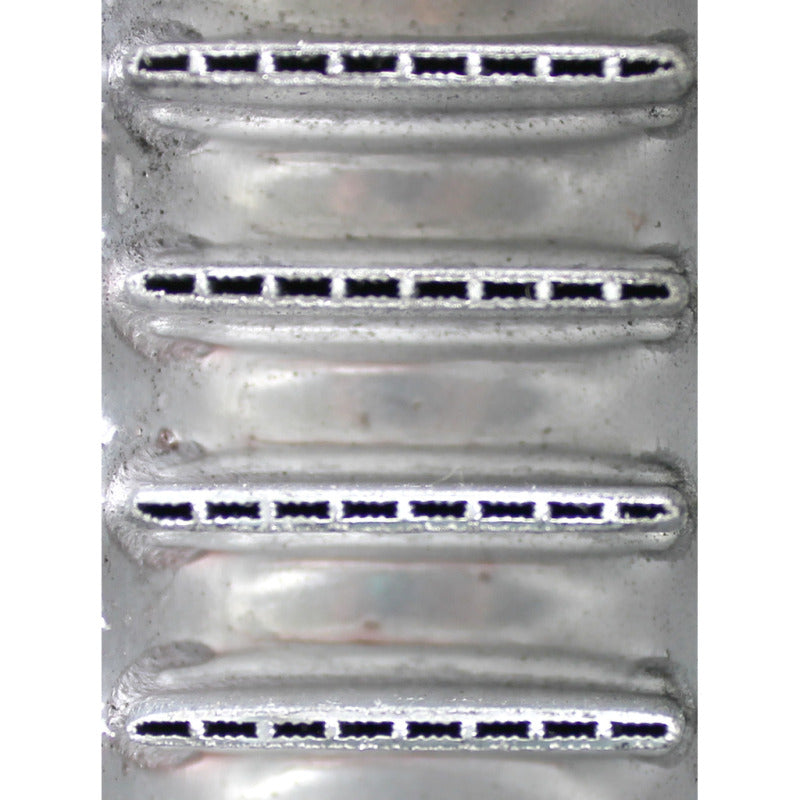

200 Micro Extruded passages
Our goal is to be an innovative company and a world class manufacturer that distributes products Worldwide for North American Diesel vehicles.
Our goal is to be an innovative company and a world class manufacturer that distributes products Worldwide for North American Diesel vehicles.
The pre-wired loomed harness with fuse and relay comes with plug-in connectors
Dodge 47RH / 47RE / 48RE / 68RFE - 1/2-inch Cooler Lines
Ford 5R110/6R140 - 1/2-inch Cooler Lines)

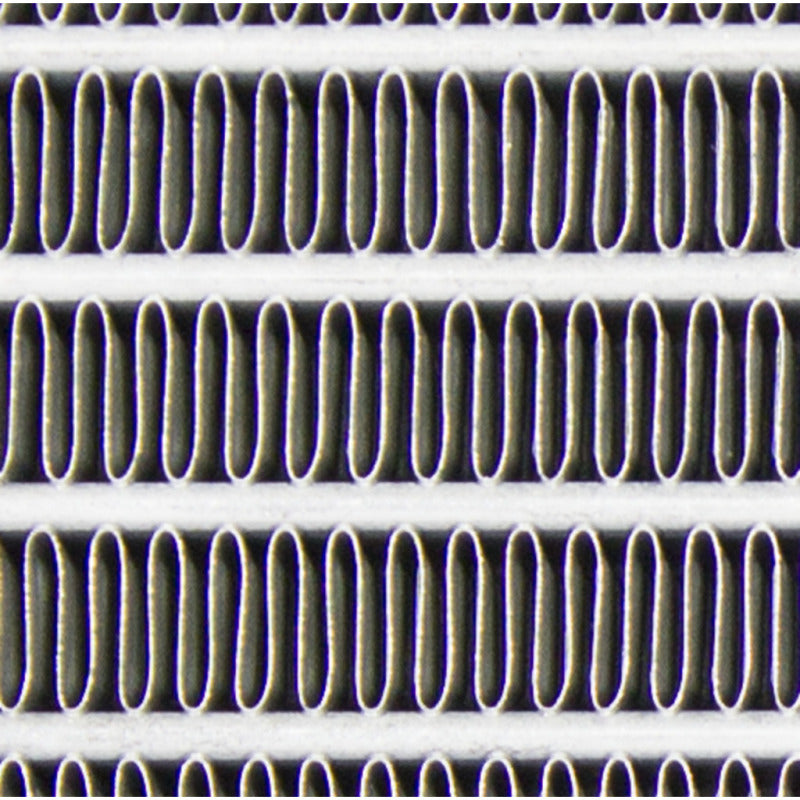

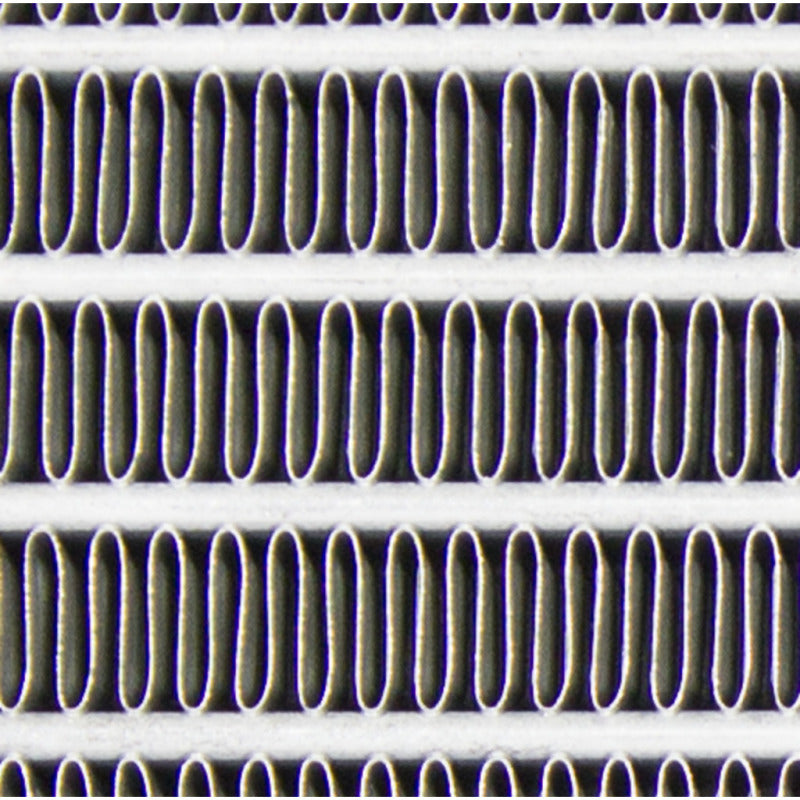

Large surface area to transfer heat for external air flow cooling
Turbulent oil flow design promotes a more complete cooling
Large 5/8-inch ports prevents inlet/outlet restriction
Furnace brazed rails have been tested to 300psi of pressure
Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
33,930 BTU/HR and in excess of 30,000 GVW!

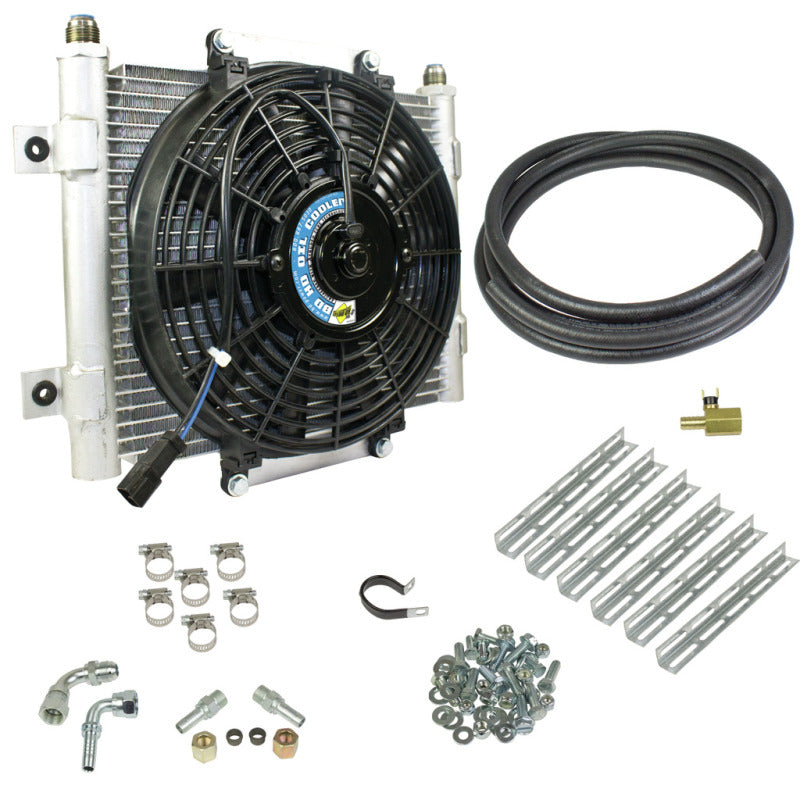

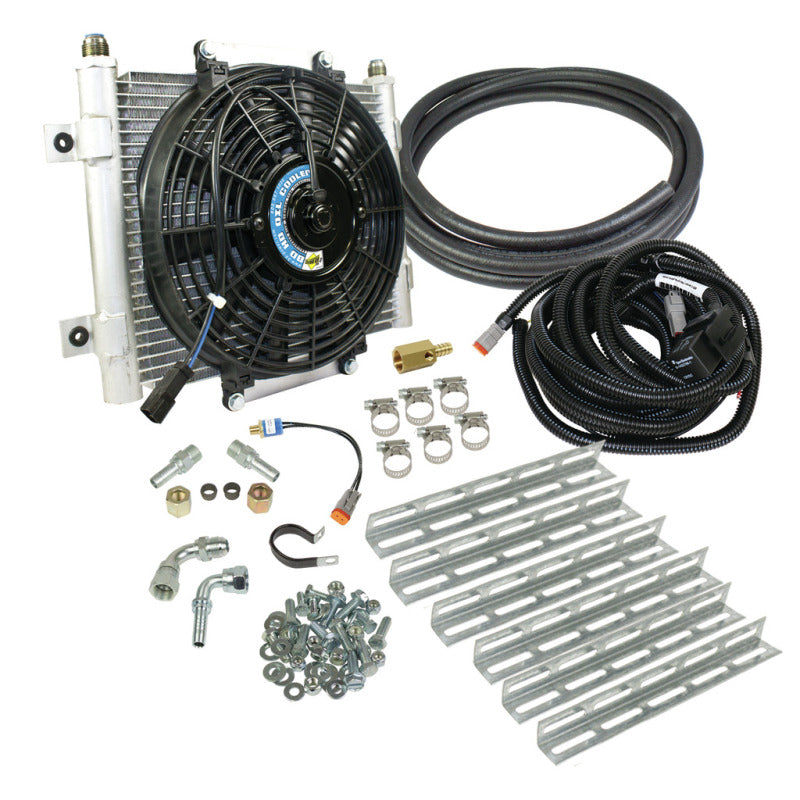

Kits complete with all fittings, clamps, hoses and hardware

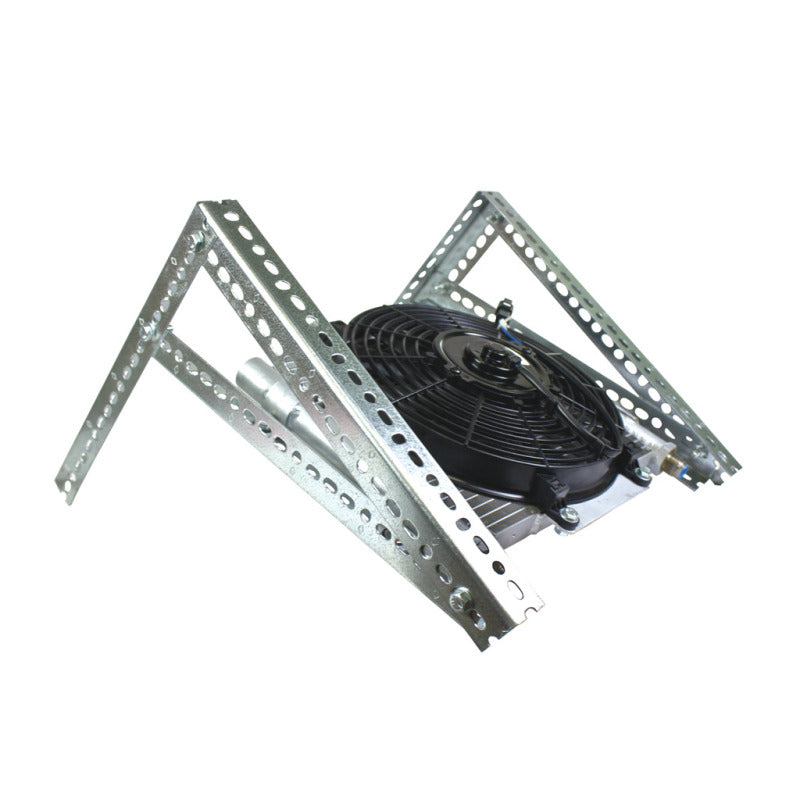

Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
