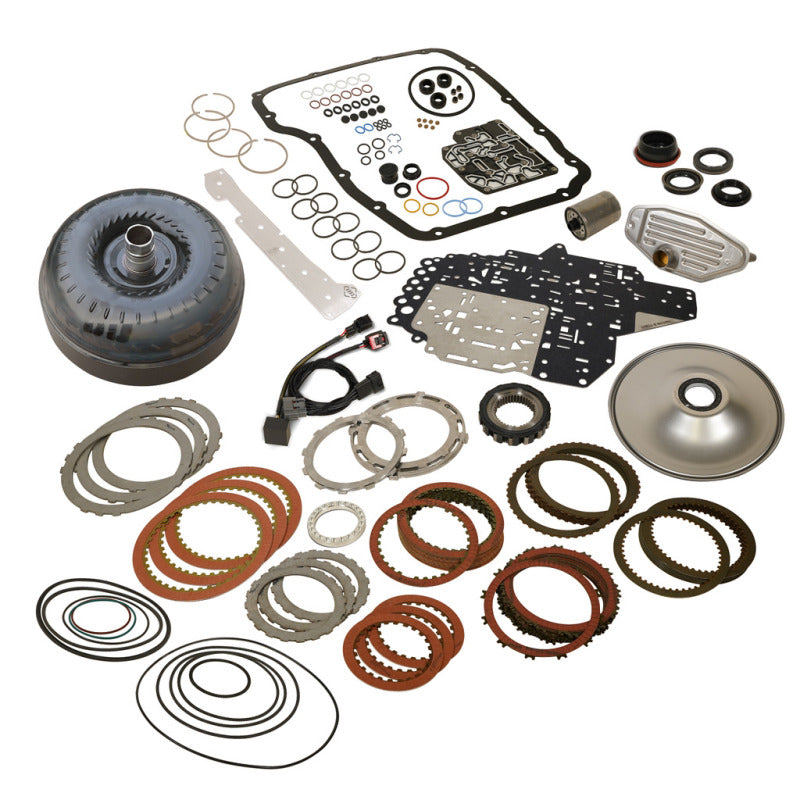

BD Diesel Bd Build-It Dodge 68Rfe Kit 2007.5-18 Stage 4 W/Torque Converter (2007-2018 Ram 2500, Ram 3500, 2500, 3500) - 1063025
Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own transmission rebuilds. Not all multi-disc converters are created equal and with BD's ProForce 3D, less is more. Our in-house CNC machined billet cover is designed to prevent warping and improper balancing. With our cover design, we were able to increase strength while maintaining the factory height. We have engineered the clutch piston and damper assembly for increased strength, while retaining smooth and reliable vibration damping. With self-centering trapezoid clutch teeth design, our clutch packs ensure proper alignment and less wear resulting a longer converter life cycle.
BUILD-IT KIT:
Our goal is to be an innovative company and a world class manufacturer that distributes products Worldwide for North American Diesel vehicles.
Our goal is to be an innovative company and a world class manufacturer that distributes products Worldwide for North American Diesel vehicles.
Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel
Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
Qty 15: OD Clutch Friction, OD Clutch Steel
Filter - Pan, Spin On
Pump Cover
Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
Stiffer Billet Intermediate Reaction Plate, Billet Over Drive/Rev Reaction Plate
Billet 4C Spring Retaining Ring
Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack
Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External
O-Ring - pump Cover
TORQUE CONVERTER:
Enhanced Stall - Street/Towing applications
HD springs absorb shock of engagement
Increased clutch count
Stamp forged 1-piece cover
Eliminates warpage from clutch heat
Taller cover can be rebuilt more often
Heavy duty accumulator plate to prevent accumulator blowout
Trapezoid teeth design
Furnace brazed turbine fins for improved fluid coupling efficiency
Engineered tighter tolerances
Self-centering trapezoid teeth design increases contact decreases wear and chatter
Thrust bearings - not plastic thrust washers
Riveted piston ensures alignment &
eliminates vibration or embrittlement from welding
Cast stator designs maximizes torque
New sprag components ensure long term durability
Reduced overall weight by 12lbs compared to competitors
Free shipping for returning core! (details included with product)
Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Upgraded One Way Clutch/Sprag
Over Drive clutches 17% increase and Under Drive clutches 20% increase
Qty 2: Check Balls 1/4in
