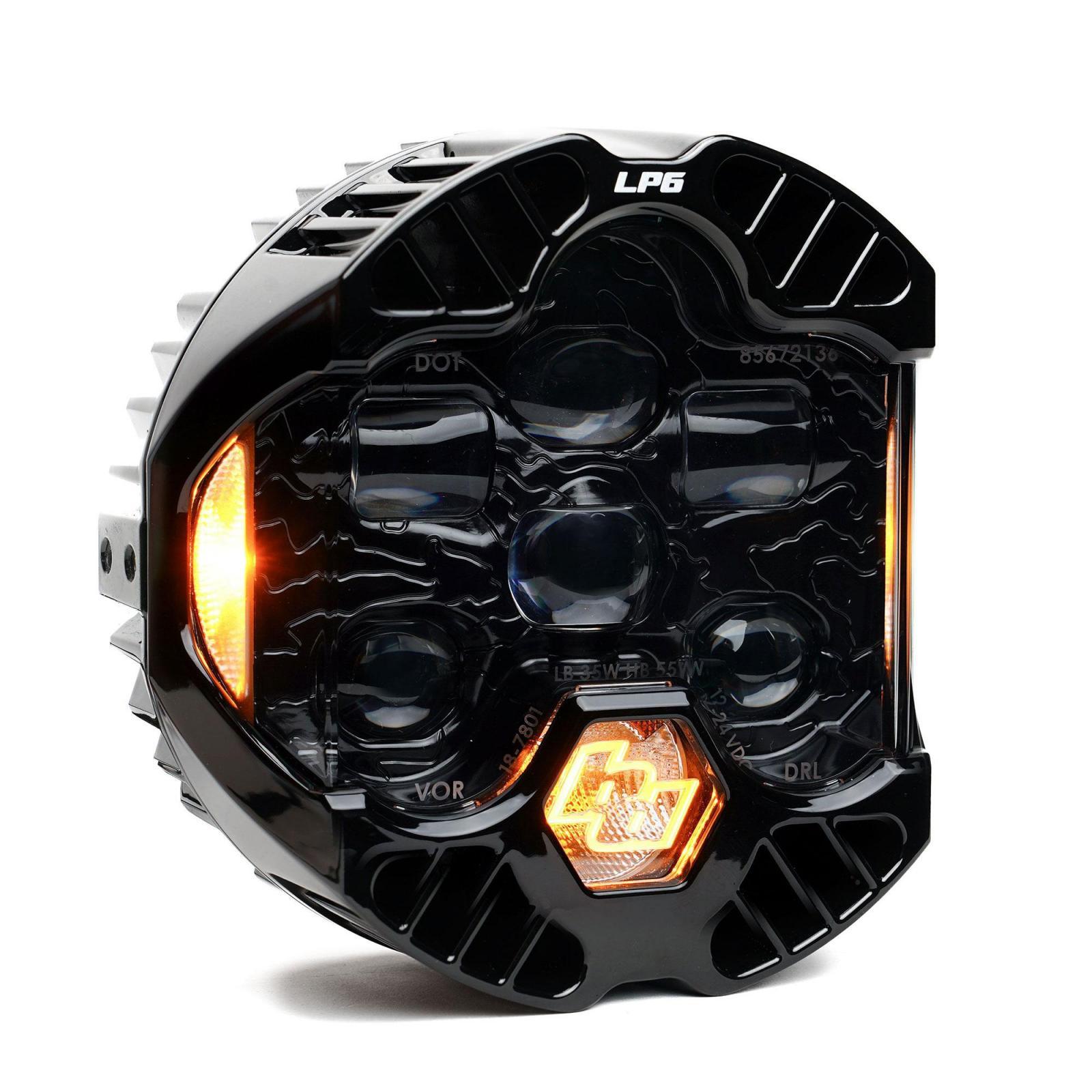

Baja Designs DOT LP6 LED Headlight Replacement Universal (Amber) - 18-0002
Upgrade your ride with the Baja Designs DOT LP6, our first-ever road-legal LED headlight replacement. Built on the foundation of the race-proven LP6 Pro off-road light, the DOT LP6 is engineered for on-road use and fully compliant with FMVSS 108 standards for both automotive and motorcycle applications.
This premium LED headlight offers integrated high and low beam functions, delivering exceptional performance and reliability on any road.
Choose between clear or amber daytime running lights to customize your vehicle's look.
With universal and vehicle-specific mounting options, the DOT LP6 provides a perfect fit for your setup.
Backed by Baja Designs' 30-Day Satisfaction Guarantee and Lifetime Limited Warranty, the DOT LP6 is the ultimate combination of rugged durability, style, and DOT road-legal usability.
Please Note: uService is NOT a feature of DOT products.
If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.
Features:
- Low and High Beam functionality
- Daytime running lights for daytime safety
- Low beam 3,480 raw lumens / 42,568.7 candela
- High beam 5,280 raw lumens / 62,611.5 candela
Note: This single light does not come with a wiring harness or mounting brackets. You will need to purchase separately the appropriate harness PN:640172 and universal mounting brackets are available within our LP9/LP6 parts bag PN:
Kit Includes:
- (1x) DOT LP6 Clear DRL or Amber DRL
- Mounting Hardware
The Baja Designs Advantage:
- Satisfaction Guarantee 30-Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- ClearView All the Light, Right Where You Need It
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Safely Driving LEDs at 100 Percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Dimensions:
- Depth (in.): 3.2
- Height (in.): 6.5
- Length (in.): 6.5
Specifications:
- Description: DRL Color: Amber; DRL: 5W; Candela: 42,568 (Low) 62,611 (High)
- Voltage: 10.5 to 32V
- Wattage (W): Single Lamp at 13.8V; 26W (L) 40W (H)
- Brightness (Lumens): 3,480 (Low) 5,280 (High)
- Beam Pattern: Low Beam: 10Lux out to 50meters (Standard Spec for DOT Headlights)
- Wiring Harness Included: No
- Amperage Rating (A): 1.8A (L) 2.8A (H)
Standards & Compliance:
- Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing); FMVSS 108 for automotive and motorcycle requirement
- Standards/Compliance (Impact Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
- Standards/Compliance (Water Resistance): IK10 Compliant (Mechanical Impact Testing)
