Baja Designs Squadron Sport A-Pillar Kit fits 21-On Ford Raptor Baja Designs - 448070
Our Ford Raptor (21-On) A-Pillar kit is a turn-key solution for you to get performance lighting on your truck! This kit is perfect for anyone that is burning the midnight oil off-roading, traveling, or working.
This kit includes everything that you will need and doesn't require any modifications to your truck. The wiring harness is designed to work with the up-fitter switches in Ford Raptors.
Baja Designs Features:
- Satisfactions Guarantee30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications(per light):
- Lumens: 3,150 Utilizing 4 LEDs
- Wattage/Amps: 26W / 2A
- Dimensions: 3.07 Inch x 2.77 Inch x 3.07 Inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Applications:
2021 Ford Raptor

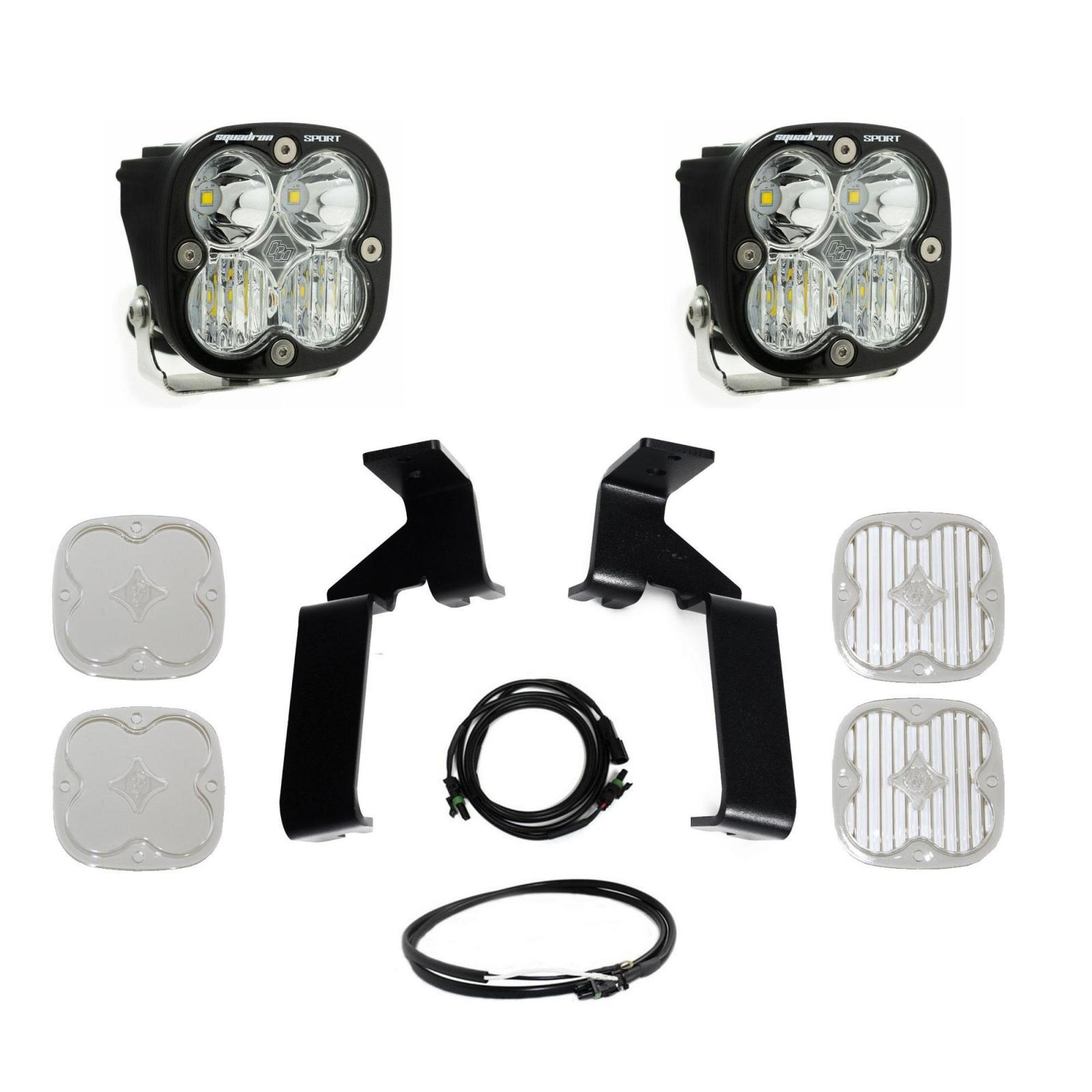

Included:
- x2 Squadron Sports in Driving Combo
- x2 A-Pillar Brackets
- x1 55 Inch Wiring Harness Splitter
- x1 Upfitter Wiring Harness
- x2 Spot Lens
- x2 Wide Cornering Lens
- All necessary hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
