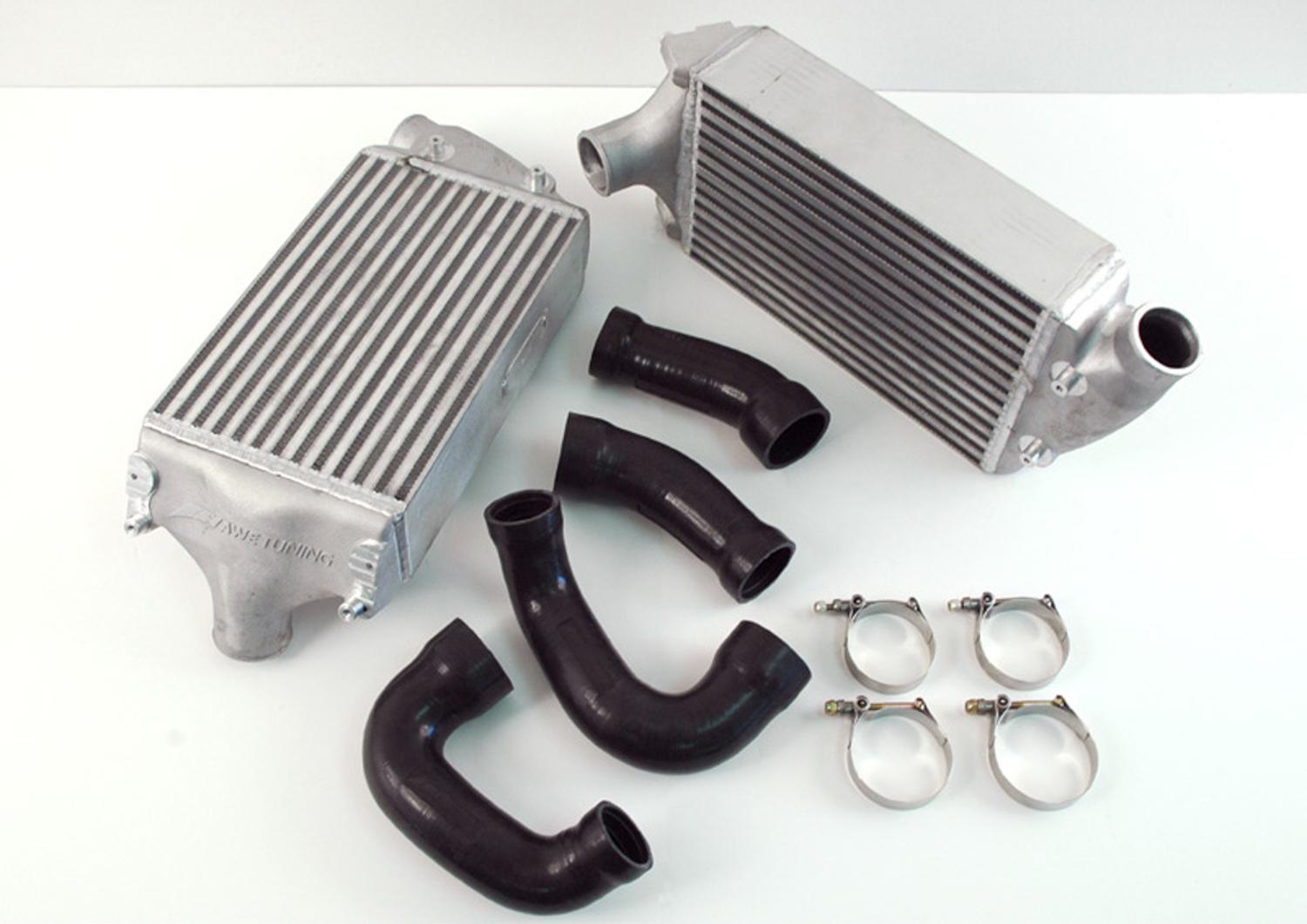

AWE Tuning Porsche 997.2TT Performance Intercoolers - 4510-11044
During development of AWE Tuning's 750R Turbo Kit for the 997.2TT, we
experienced excessively high intake air temperatures. Since an OEM option
was not available, and our power goals were well north of 700hp, we
undertook the task to construct a completely new intercooler system. As
with all AWE Tuning Intercoolers, a cast end tank was designed in house
using sophisticated CAD (Computer Aided Design) and CFD (Computational
Fluid Dynamics) software. Once the end tanks were cast by the foundry, they
were then machined on our CNC mill, welded to specially designed cores, and
then power tested and refined on our chassis dynamometer.
Compared to stock, the AWE Tuning Porsche 997.2TT Performance Intercoolers
cores are 37% larger (422 cubic inches vs 308 cubic inches). In contrast to
the stock cores, AWE Tuning Porsche 997.2TT Performance Intercoolers are a
high flow bar and plate style and are built to our charge row and fin count
specs. These specifications resulted in improved intake temperatures and
improved drop pressure resistance through the core. Considering that
extremely little trimming is involved to fit'such effective units to the
car, this is a huge engineering feat.
• Efficient bar/plate core style
• Cast and machined end tanks for optimized air flow
• Thick silicone boost hoses with proper profile where they mate to turbo
• T-bolt clamps for extreme clamping force
• Direct plug and play install that is easily reversible
• Lower IATs
• Dyno verified max gains of 23 crank hp and 17crank tq
