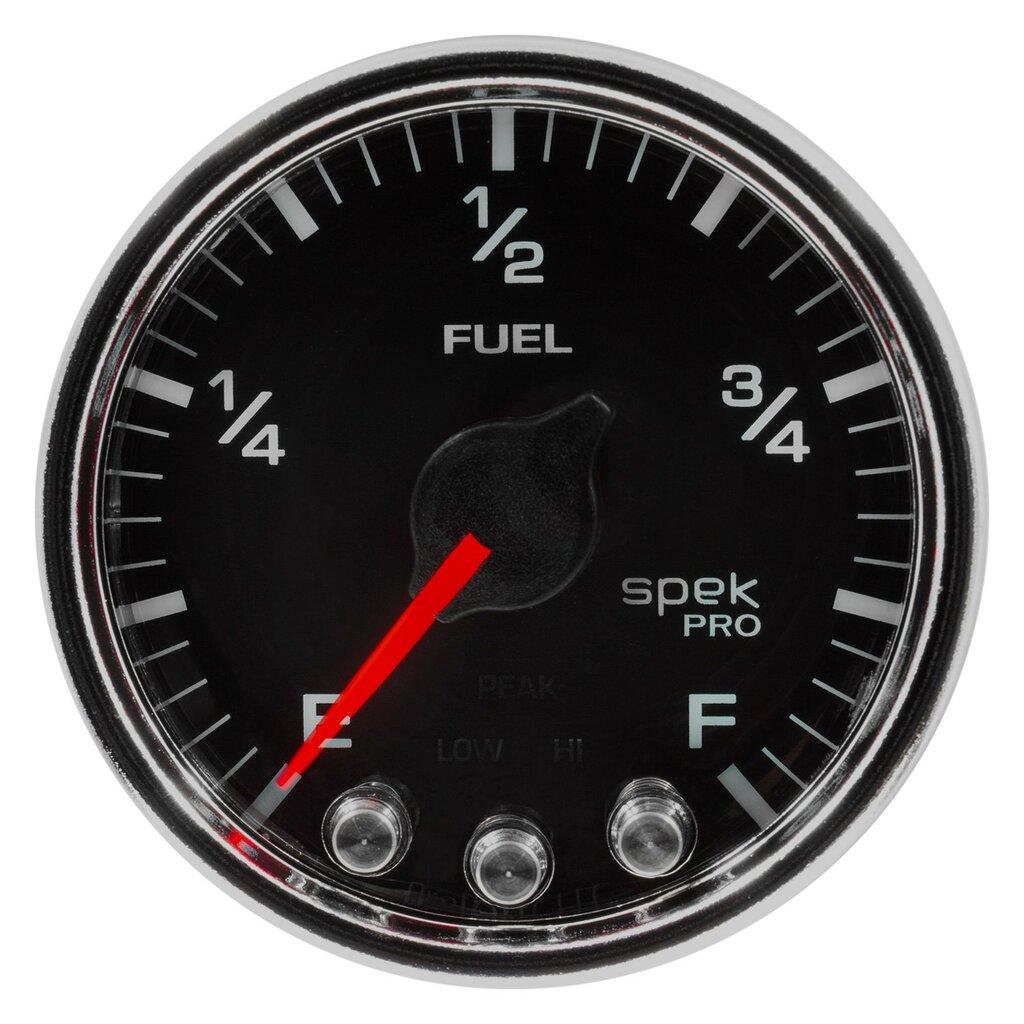

Auto Meter 2-1/16" FUEL LEVEL, PROGRAMMABLE 0-300 Ω, SPEK-PRO, BLACK/CHROME - P31231
Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Dial Color - Black
Lens Style - Domed, Clear
Bezel Color - Chrome
Bezel Style - Round Shoulder
Size (Standard) - 2-1/16"
Cup/Hole Size (Standard) - 2.050"
Outer Bezel Diameter - 2.360"
Lighting Type - LED
Lighting Color - 7 User Selectable Colors
Pointer Color - Fluorescent Red
Movement - Electric, Digital Stepper Motor
Gauge Type - Fuel Level
Range - Programmable 0-300 Ω
