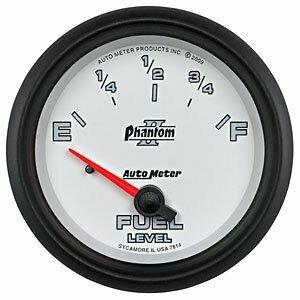

Auto Meter 2-5/8" FUEL LEVEL, 0-90 Ω, GM, SSE,PHANTOM II - 7814
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Dial Color - White
Lens Style - Flat, Clear
Bezel Color - Black
Bezel Style - Super Bezel
Size (Standard) - 2-5/8"
Cup/Hole Size (Standard) - 2-5/8"
Outer Bezel Diameter - 2-7/8"
Lighting Type - LED
Lighting Color - White
Pointer Color - Fluorescent Red
Movement - Electric, Air-Core
Gauge Type - Fuel Level
Range - 0 Ω Empty / 90 Ω Full
