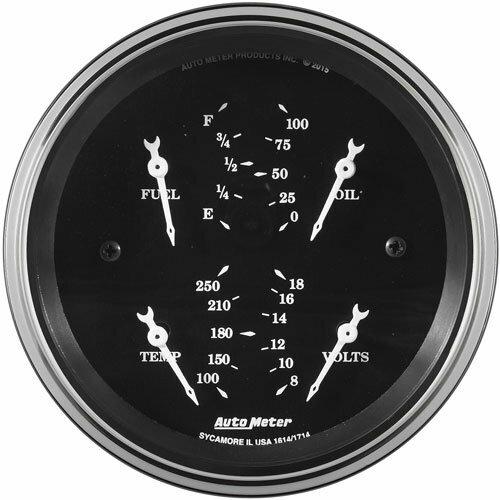

Auto Meter 3-3/8" QUAD GAUGE, 0-90 Ω, OLD TYME BLACK - 1714
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).
Dial Color - Black
Lens Style - Domed, Clear
Bezel Color - Chrome
Bezel Style - Street Rod
Size (Standard) - 3-3/8"
Cup/Hole Size (Standard) - 3-3/8"
Outer Bezel Diameter - 3-3/4"
Lighting Type - Incandescent
Lighting Color - White Incandescent
Pointer Color - White
Movement - Electric, Air-Core
Gauge Type - Quad Gauge
Range - 100 PSI/100-250 °F/8-18V/0ΩE-90ΩF
