ARB Rock Sliders (2020-2021 Gladiator) - 4450260
ARB Rock Sliders
Vehicle-specific
Designed to Spread the Load and Protect Lower Sill Area
Vehicle-specific design to suit the Jeep Gladiator.
Durable steel construction for maximum protection.
Development - To ensure we meet your expectations, ARB invests heavily in research and development. Our design and engineering team utilizes the latest CAD, CAM parametric modeling systems and finite element analysis packages, and is supported by subcontract companies and universities for special projects like vibration, strength and crash testing. With an air bag equipped vehicle for example, it is essential that the vehicle's crush rate and air bag triggering is not altered when a bull bar is installed. Our exhaustive testing programs ensure ARB bull bars meet these requirements. We also devote considerable time and resources toward to sourcing new products from around the world. IPF lights from Japan, Warn winches from the US' we scan the globe in search of equipment that meets both the demands of our customers and our own stringent quality requirements. What's more, we're also constantly on the lookout for new ways to improve our business practices, from distribution to customer service. ARB is a Quality Endorsed Company, and wherever we can, we endeavor to 'raise the bar'.

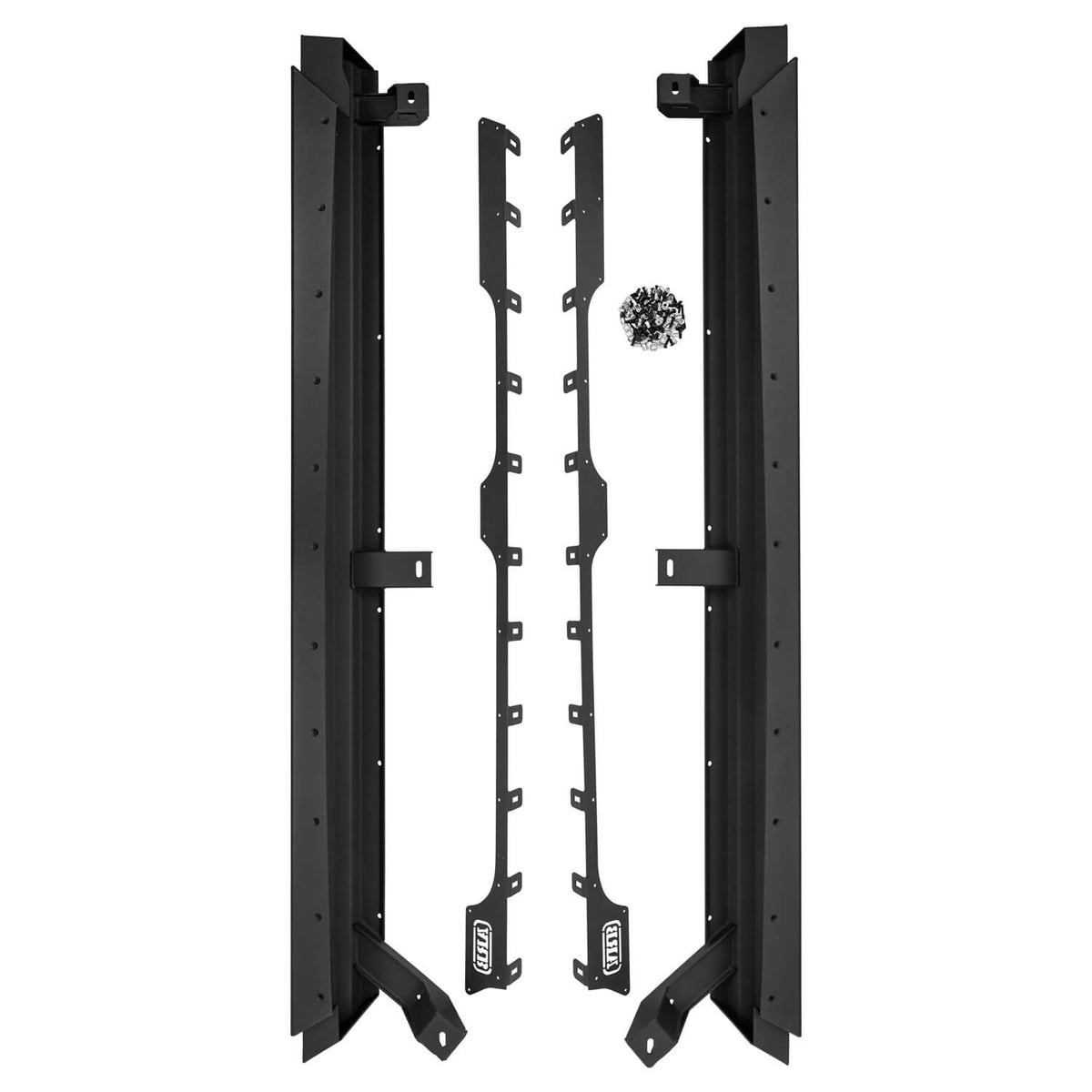

Two-piece design of sill mount and slider assemblies.
Slider section manufactured from 4mm laser cut steel.
Slider section mounts to chassis-mounted body mounts.
Mounts to vehicle sill, 3mm laser cut steel.
Sill panels mount to vehicle with M6 nutserts and M6 button head Torx bolts.
Approximate weight of the sliders are 79lbs (pair).
Finished in Integrit' textured black powder coat.

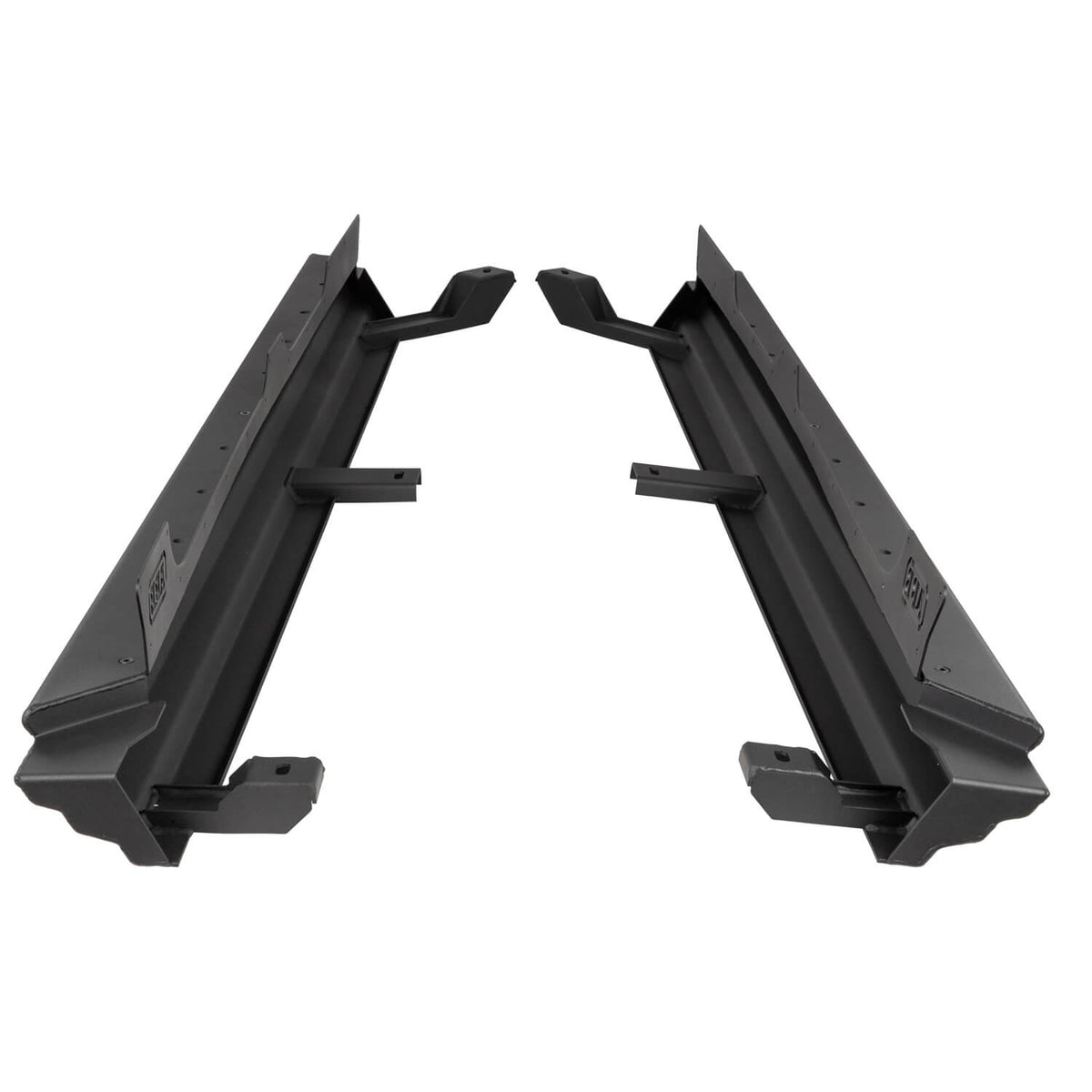

Combining functionality, strength, protection and a visually unique design, ARB has developed an all-new rock slider to suit the JT Gladiator. These ARB Rock Sliders are made up of both the slider assembly and a lower body mount to spread the load and protect the vulnerable lower sill area of the JT when used off road. The multi-folded slider uses chassis-mounted body mounts to spread the load along the length of the vehicle sills and not restrict breakover angle. The sliders are manufactured from multi-folded 4mm laser cut and pulse welded sheet steel. The multi-folded sheet steel provides strength without the need for thicker material to keep weight to a minimum. The profile of the slider against the body is curved to match the vehicle shape. To provide additional mounting, a sill plate is fitted with M6 nutserts and M6 button head zinc-plated Torx bolts. The plate is manufactured from 3mm laser cut and folded sheet steel and features a laser cut ARB logo at the front of the sill plate. To complement the ARB JT protection equipment range the Rock Sliders are finished in Integrit' textured black powder coat.
History - The origins of ARB can be traced back to Australia's remote Top End, circa 1975. A region of vast distances and rugged terrain, it was fast becoming a Mecca for the nation's burgeoning 4WD community. However, the very environment that attracted 4 wheelers also wreaked havoc on their equipment when driving in extreme conditions, only the best 4x4 accessories will do. This was the conclusion drawn by Tony Brown during his travels at the time. While exploring the treasures of the Top End, the skills Tony gained from working on his Land Rover were regularly called on to mend damaged bull bars and broken roof racks. Bar work back then was crude, not at all suited to overland touring, and through this experience an idea was born high quality equipment that met the vigorous demands of 4WD owners. Upon returning to Melbourne, Tony put theory into practice via the family garage, where he sought to address the product deficiencies he'd encountered. His vision called for a combination of sound design principles and reliable raw materials' a simple solution to an endemic problem. The concept was embraced when it hit the fledgling 4x4 market, and ARB the initials of Anthony Ronald Brown was founded. Today, ARB is Australia's largest manufacturer and distributor of 4x4 accessories. We also have an international presence, with an office in the US and an export network that extends through more than 80 countries around the globe. Our philosophy, however, has never wavered from its original course quality, reliability and practicality above all else.
