2" x 2 1/8" x 3 1/2" dimensions, for Edelbrock Head Type

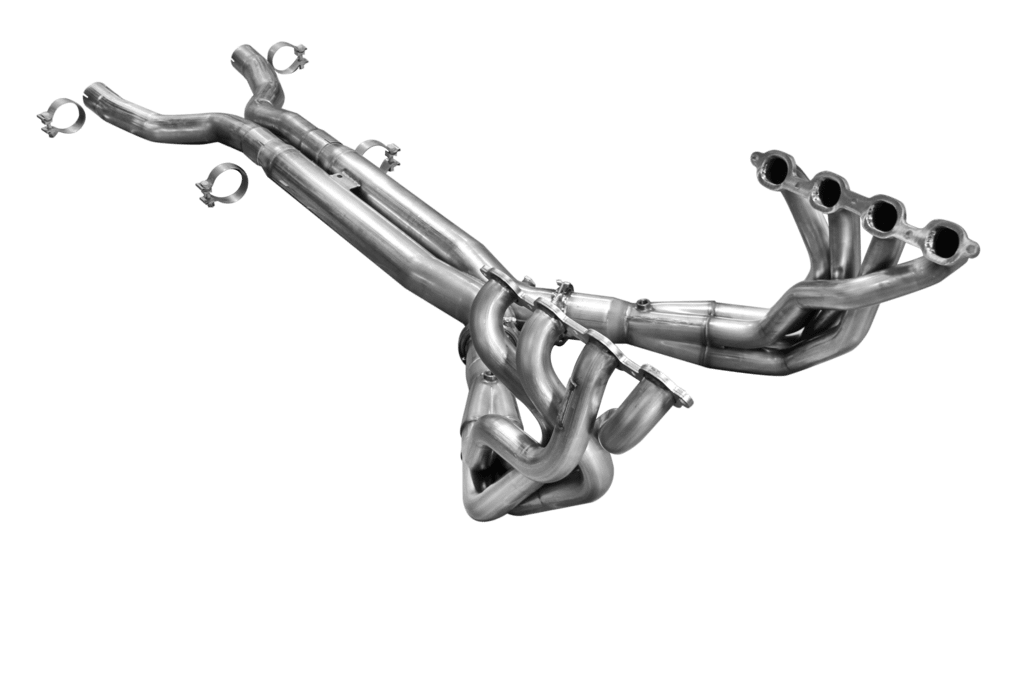

New to the ARH line up for your C7 Corvette are race systems made for Medium to Max Effort Naturally Aspirated, Nitrous Assisted or Supercharged applications producing 650 RWHP N/A and 800 RWHP or more with nitrous or supercharger. Eliminating the restrictions at both the collectors and X-Pipe will improve HP significantly throughout the rpm range. Bank on it! These ARH race systems now feature 3-1/2" collectors and a 3-1/2" X-Pipe that connects using stainless V-Bands. Both reduce to 3" downstream to allow a simple installation to your existing stock or aftermarket Axleback.
Primary sizes are 2" (for up to 1000 RWHP) and for all out race applications, 2" x 2-1/8" stepped headers. We'd be happy to discuss what you have and which system suits your application best. Expect a great fit and easy installation.
And as always, everything ARH is 100% USA made and backed by a lifetime guarantee.
Attn. All ARH products are exclusively manufactured for racing purposes. Installing these products on any vehicle eliminates the legal use, in any capacity, on public roads/highways and may be subject to fines and/or criminal liability as per the Clean Air Act.
Product features on this system includes:
- 100% Made in the USA - Never Outsourced
- Made entirely of 304 stainless steel
- 3/8" thick laser-cut flanges for a warp-free seal
- Hand-ported TIG welded inlets
- Optimized primary tube routing for superior fit and performance
- Merge collectors with scavenger spikes
- Catted systems feature 200 cell metallic substrate catalytic converters for extreme durability
