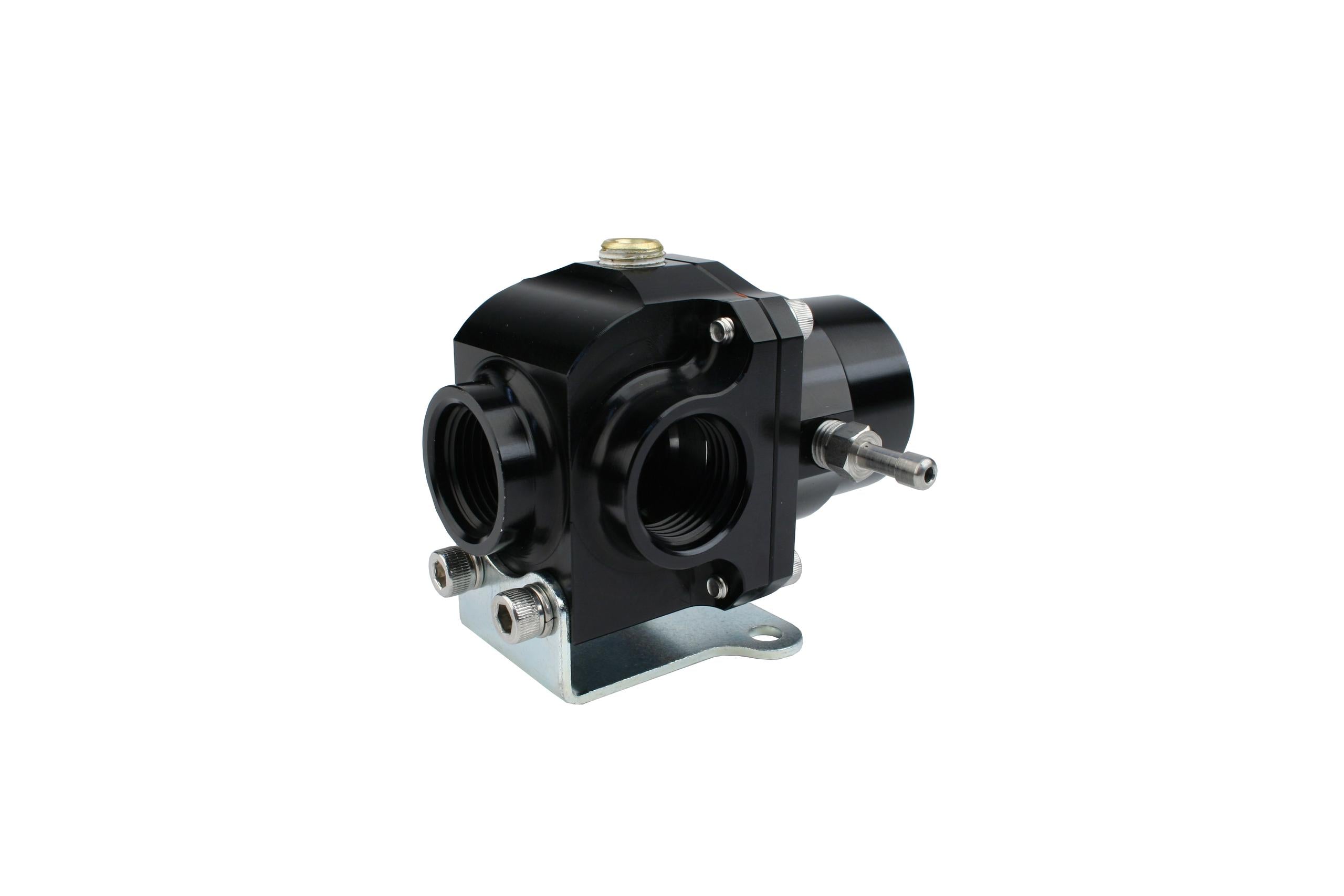

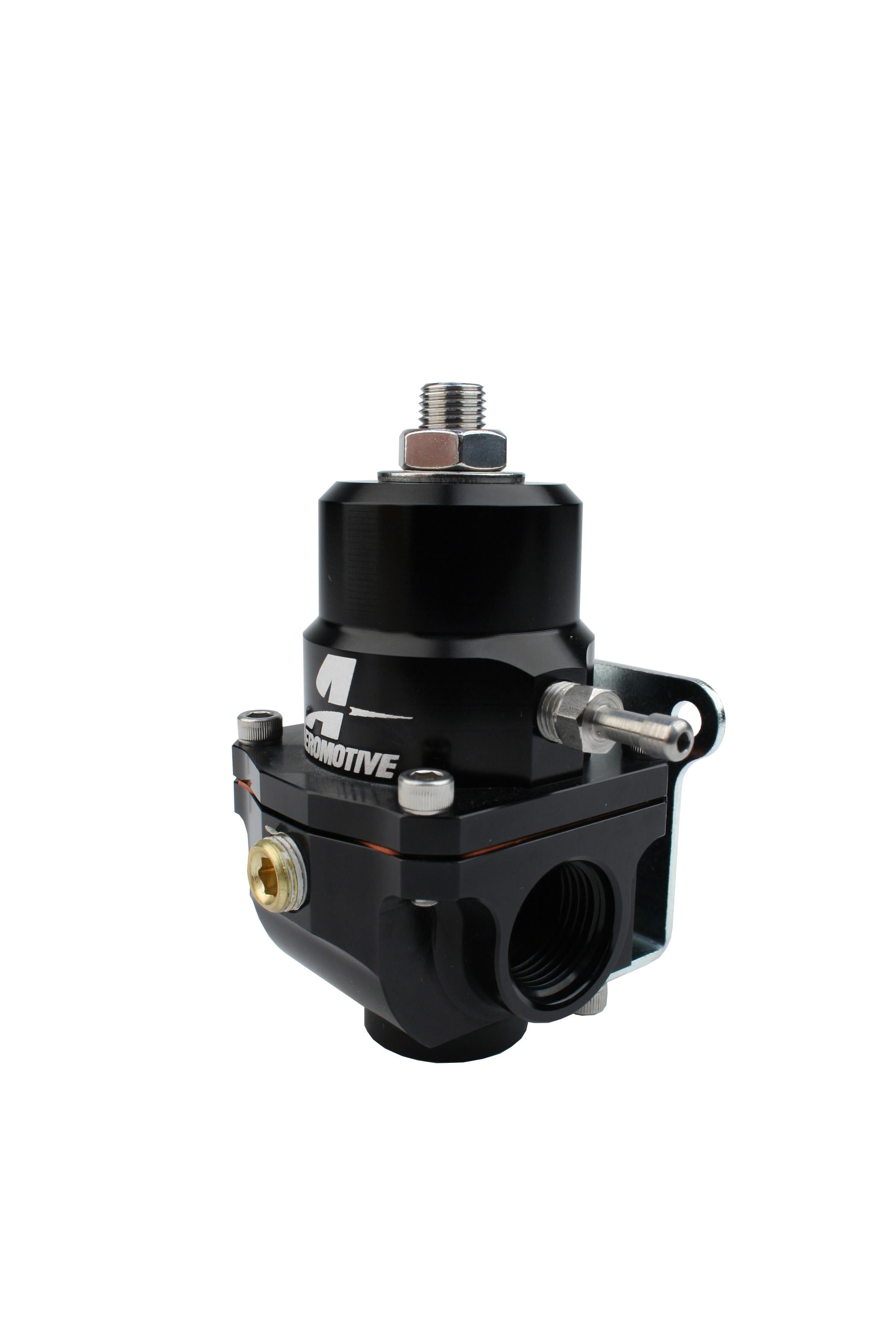

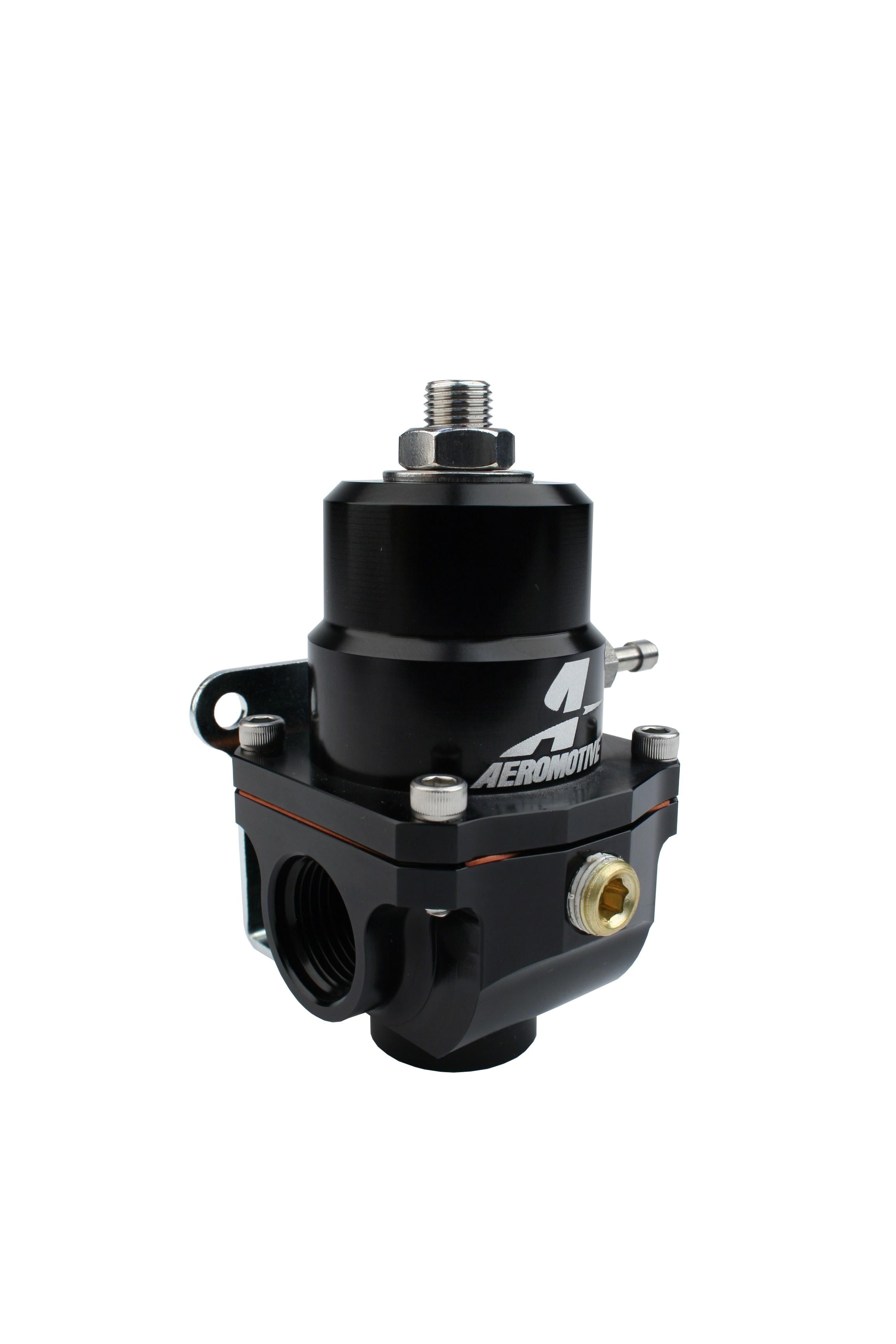

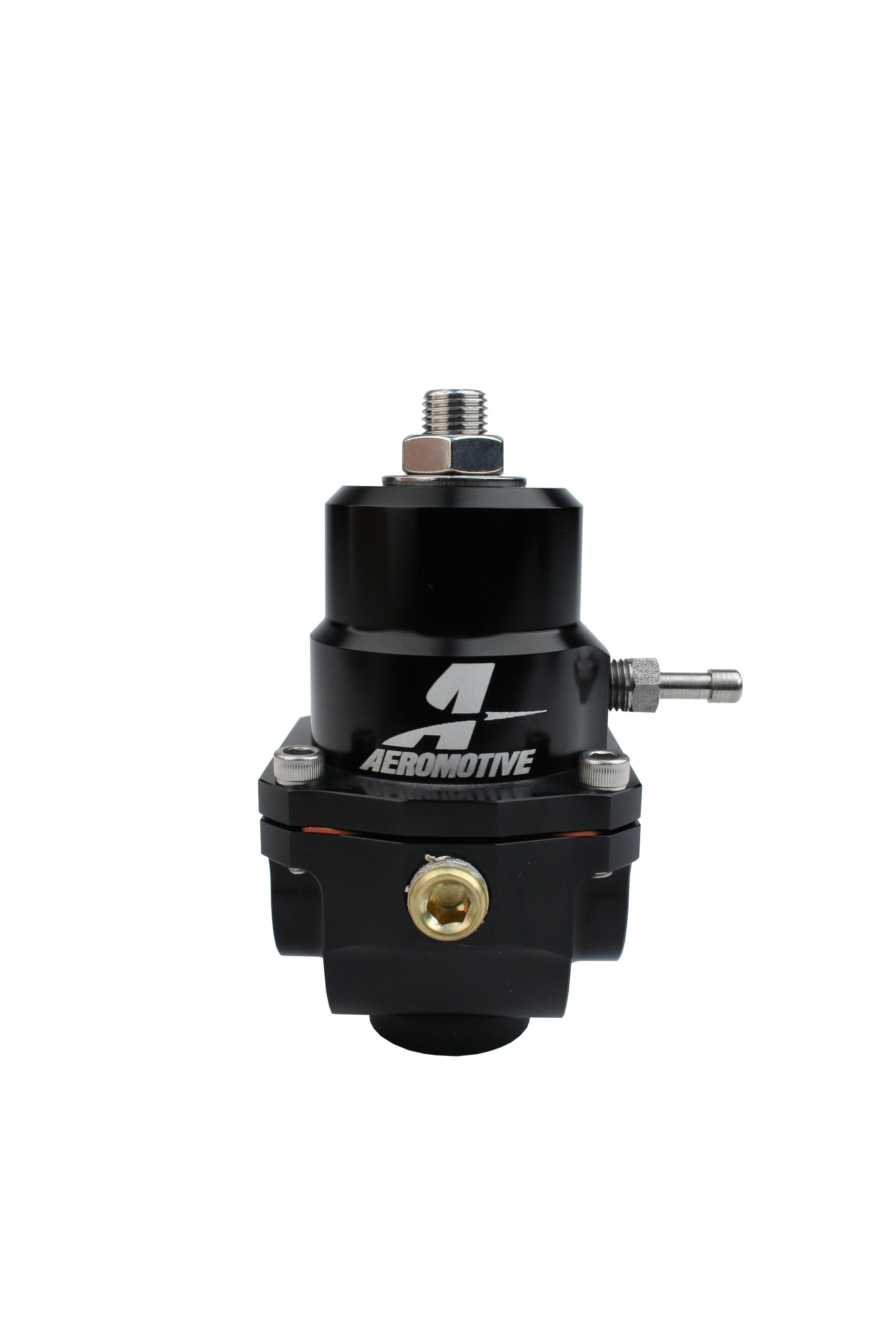

P/N 13303 X1 EFI Standard Bypass Regulator
EFI Bypass Regulator for Return Style Systems
Base fuel pressure adjustable from 35-75 PSI.
Vacuum/Boost reference capability.
1:1 rising rate for forced induction engines.
Gasoline, ethanol and alcohol compatible.
2 – ORB -08 inlet/outlet ports on the sides.
1 – ORB-08 return port on the bottom port.
1 – 1/8″ NPT Gauge Port with plug.
1/16″ NPT Boost Port with 5/32″ hose barb.
Compatible with X1 High Flow EFI Conversion kit.
Compatible with X1 Carb Conversion kit.
0.188″ bypass with matching spring and poppet.
Handles up to 150 GPH with AN-08 return line.
Suitable for any Aeromotive Pump up to A1000.
Mounting bracket included (not shown).
X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring
P/N 13014 150 GPH 0.313″ Carb Conversion Kit
P/N 13013 150 GPH 0.188″ EFI Service Kit
P/N 13015 250 GPH 0.313″ EFI Conversion Kit
