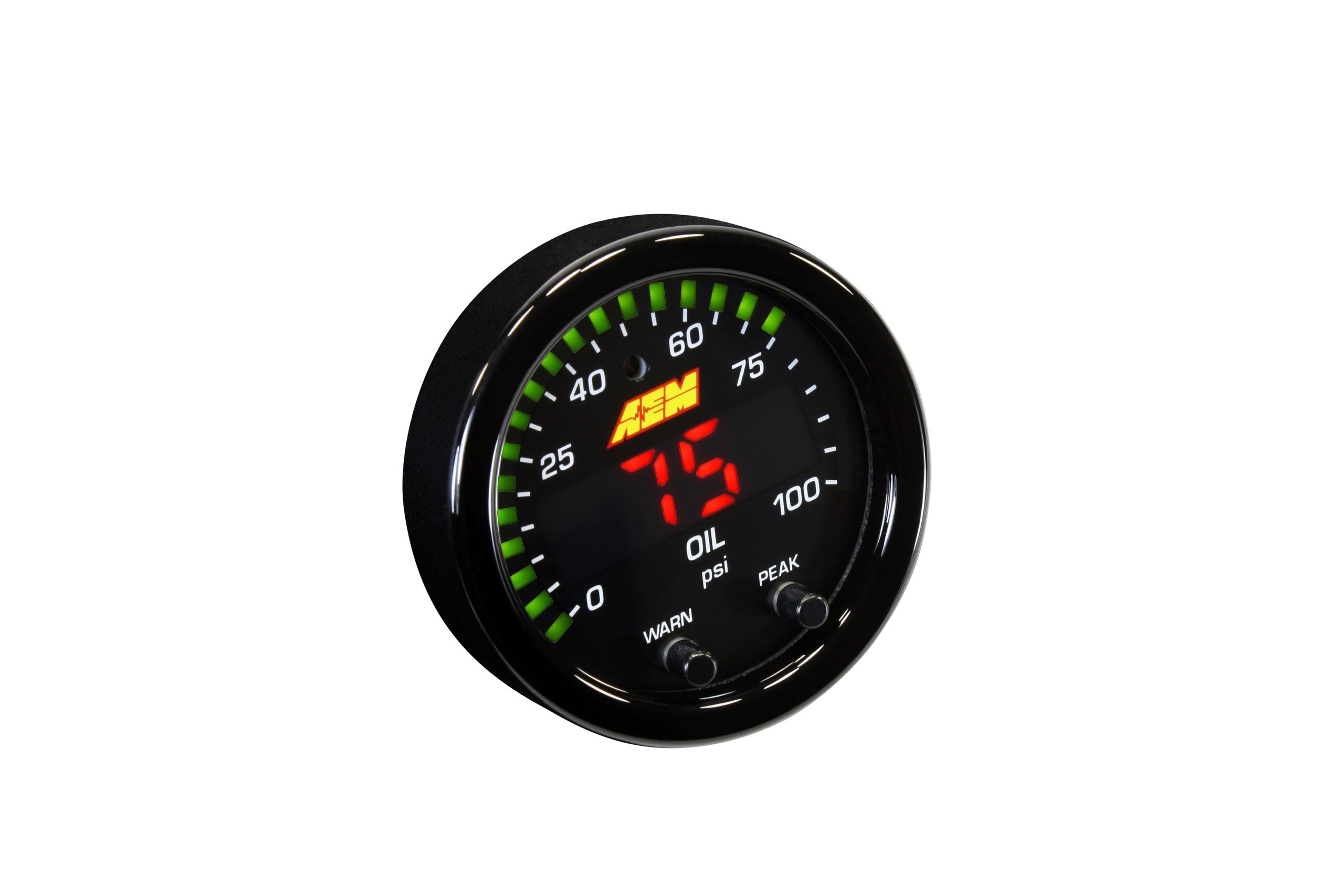

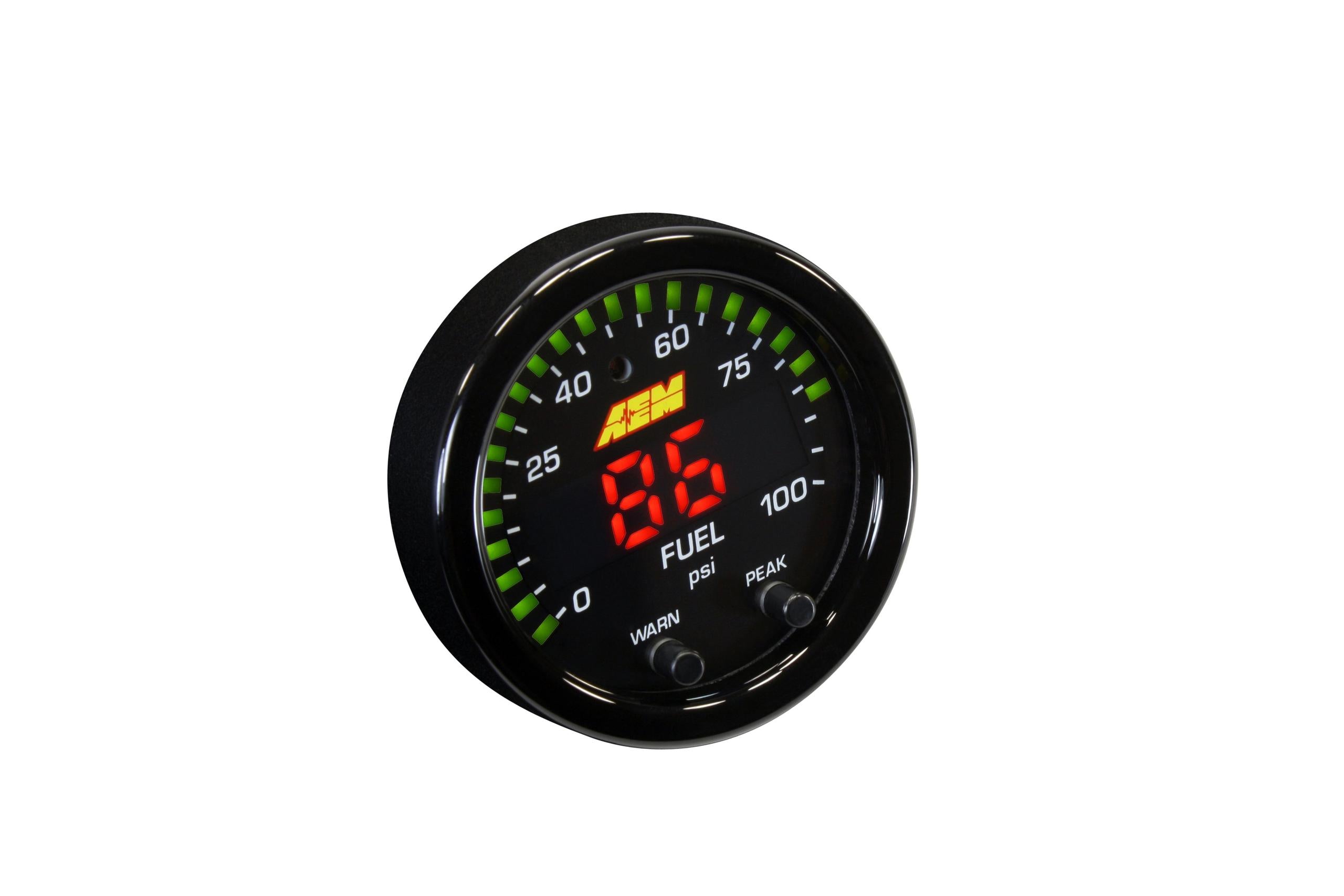

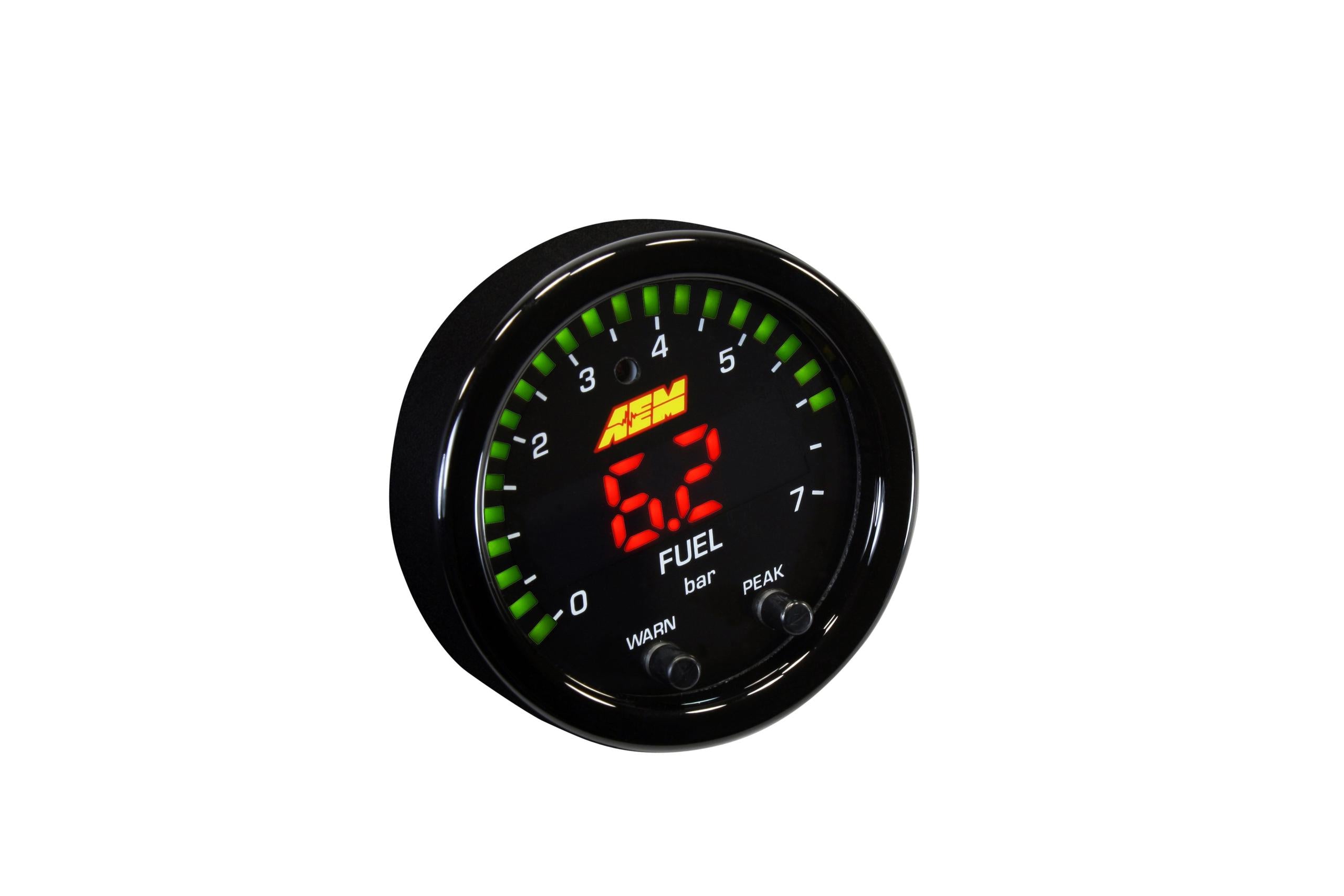

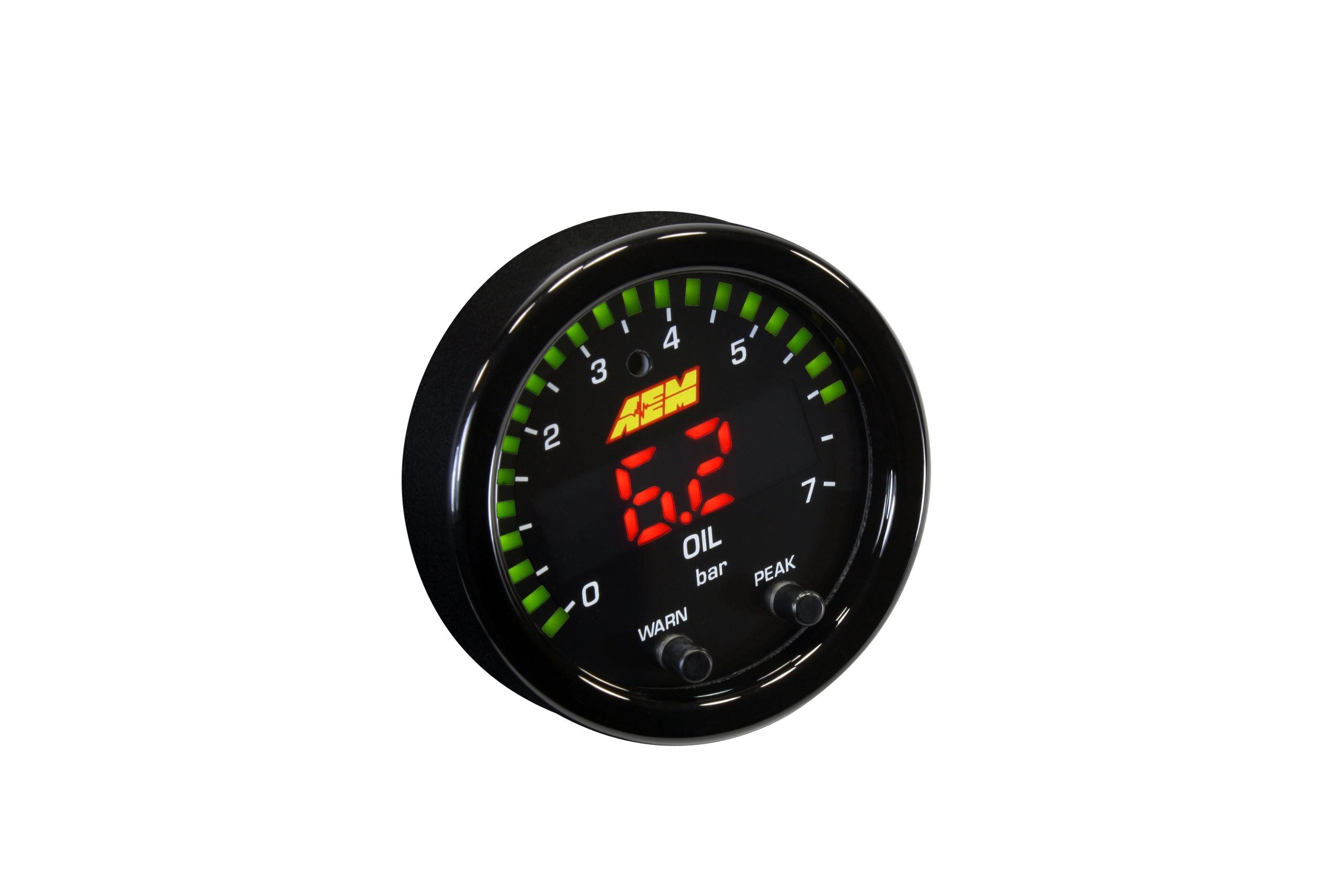

AEM X-Series Gauge - 30-0301
AEM Electronics X-Series Pressure Gauges
AEM Electronics X-Series pressure gauges display exceptional looks,
increased readability, and a multitude of features. Easier to read, mount,
and use, they are a must-have for accurate diagnostic, oil, and boost
pressure readouts in your high performance vehicle.
Features include:
* Reversible black face (psi/BAR) and black bezel
* Optional silver bezel with black/white faceplate accessory kit available
(sold separately; see Suggested Parts tab)
* 2 1/16 in. (52mm) gauge diameter for easy mounting in gauge pods
* Slim 0.825 in. overall gauge depth and 0.200 in. cup depth—mount them
virtually anywhere!
* Programmable center LED is 87 percent larger than original AEM gauges
* 24 green outer-edge LEDs offer quick reference to engine parameter
* User-selectable standard or metric display (PSI/BAR)
* Peak/Recall via gauge face buttons
* User-selectable threshold warnings
* AEMnet CANbus-enabled for transmitting data to EMS or data-logger
* 0-5 V analog outputs for transmitting data to EMS or data-logger
* Auto-dimming sensor delivers ideal display brightness
* Positive locking connectors provide secure connection
