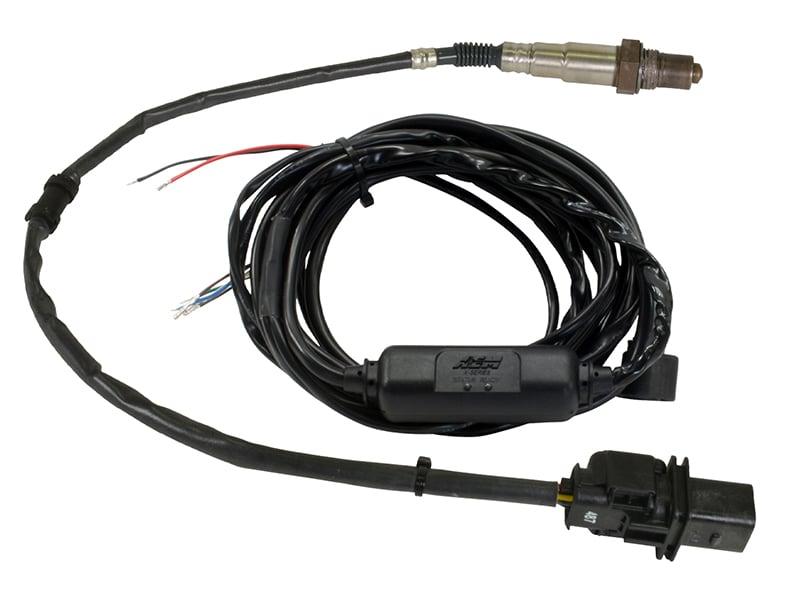

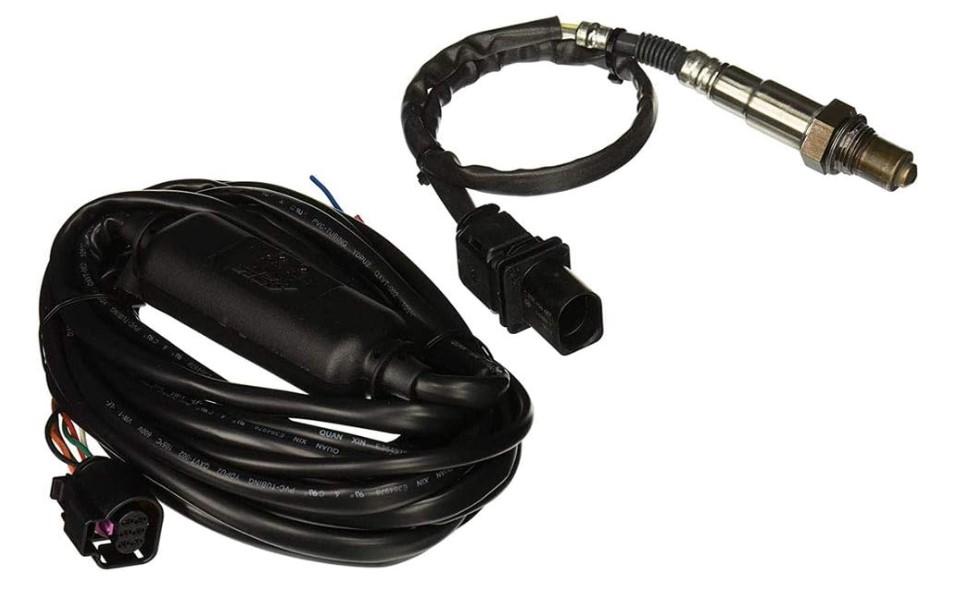

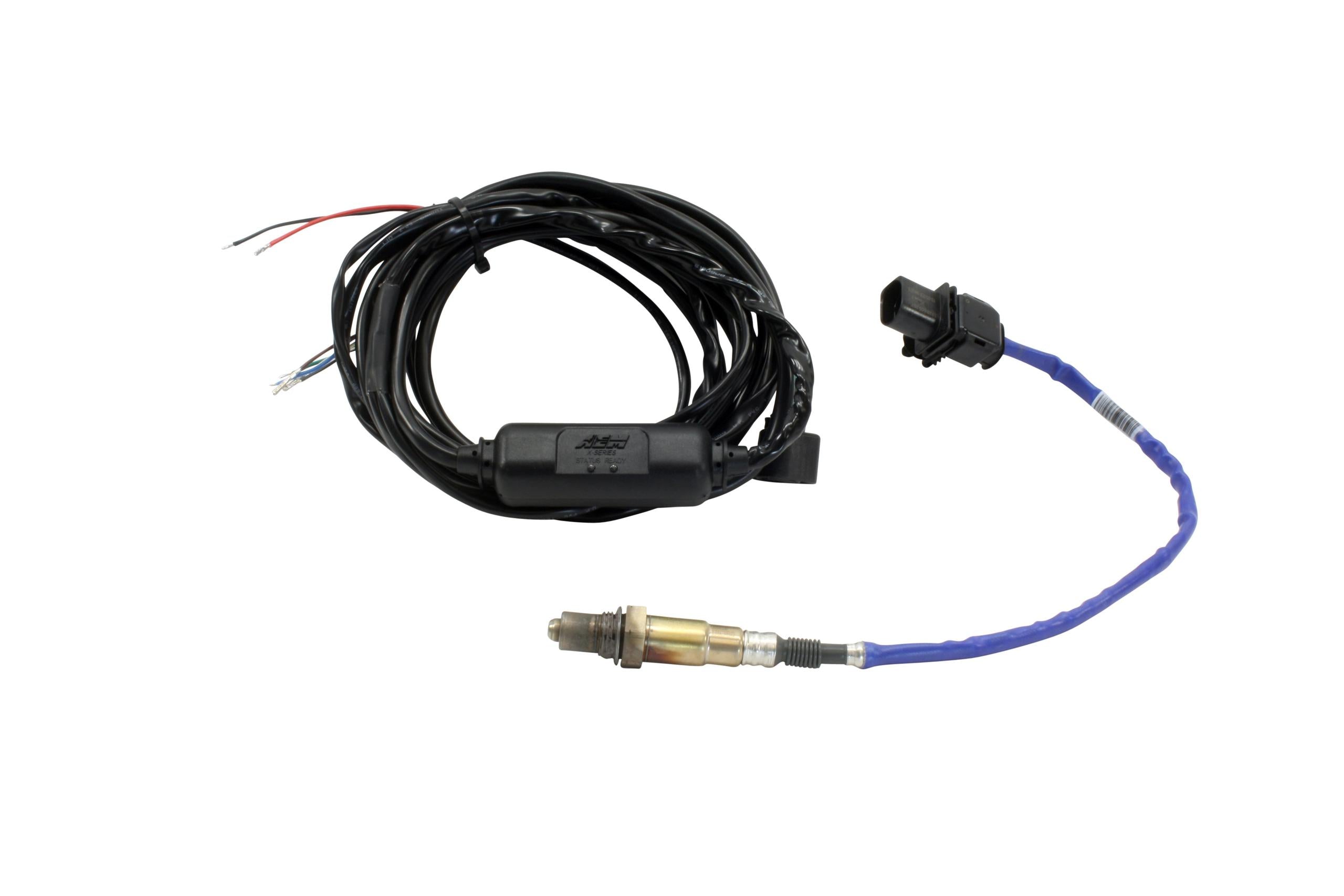

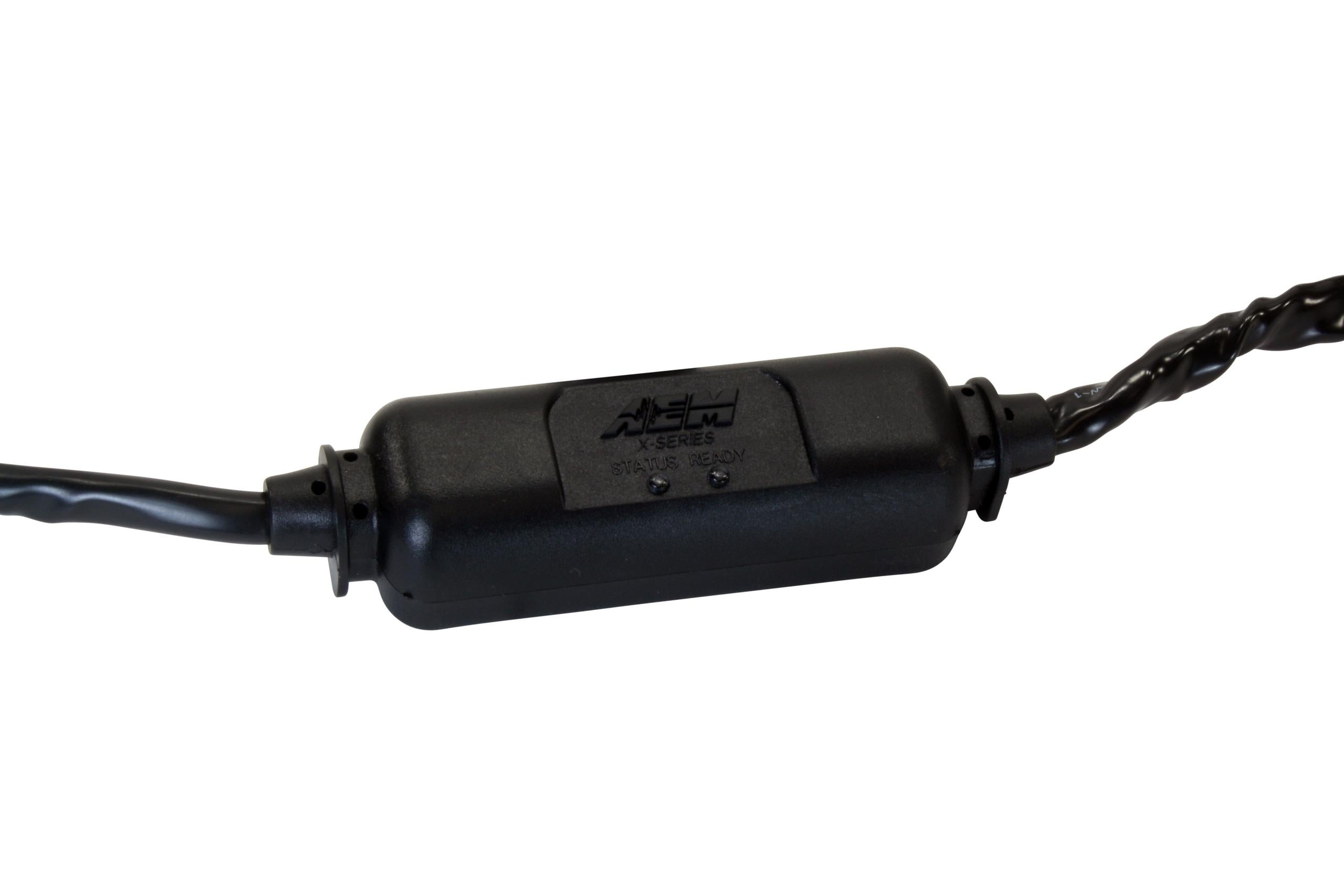

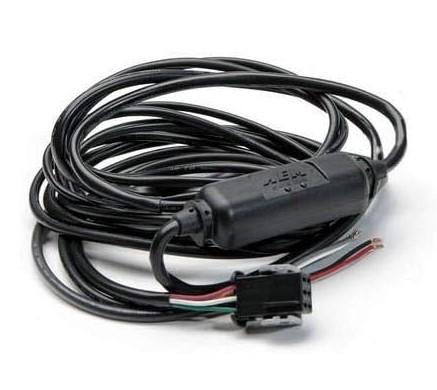

AEM X-Series Inline - 30-0310
AEM Electronics Inline Wideband UEGO Controllers
AEM Electronics inline wideband UEGO controllers give all the benefits of
the AEM Electronics wideband Air/Fuel gauges to those who do not require or
want an additional gauge in the car. Perfect for datalogging, engine
management systems or racing applications where a gauge is not desired.
With simple wiring and easy installation, the weatherproof controller can
be mounted anywhere in or outside the vehicle. The system features a Bosch
sensor with an accuracy of .1 AFR, making it among the fastest and most
accurate widebands available. Other features include:
* Ideal AFR monitoring tool for EFI and carburated applications, and engine
dynamometers
* Does not oscillate AFR reading like narrow band sensors
* No laptop required for monitoring!
* 0-5V analog output included for use with data loggers and virtually any
engine management system
* Detects AFR sensor problems and outputs error values which can be used to
deactivate feedback
* Reads Gasoline AFR values from 8.5 to 18:1 AFR
* Reads E85 AFR from values 5.7 to 12:1 AFR
* Reads Ethanol AFR values from 5.2 to 11:1 AFR
* Reads Methanol AFR values from 3.7 to 7.8:1
* Reads Lambda values from 0.58 to 1.22 AFR
