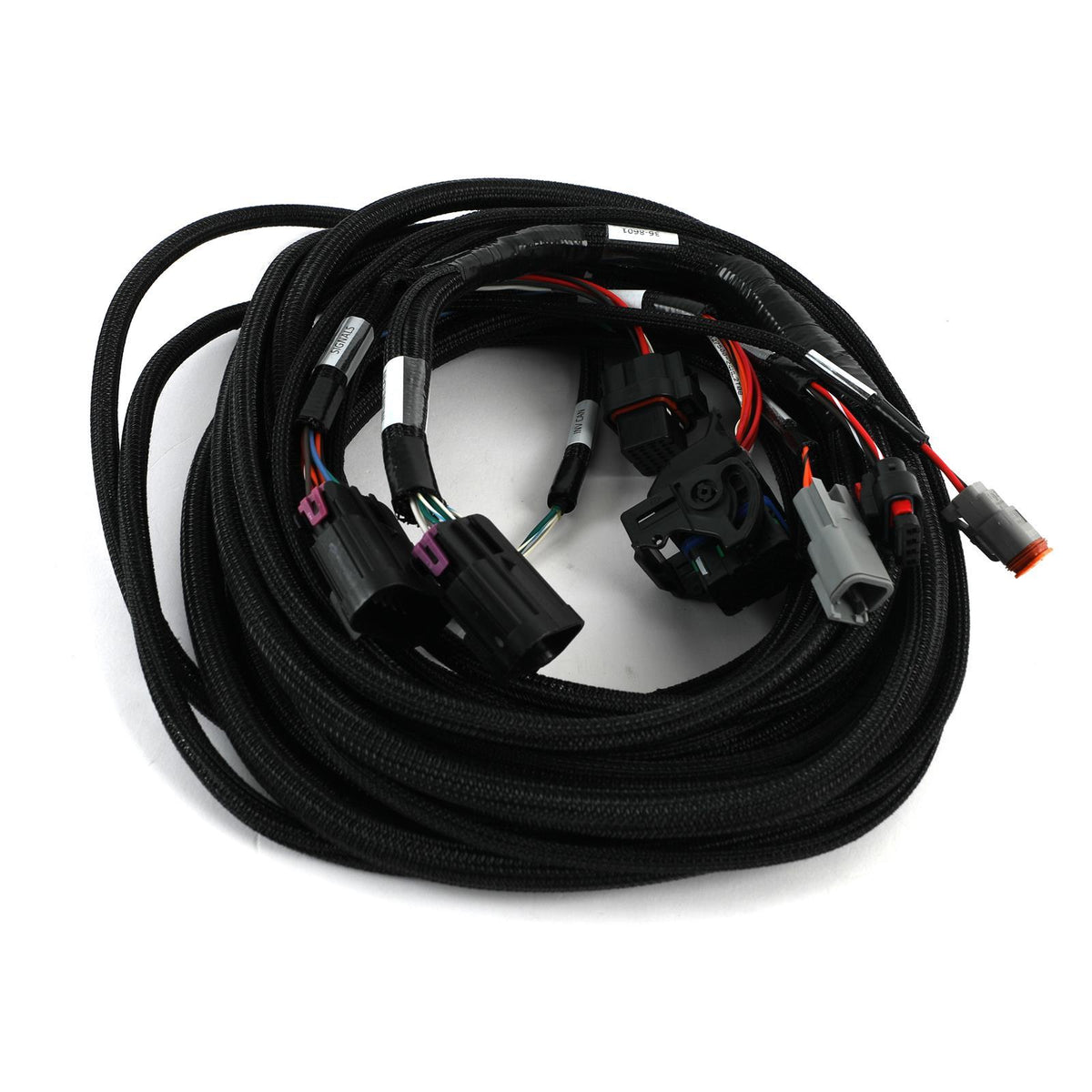

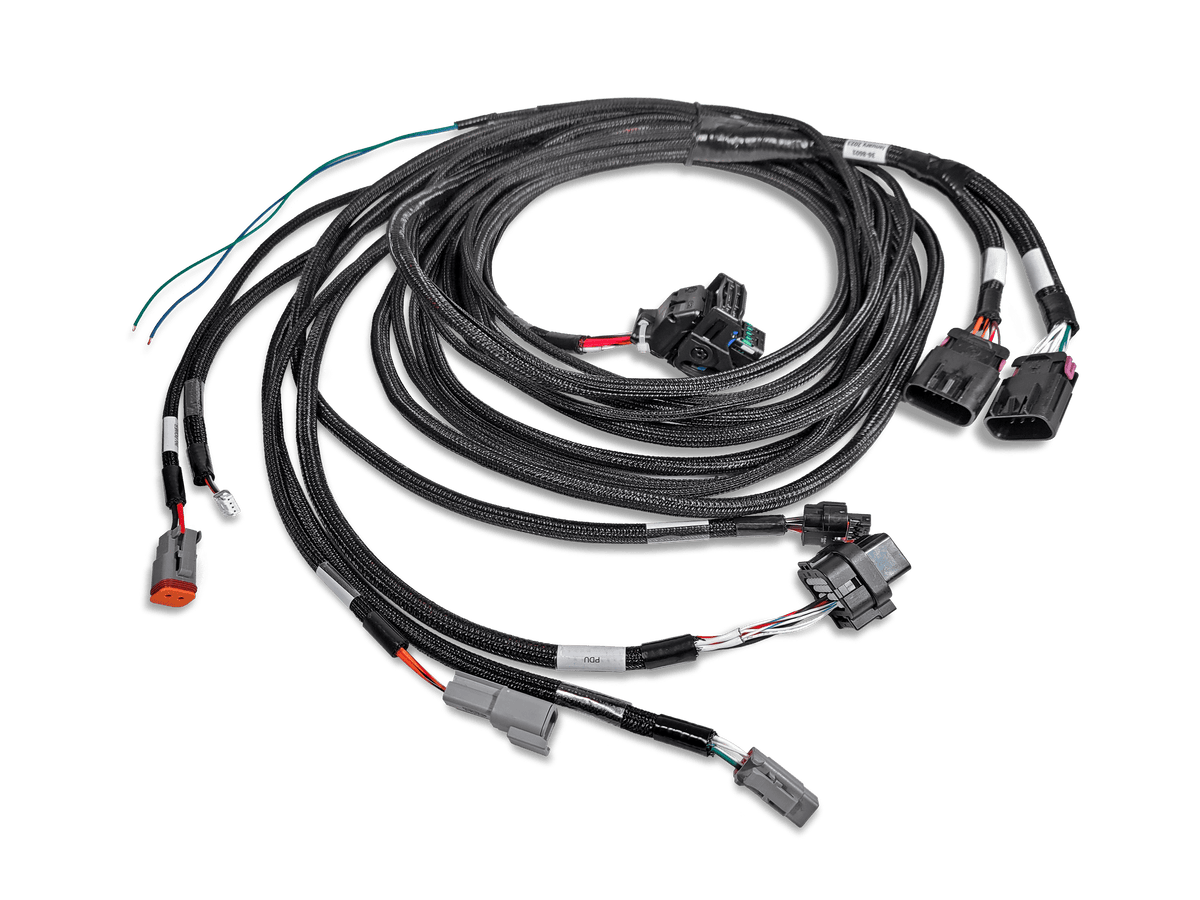

AEM Rear Low Voltage VCU Harness - 30-8601
Low voltage harness assembly designed to be installed in the rear half of the electric vehicle.
This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle. It was designed to be used with a mating front half assembly that is VCU hardware specific. The AEM part number for the mating front half harness is 30-8600.

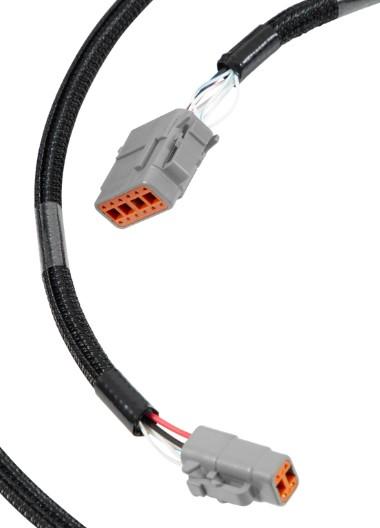

Connector interface features include:
- Power Distribution Unit (PDU)
- Combined Charging Unit (CCU)
- Isabellenhutte (IVTS) - current voltage shunt based measuring system
- Life Energy Motion (LEM) - current voltage DHAB s/124 Transducer Sensor
- Inverter CAN (INV CAN)
- Inverter High-Voltage Interlock (HVIL)
- Inverter Power (INV PWR)
- J1772 Flying Leads - Proximity Pilot (PROX) and Control Pilot (CP)
- Inline Signals
- Inline CAN
