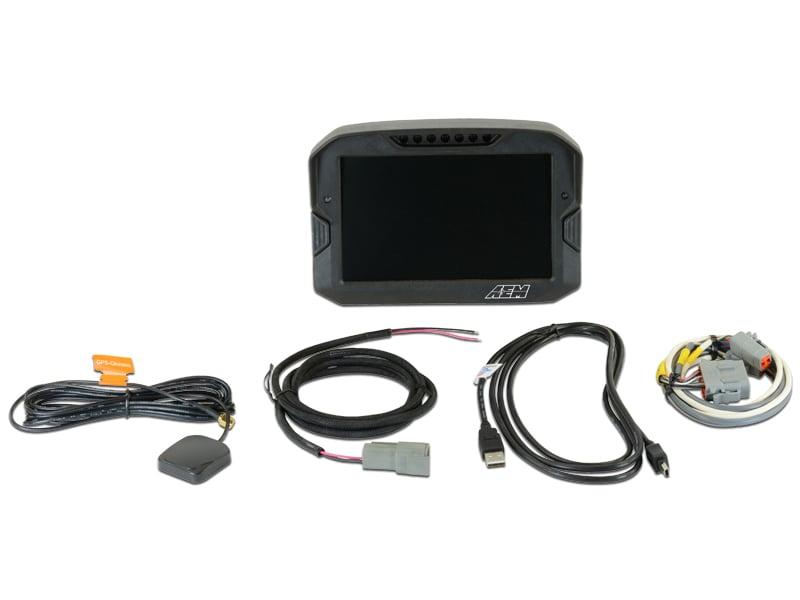

AEM Display Kit, CD-7G Carbon - 30-5702
AEM Electronics CD-7 Digital Racing Dash Displays

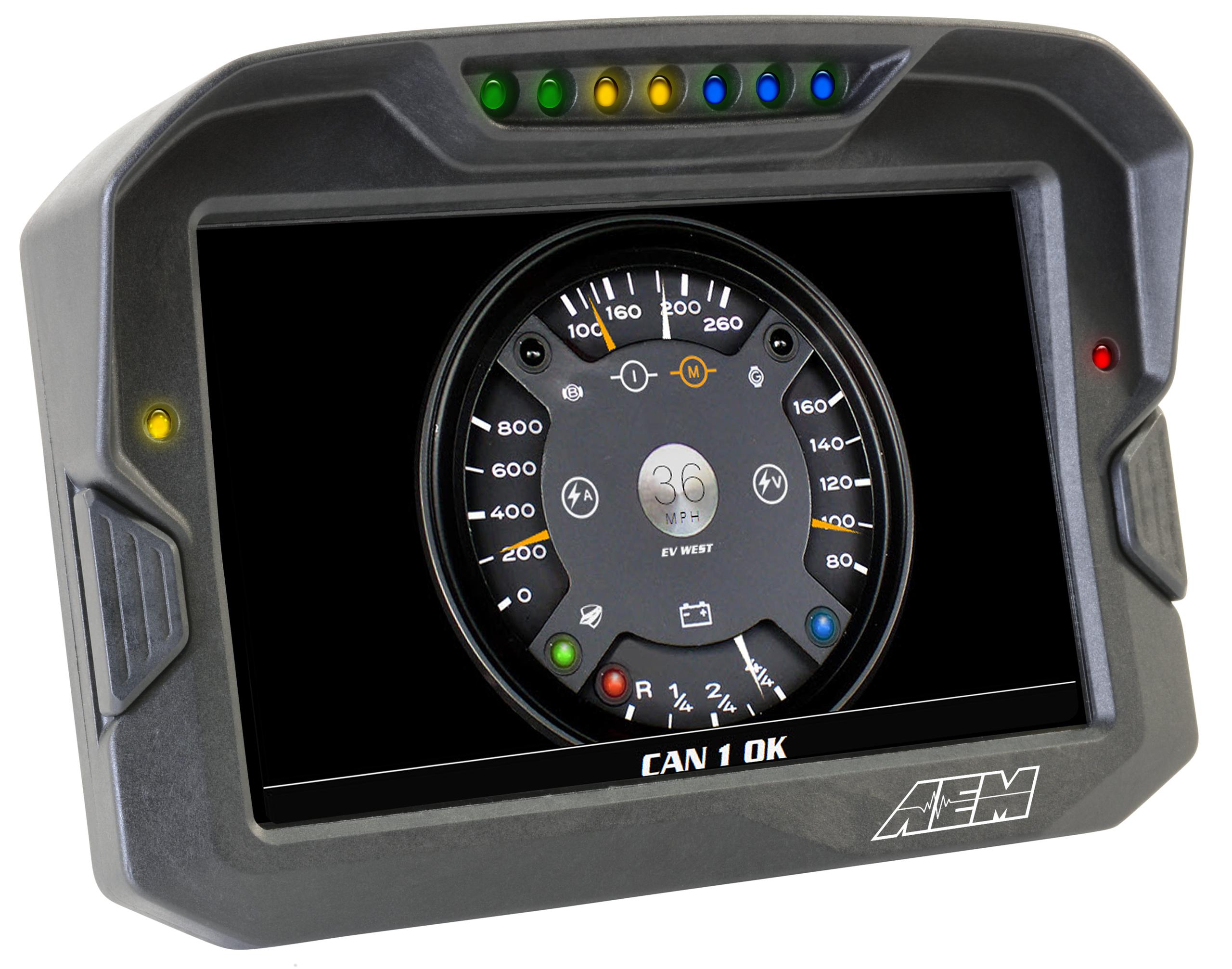

AEM Electronics CD-7 digital racing dash displays feature 7 in. full-color
digital screens that are super bright, high contrast, and with
sunlight-readable displays. To ensure visibility at all times, they also
have integrated glare diffusers and shade hoods to overcome the brightest
daylight conditions. The CD-7s are designed to accept channels from CAN bus
connections—and two CAN bus channels are included so that they can receive
and collect data from AEMnet-enabled devices. Seven ultra-bright LEDs span
the top of the display housing for rpm and shift light indication. You can
program them to ascend in specific increments based on rpm range, and flash
when it's time to shift. Brightness is also programmable on the fixed color
LEDs.
Two large buttons are included on the face of the display, allowing easy
page changing and memory resetting—even with driving gloves on. These

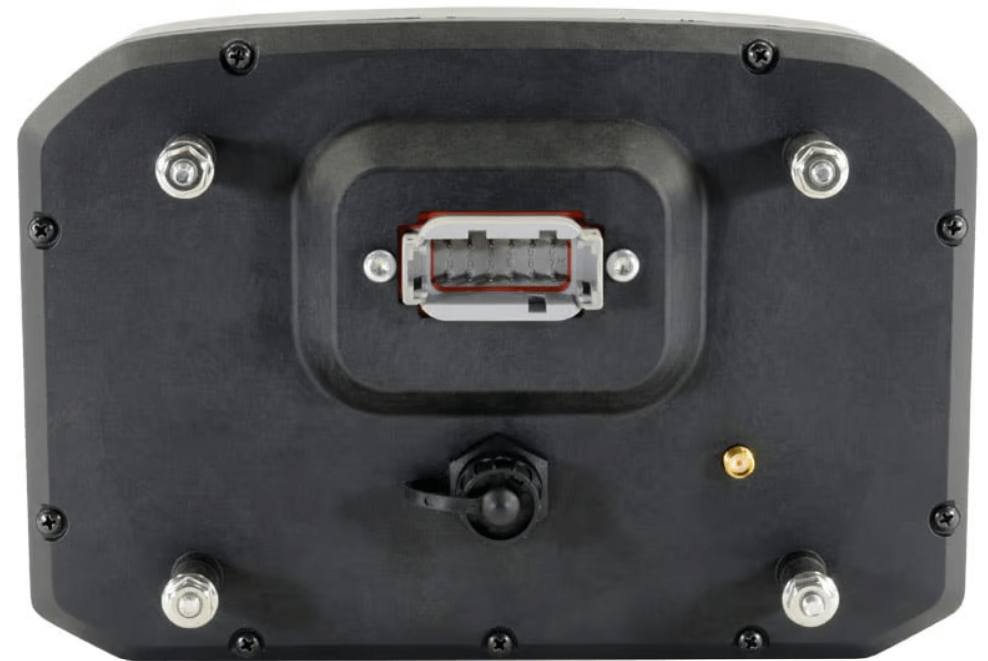

button functions are duplicated on the rear connector, allowing you to
mount remote buttons on the steering wheel, if desired. Two additional
programmable LEDs are located above the toggle buttons on the sides of the
housing. AEM offers the CD-7 as "display only" (non-logging) or with
built-in logger (CD-7L). The units are available in either a cast aluminum
or carbon fiber composite housing—with sealed connectors on the rear and
anti-vibration mounts.
