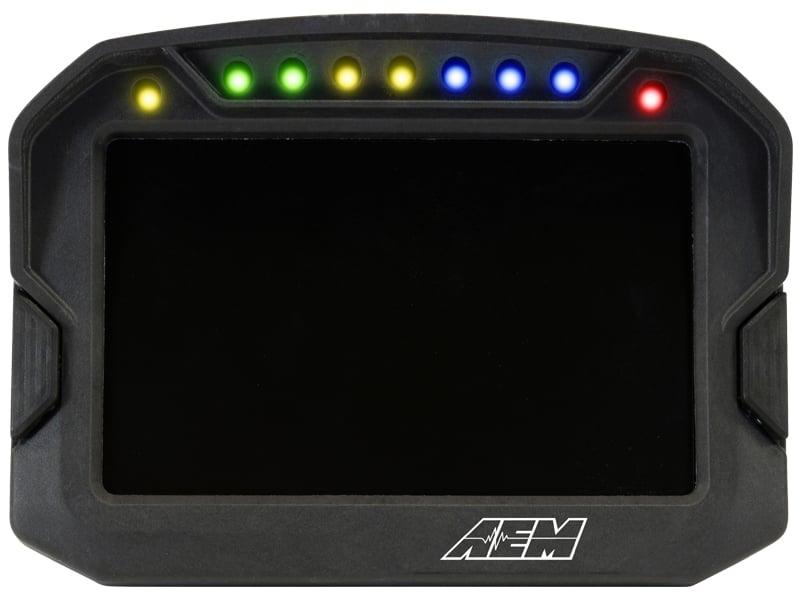

AEM Display Kit, CD-5 Carbon - 30-5600

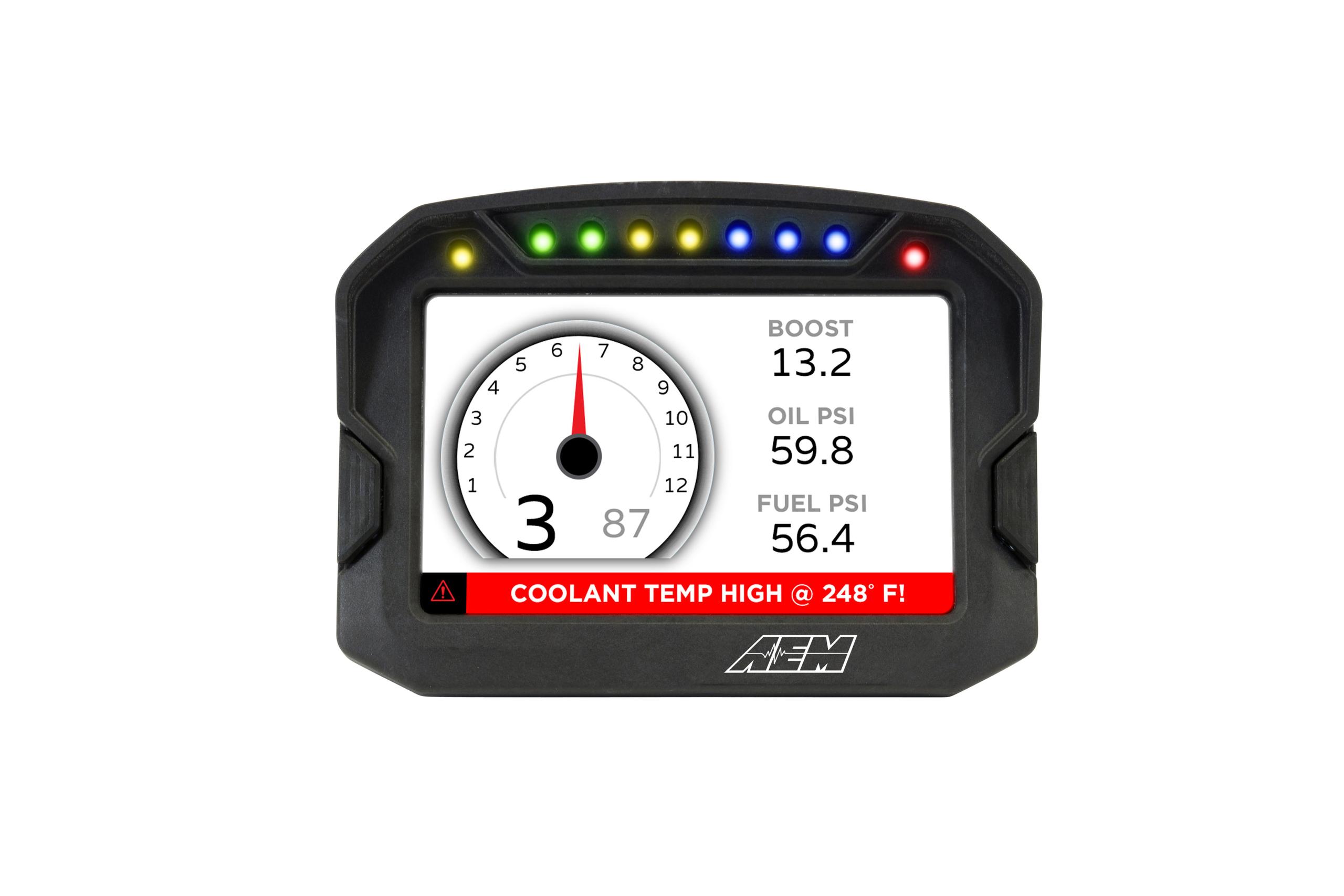

AEM Electronics CD-5 Carbon Digital Racing Dash Displays
AEM CD-5 Carbon digital racing dash displays are the lightest, brightest,
ultimate track day digital dashboard displays that play well with others!
The CD-5 units accept channels from two separate user programmable CAN bus
connections—works with AEMnet enabled devices and non-AEM third party
devices side-by-side.
More key features and benefits:

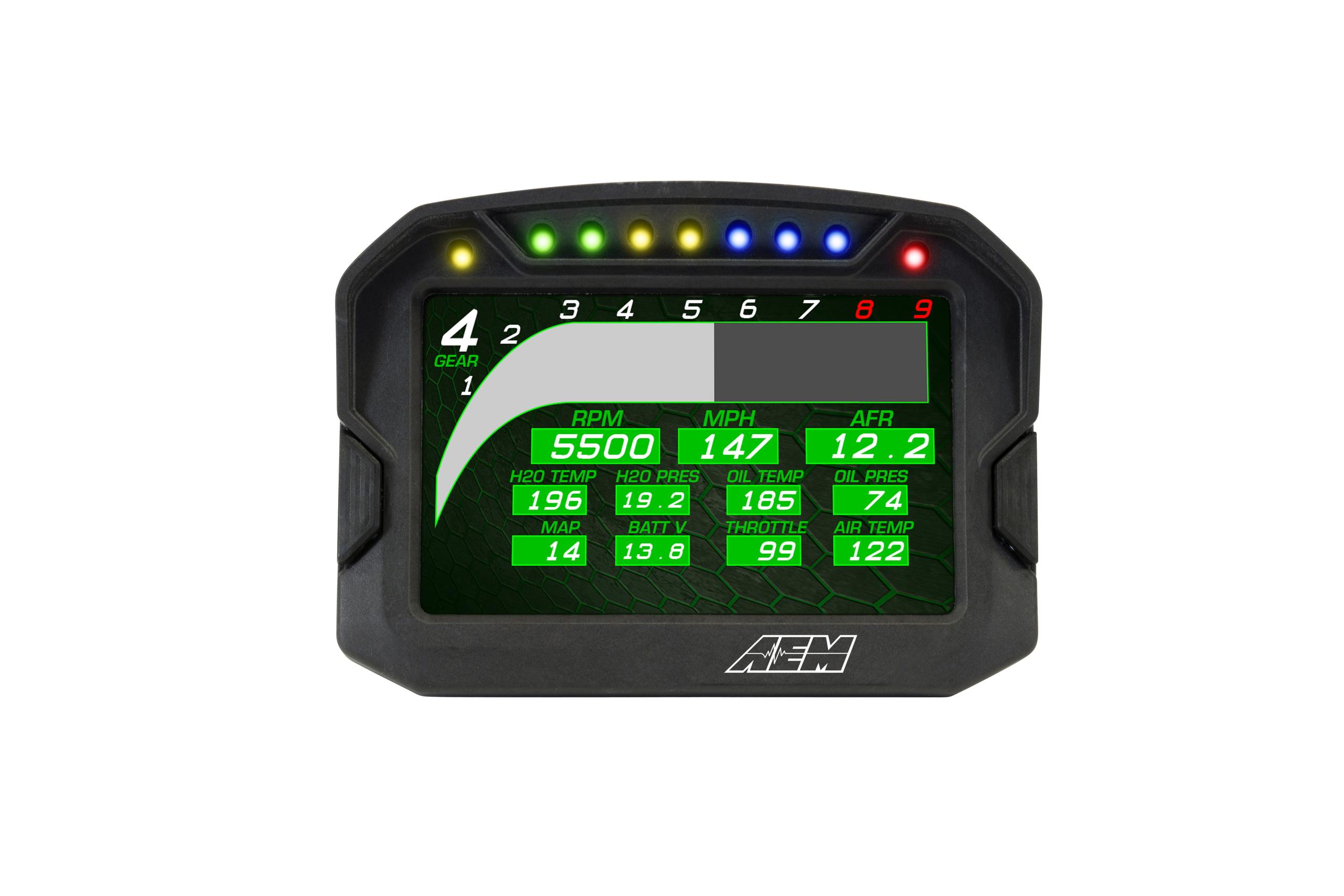

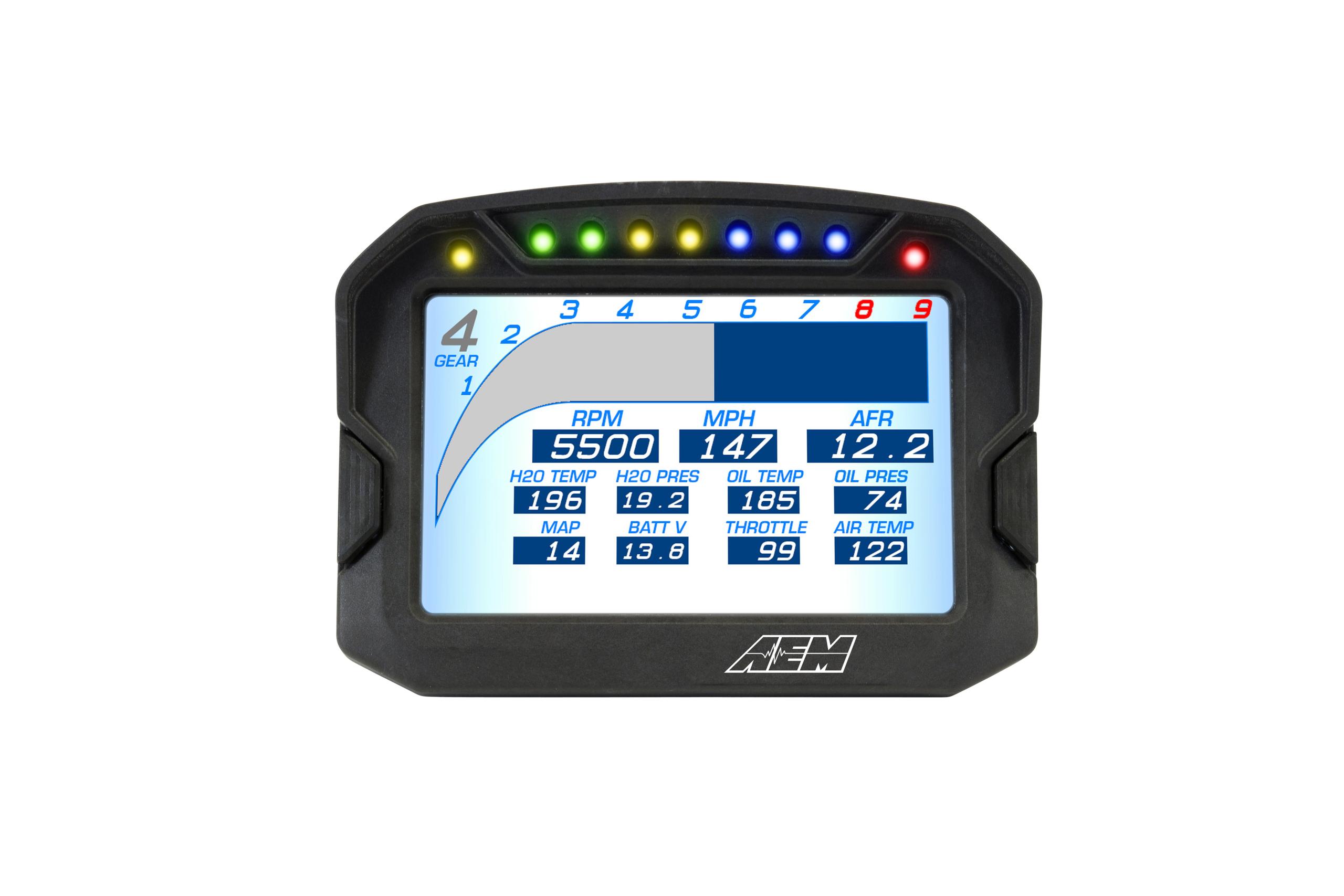

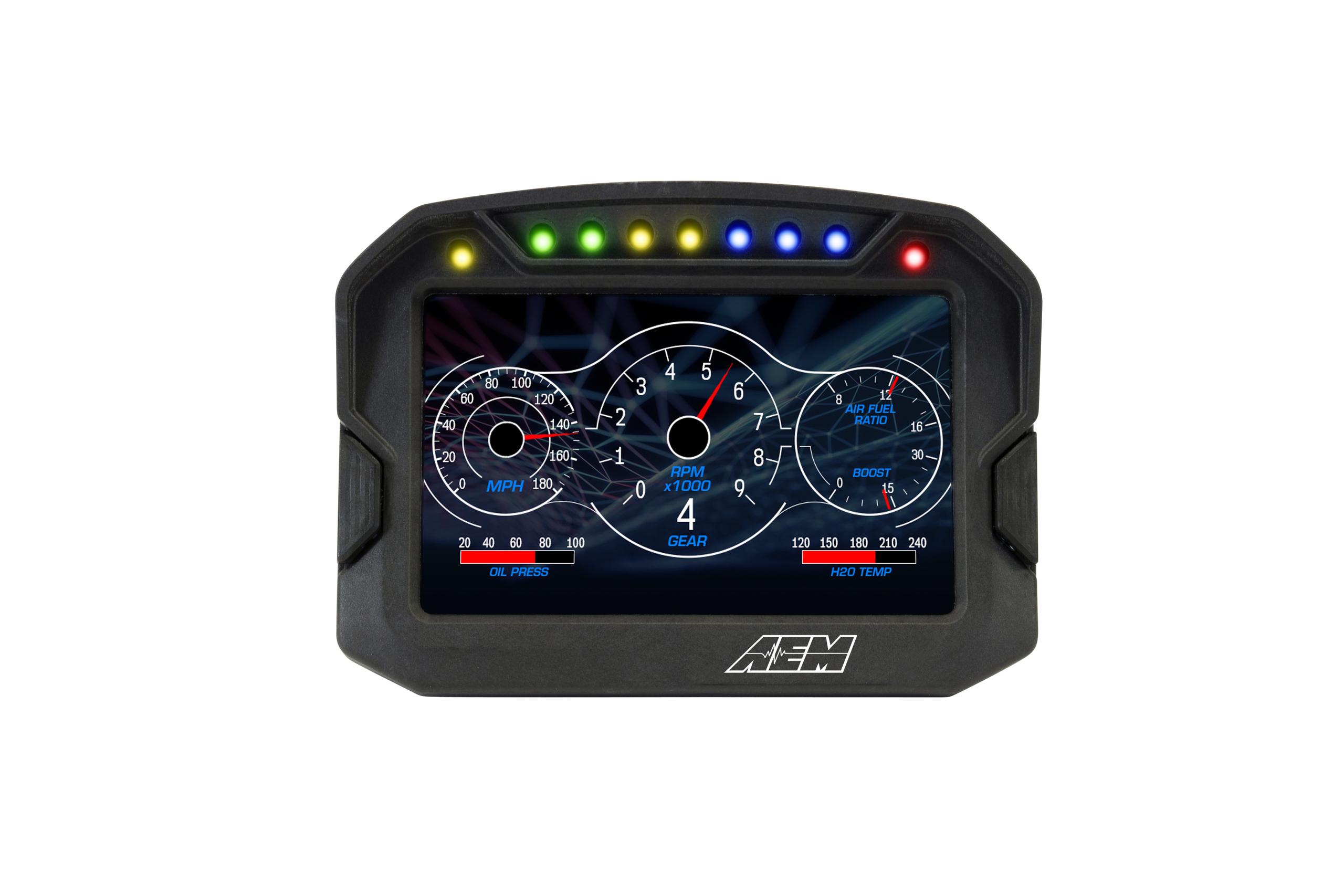

* Full-color, 5 in. screen
* Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)

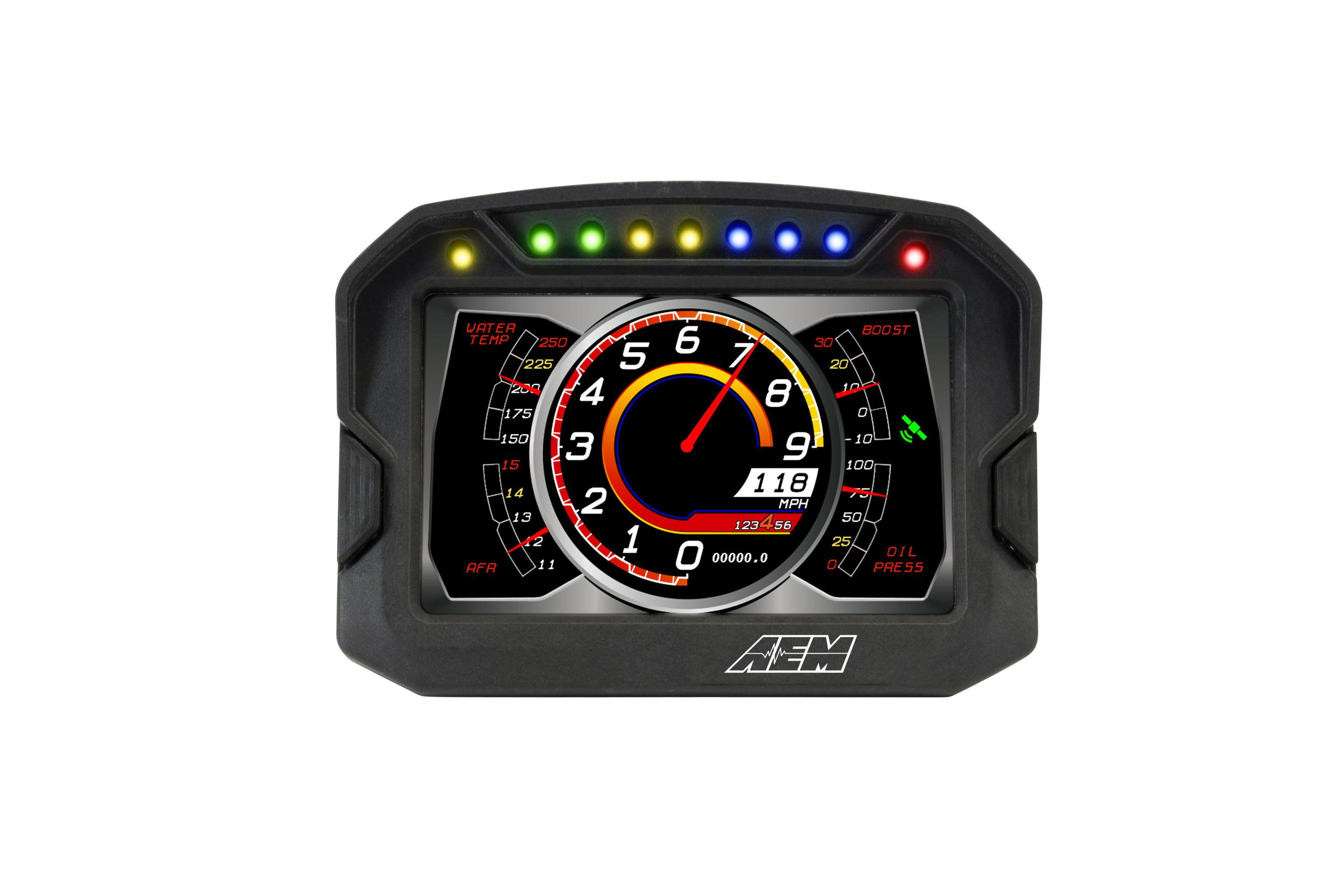

* Seven LED rpm/shift light indicators on top of the housing are
programmable and dimmable
* Layout files interchangeable with all versions of the CD-7

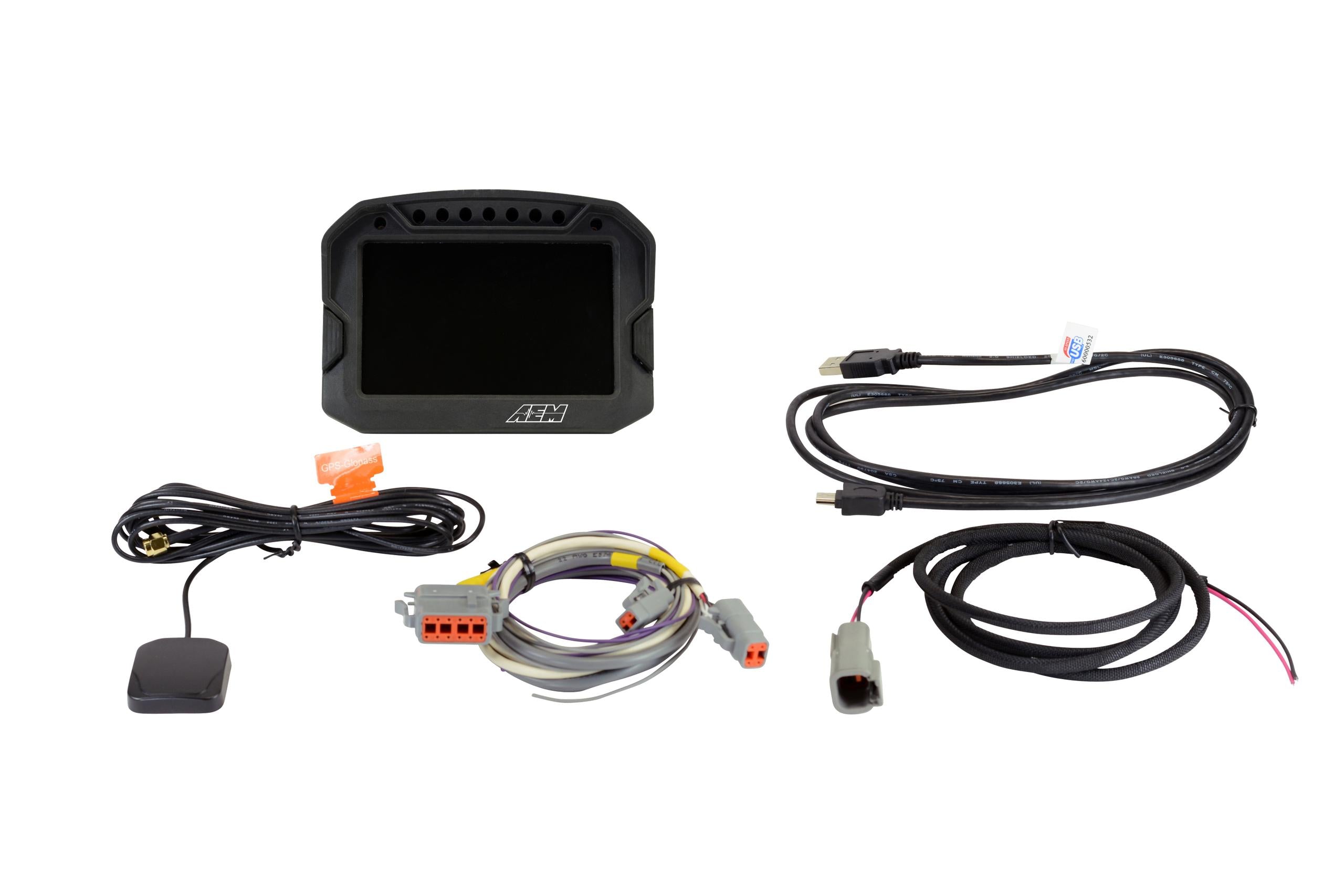

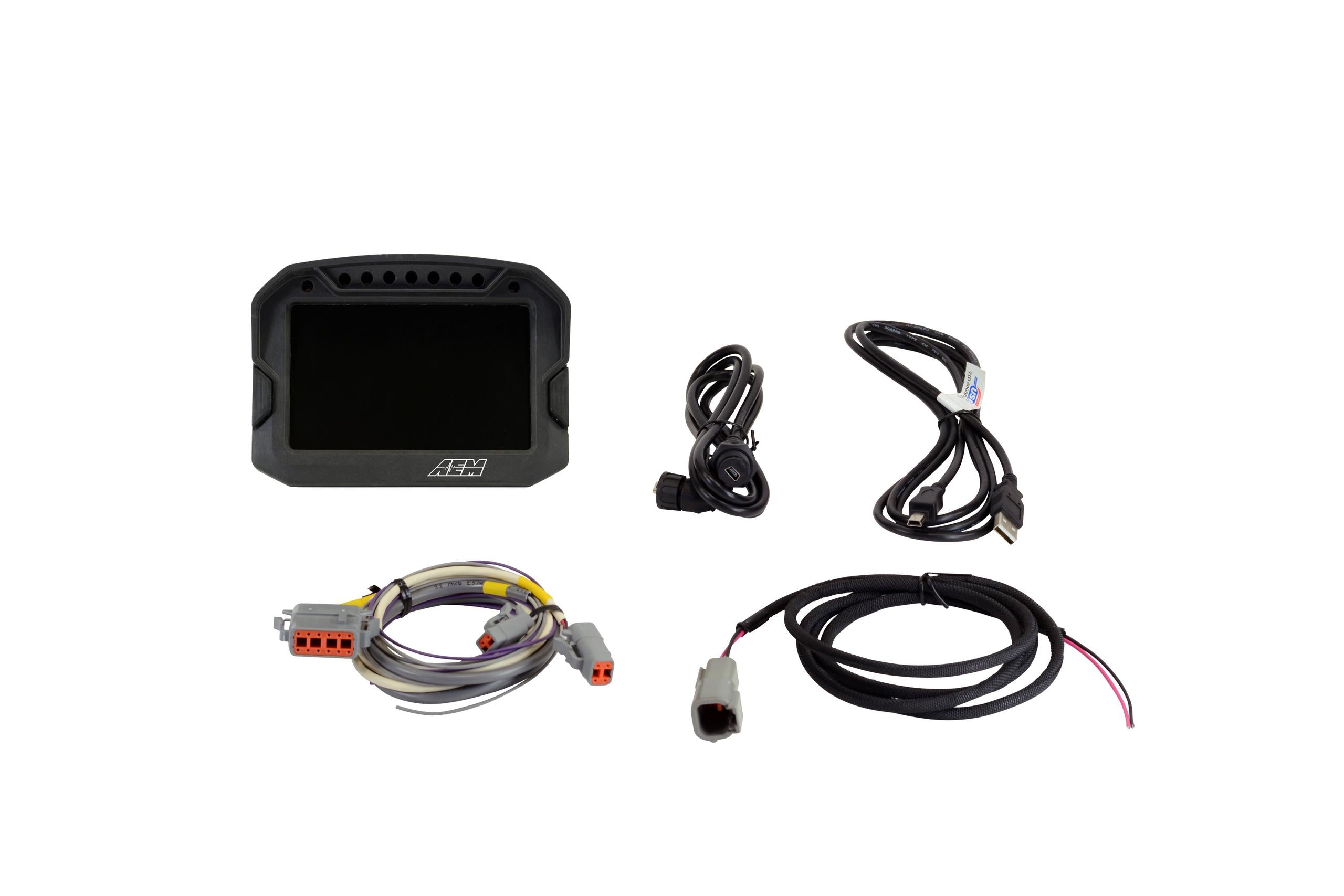

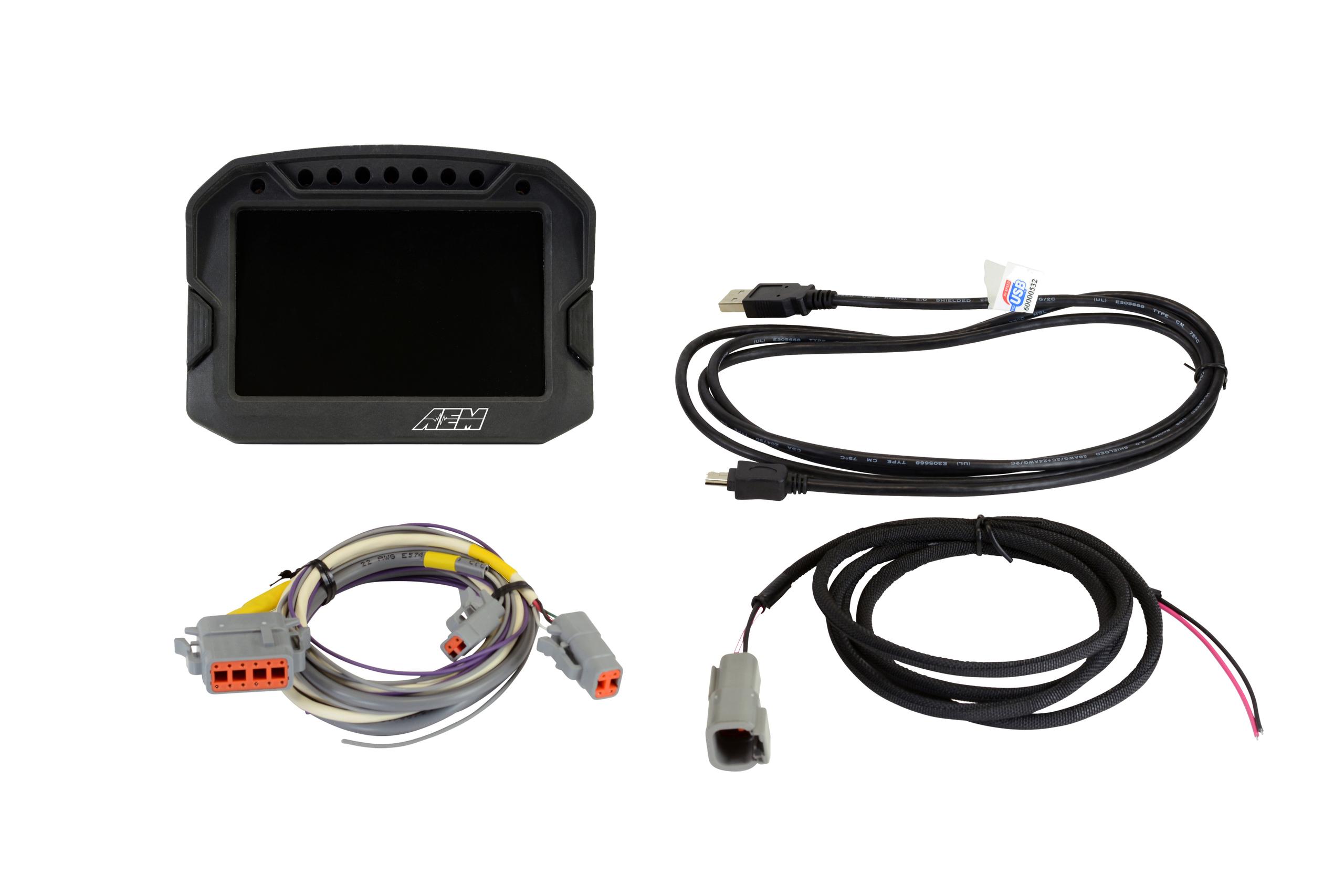

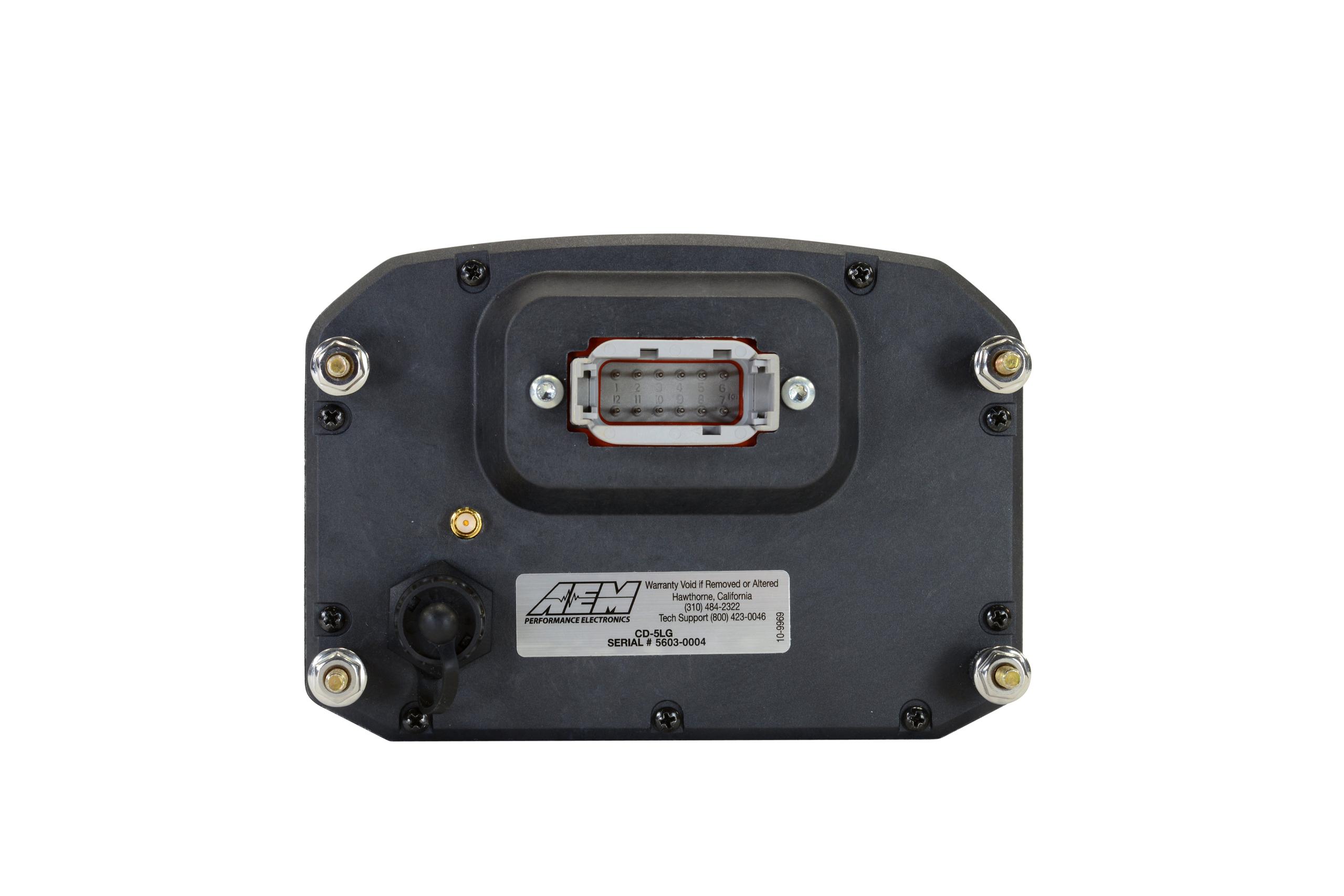

* Wiring interface/harness is identical to the CD-7

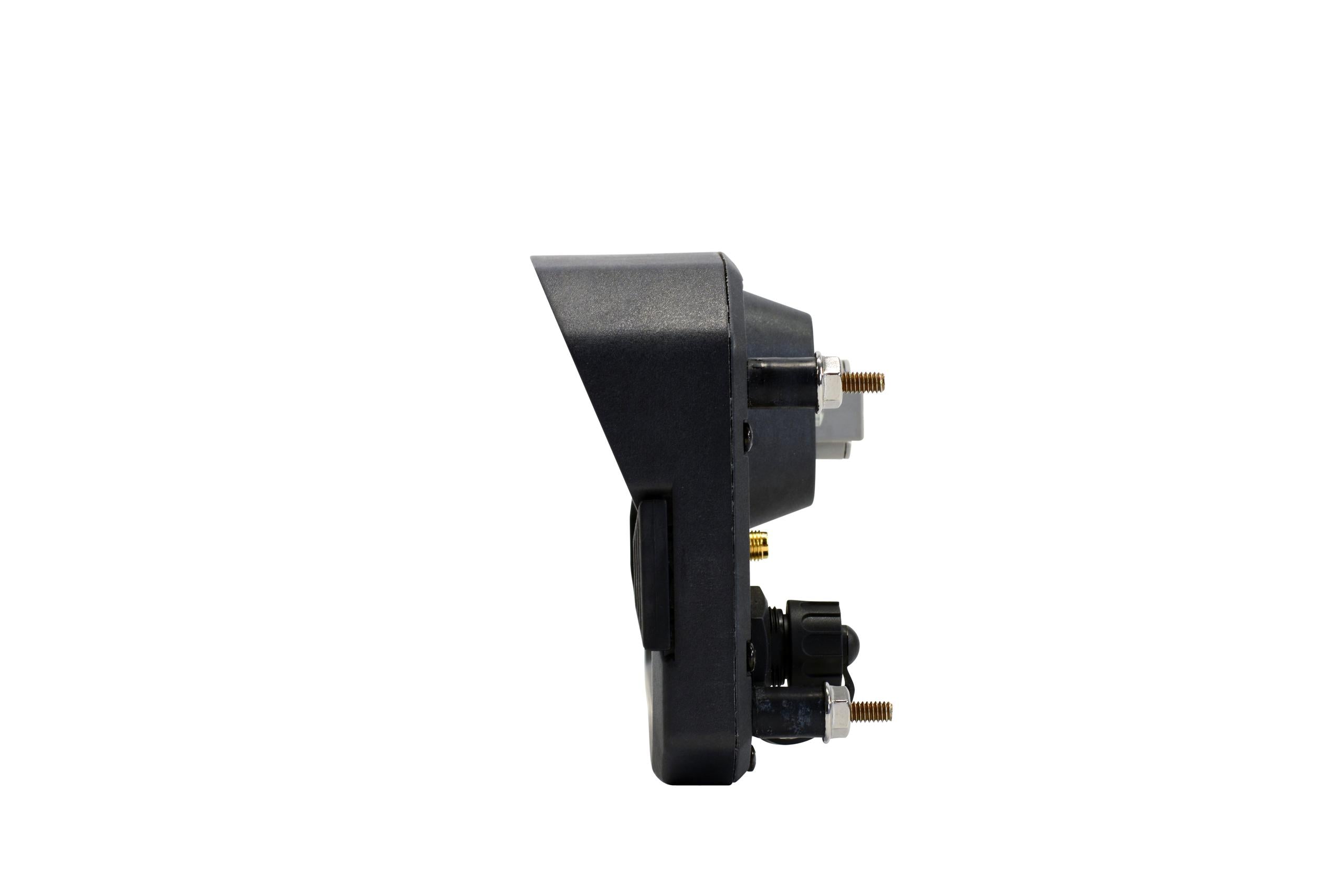

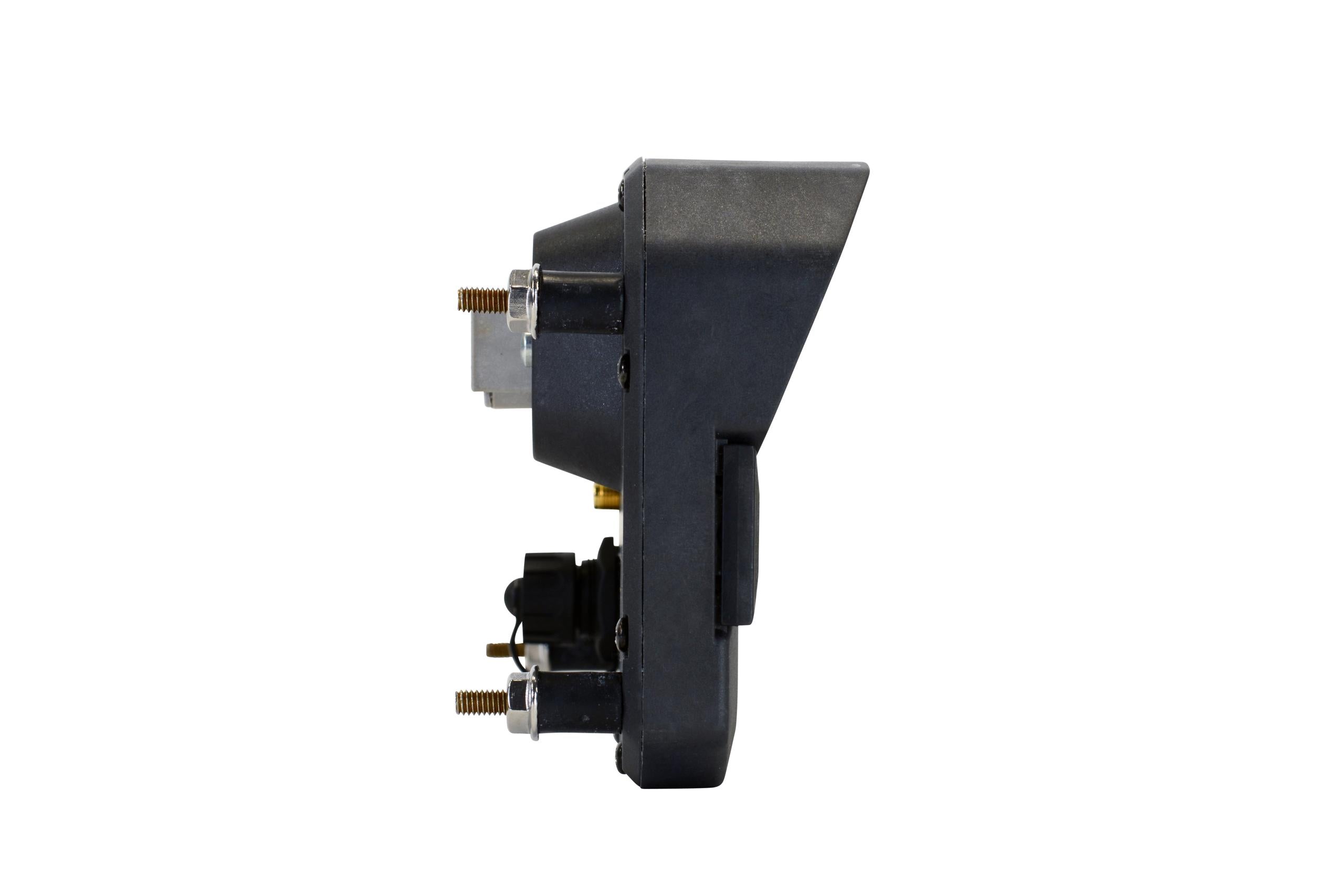

* Rugged, lightweight flow-molded carbon fiber composite enclosure
* Two additional programmable LEDs are located above toggle buttons on the
top of the housing on either side of the integrated LED shift lights
* IP66 water resistance allows for operation in boats and motorcycles
without worry

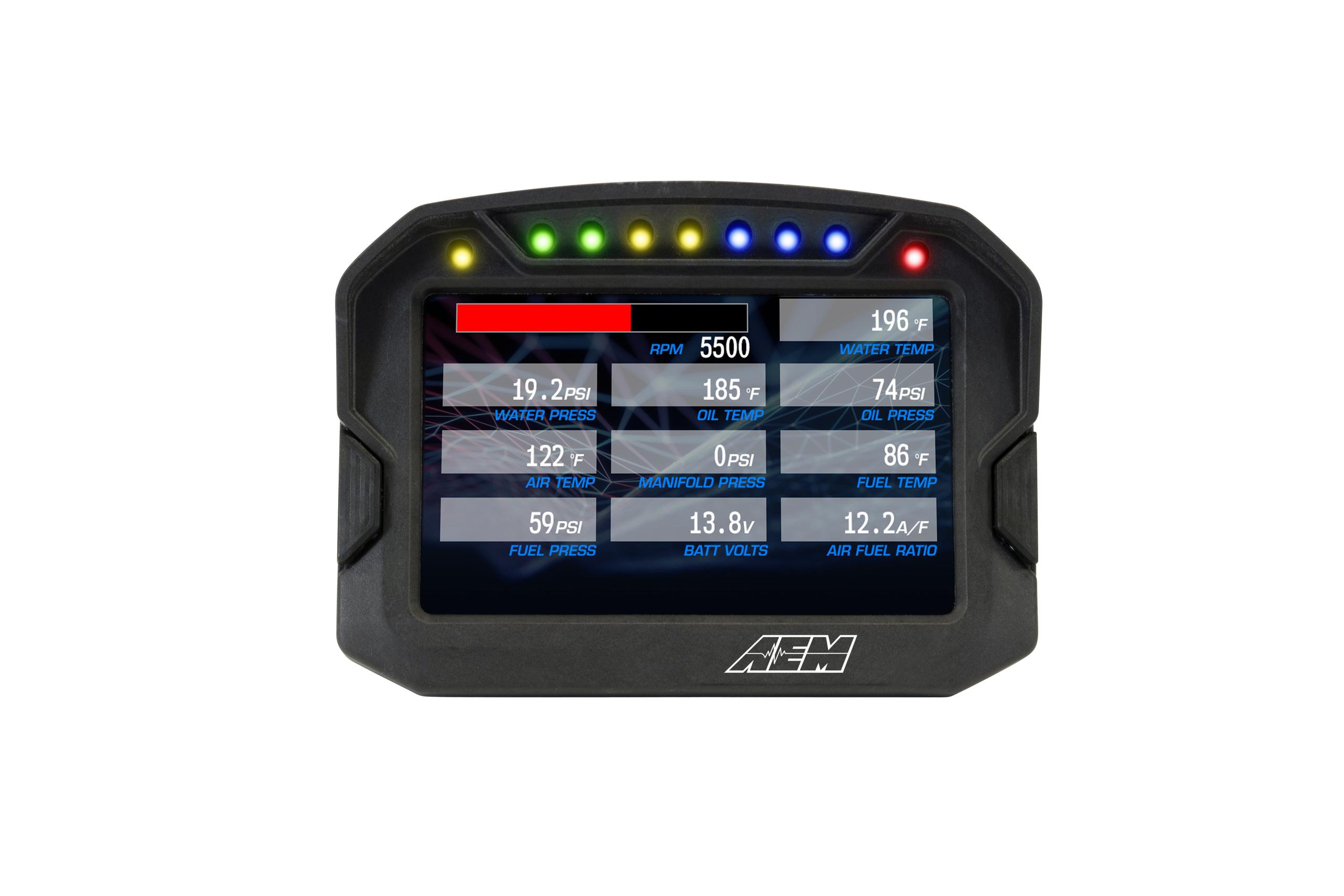

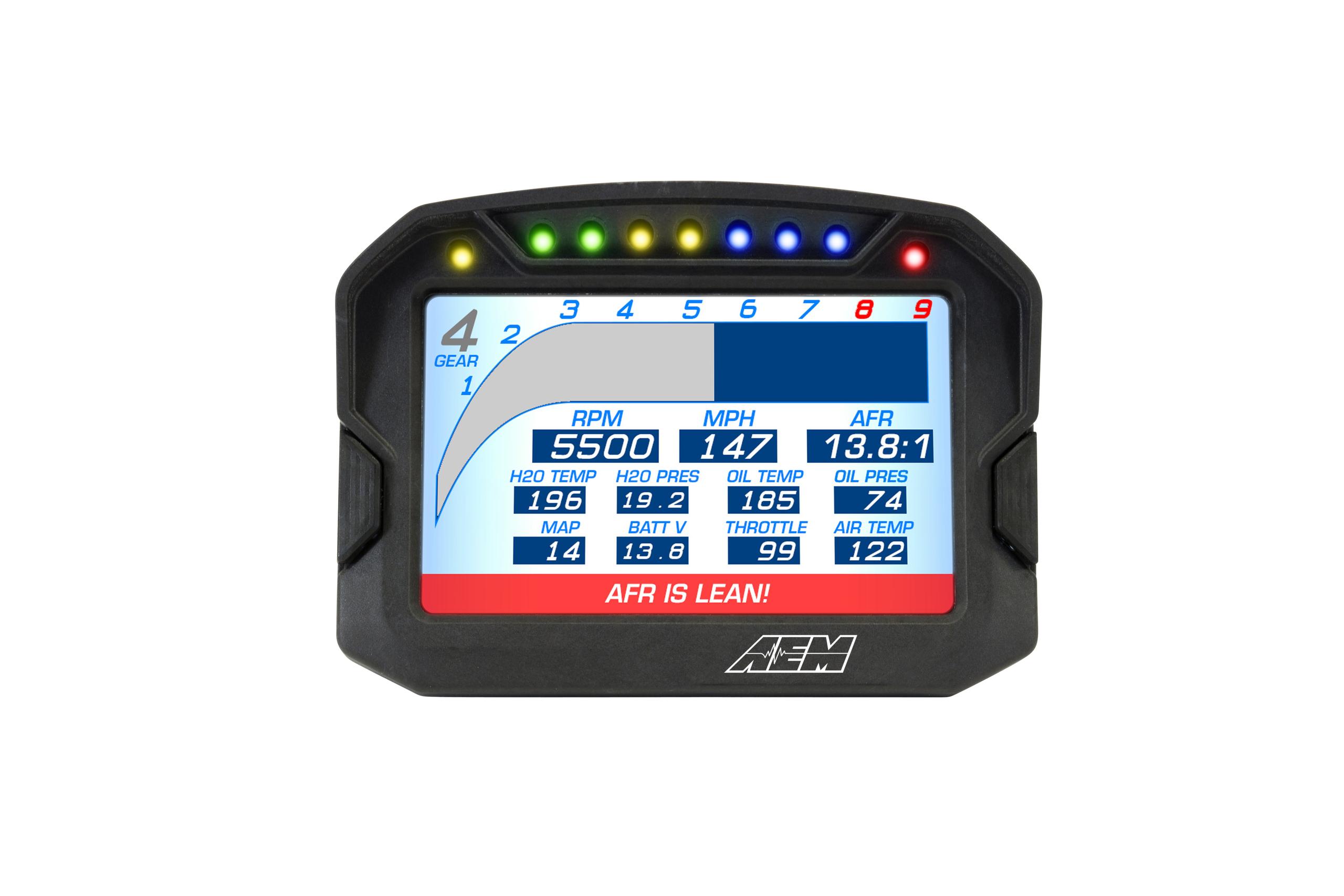

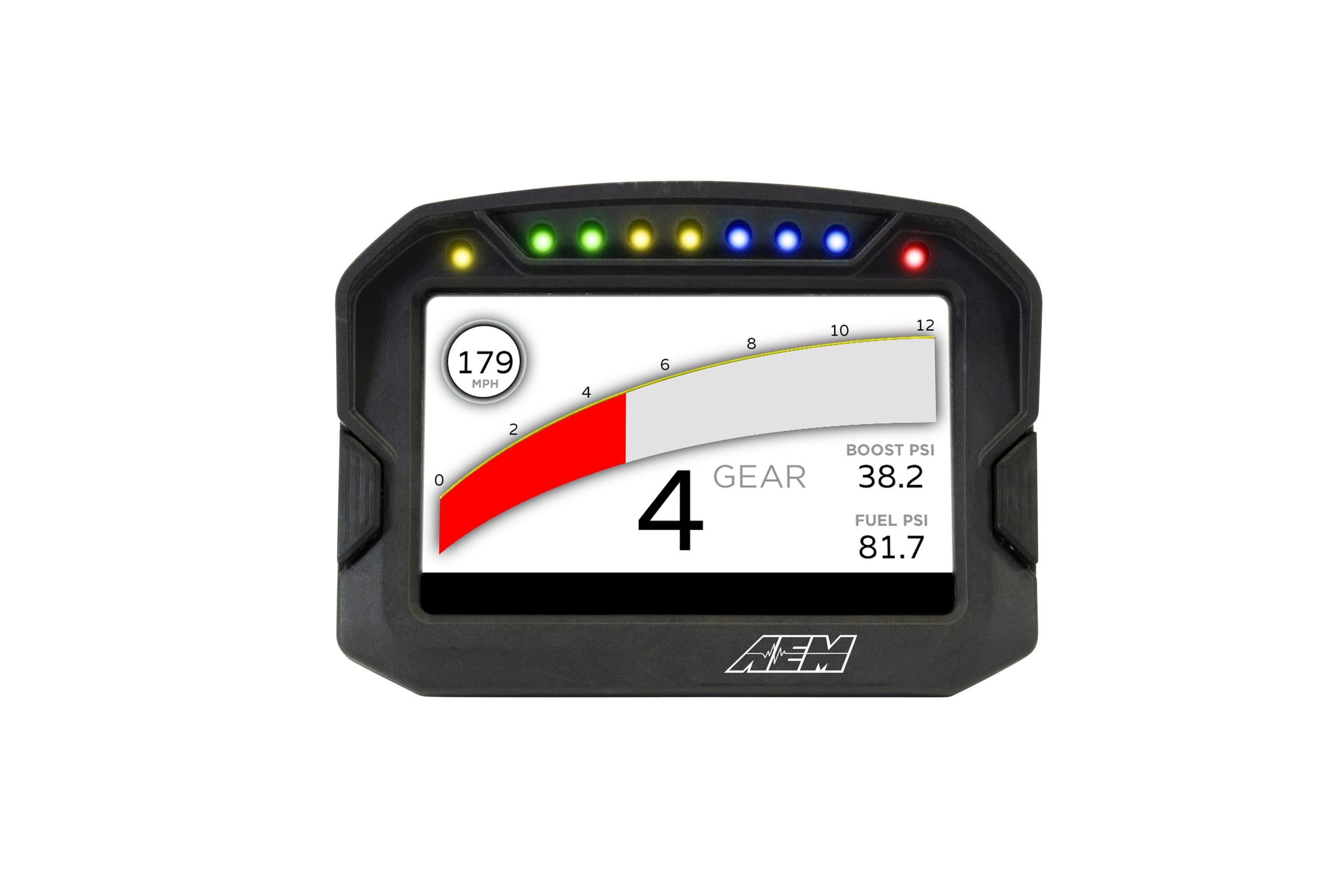

* Seven programmable pages, including four main pages, alarm, on-change and
start-up pages

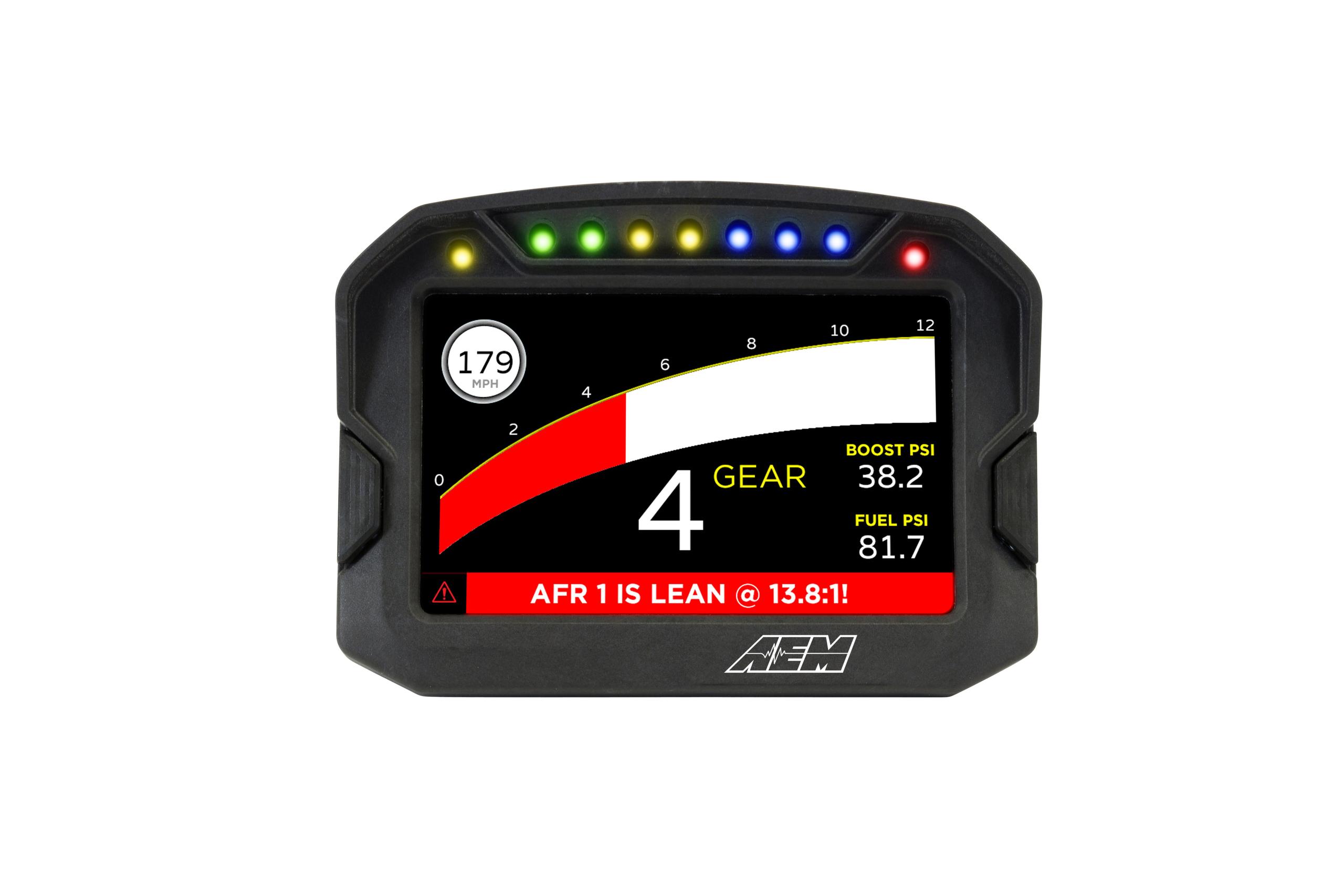

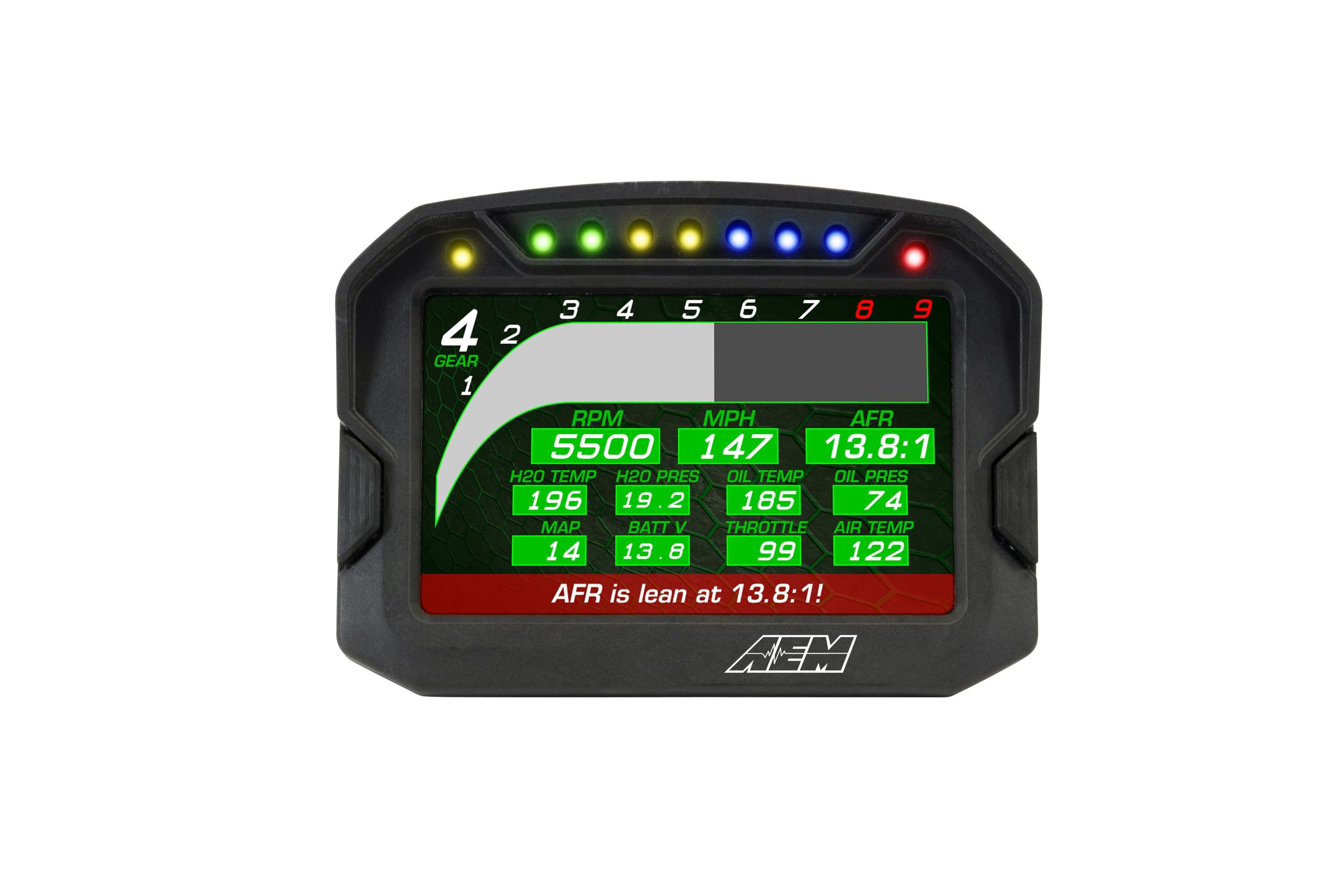

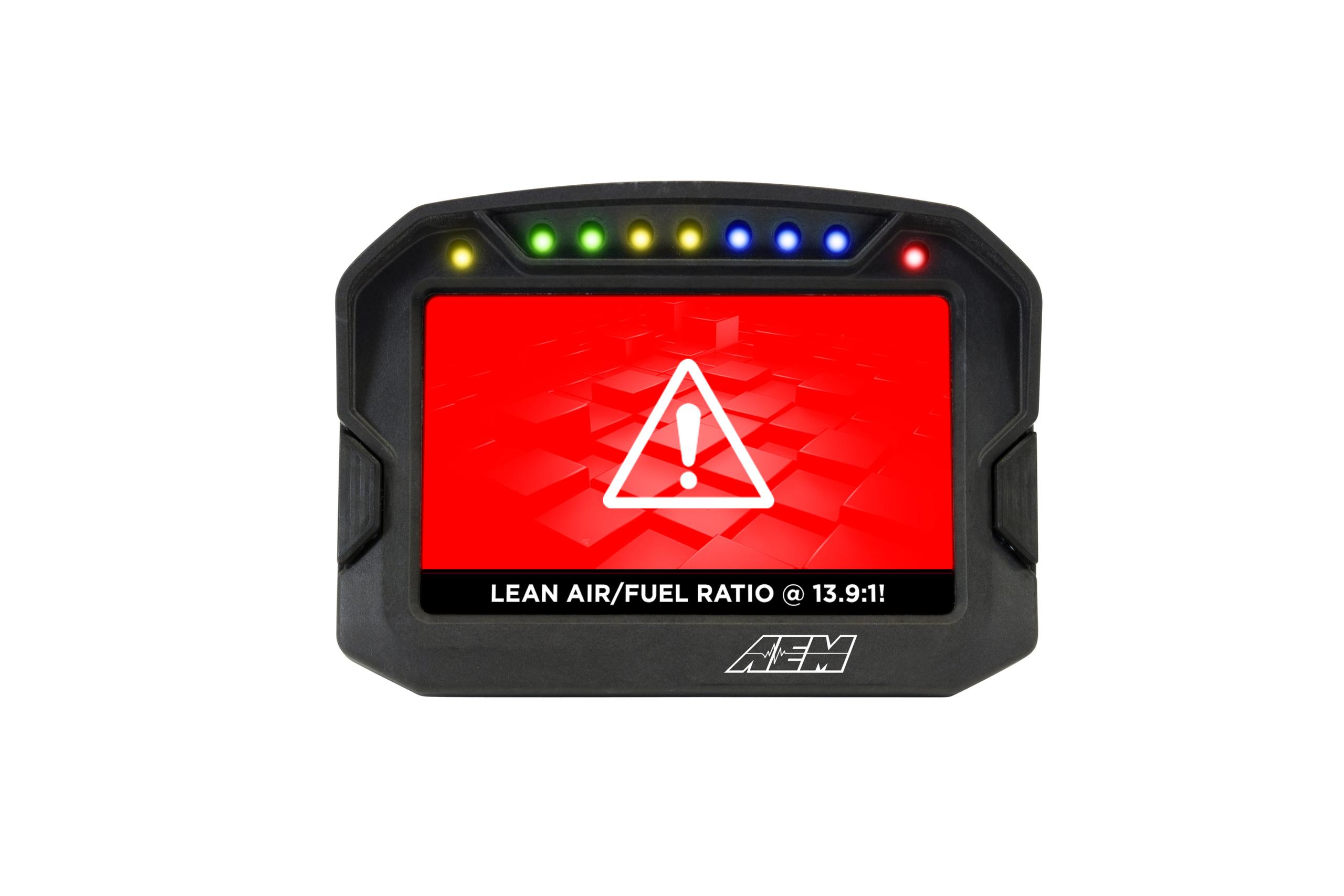

* Dedicated alarm page quickly identifies problems, and is programmable in
almost any language (user defined)
* Unique On-Change page can be used to identify map switching for boost,
traction, lap times, etc.
* Convert CAN bus channel values to user-defined text in multiple languages
* Available with or without 200Mb internal logging (up to 1,000Hz/channel)

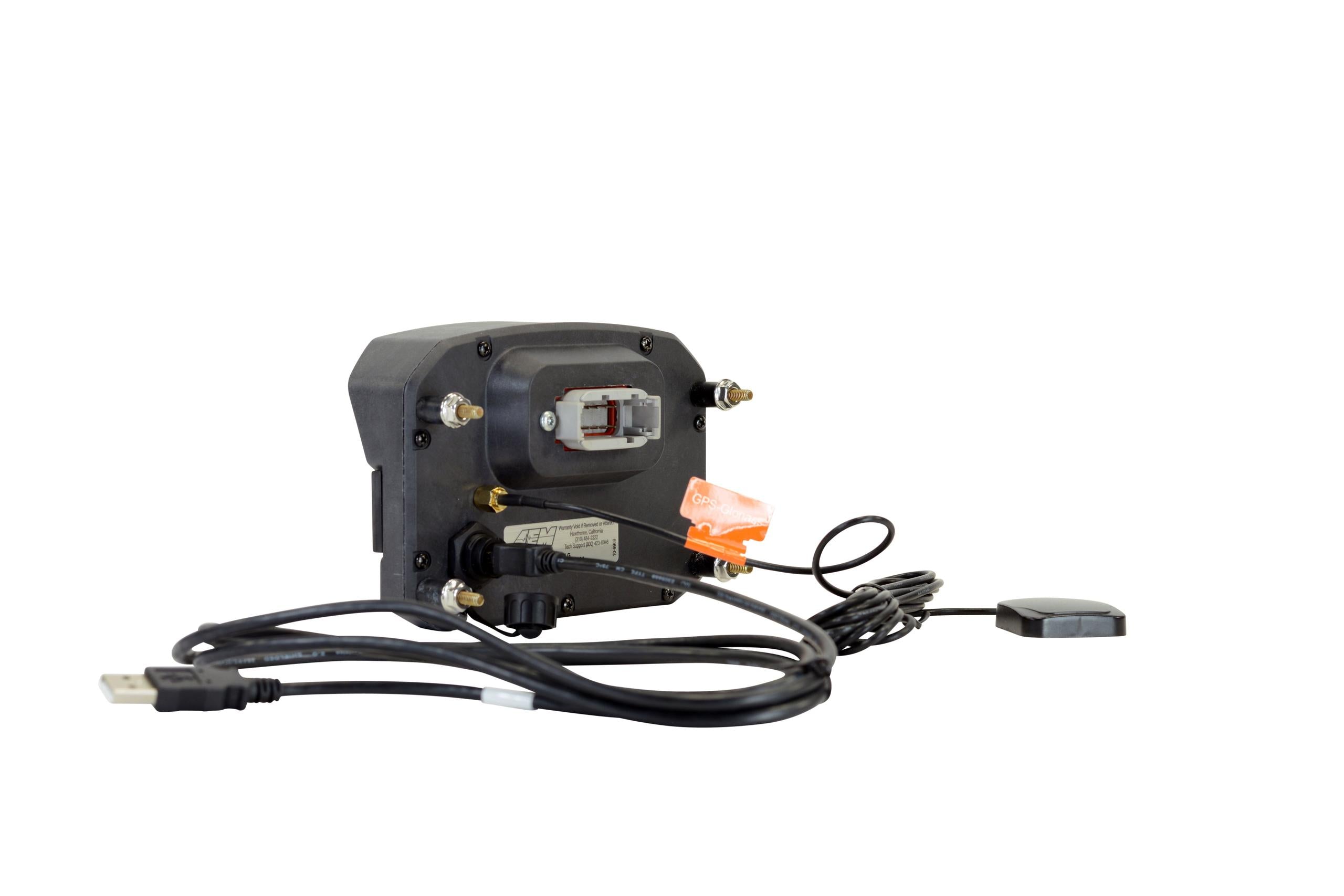

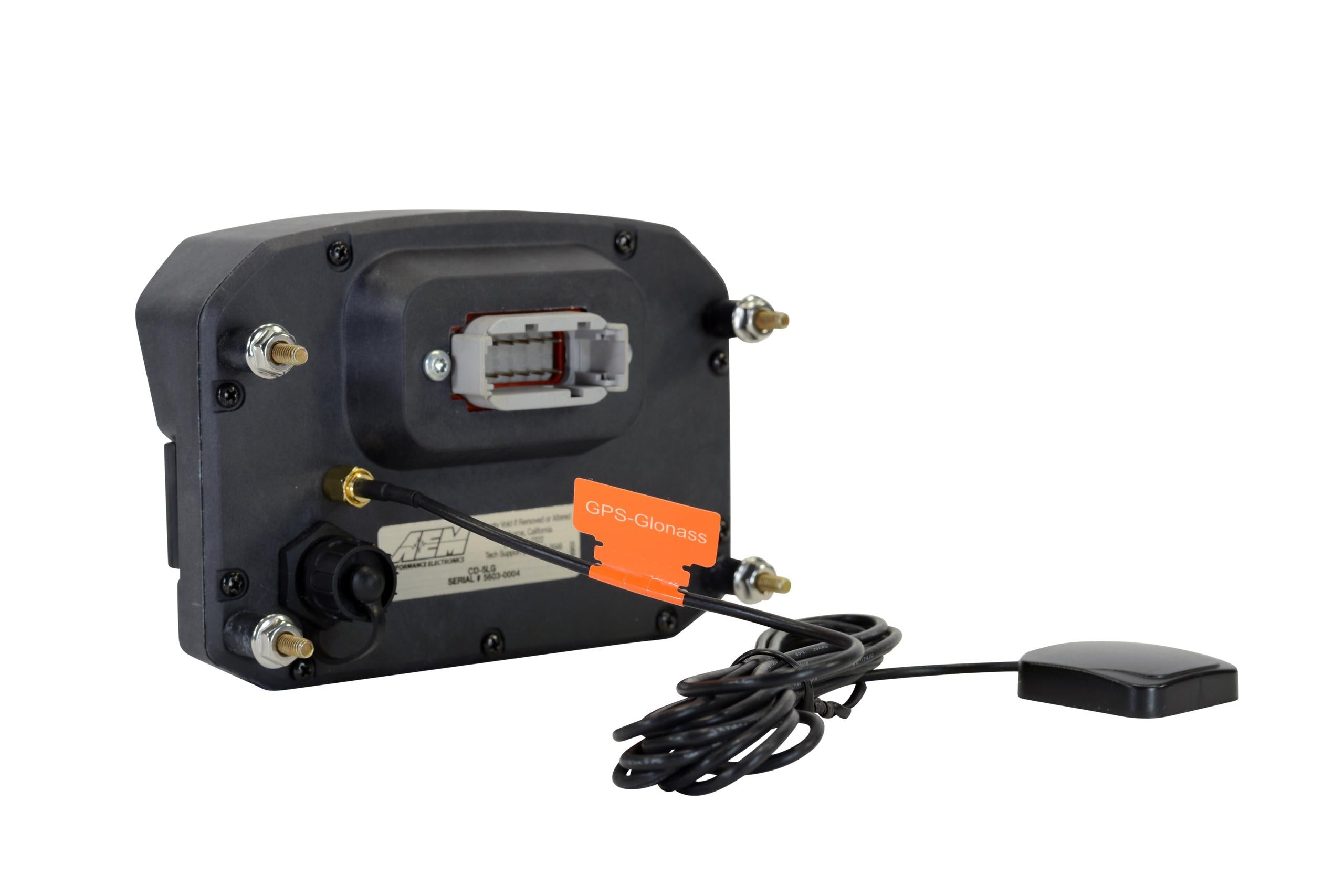

* Available with or without on-board GPS receiver and antenna

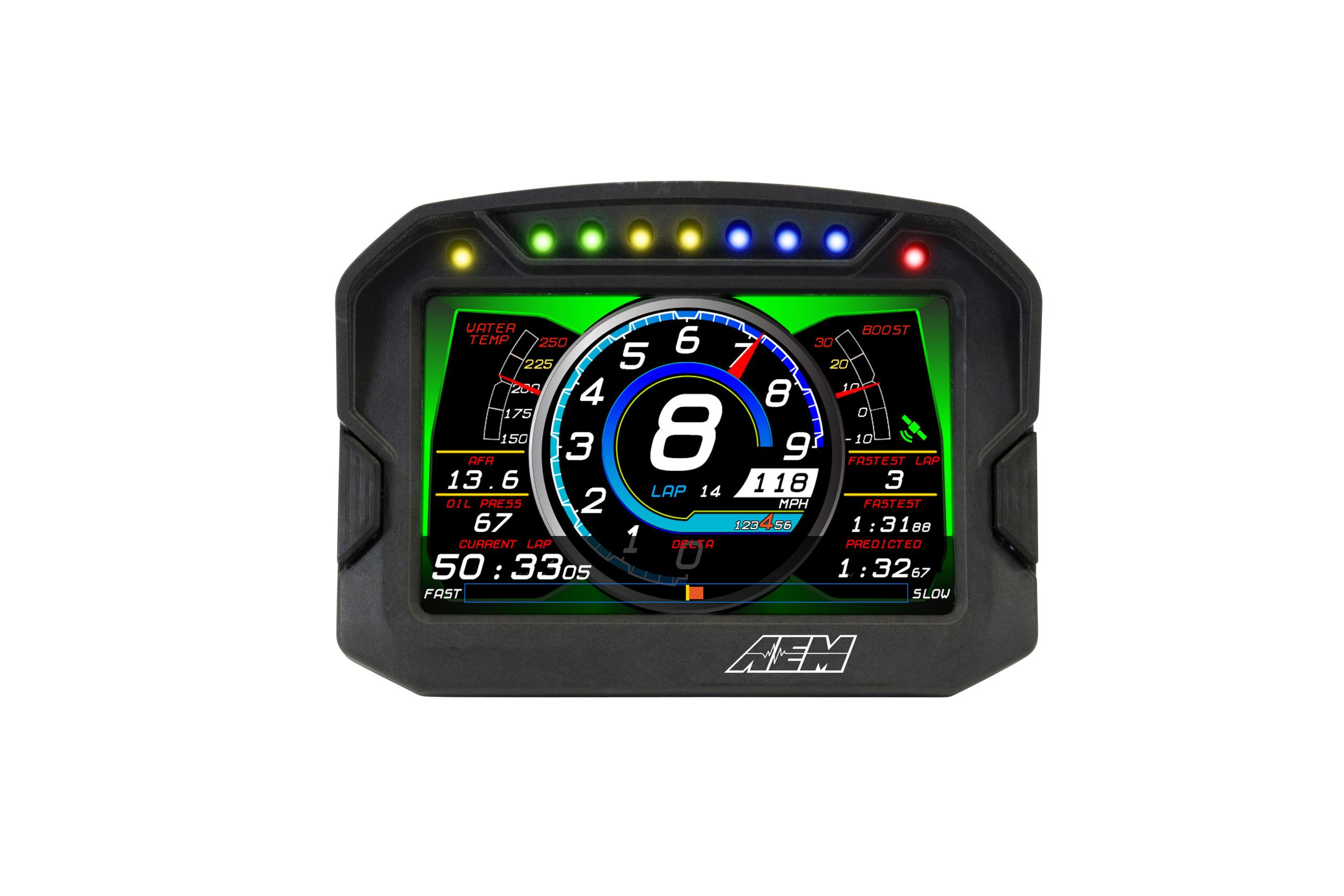

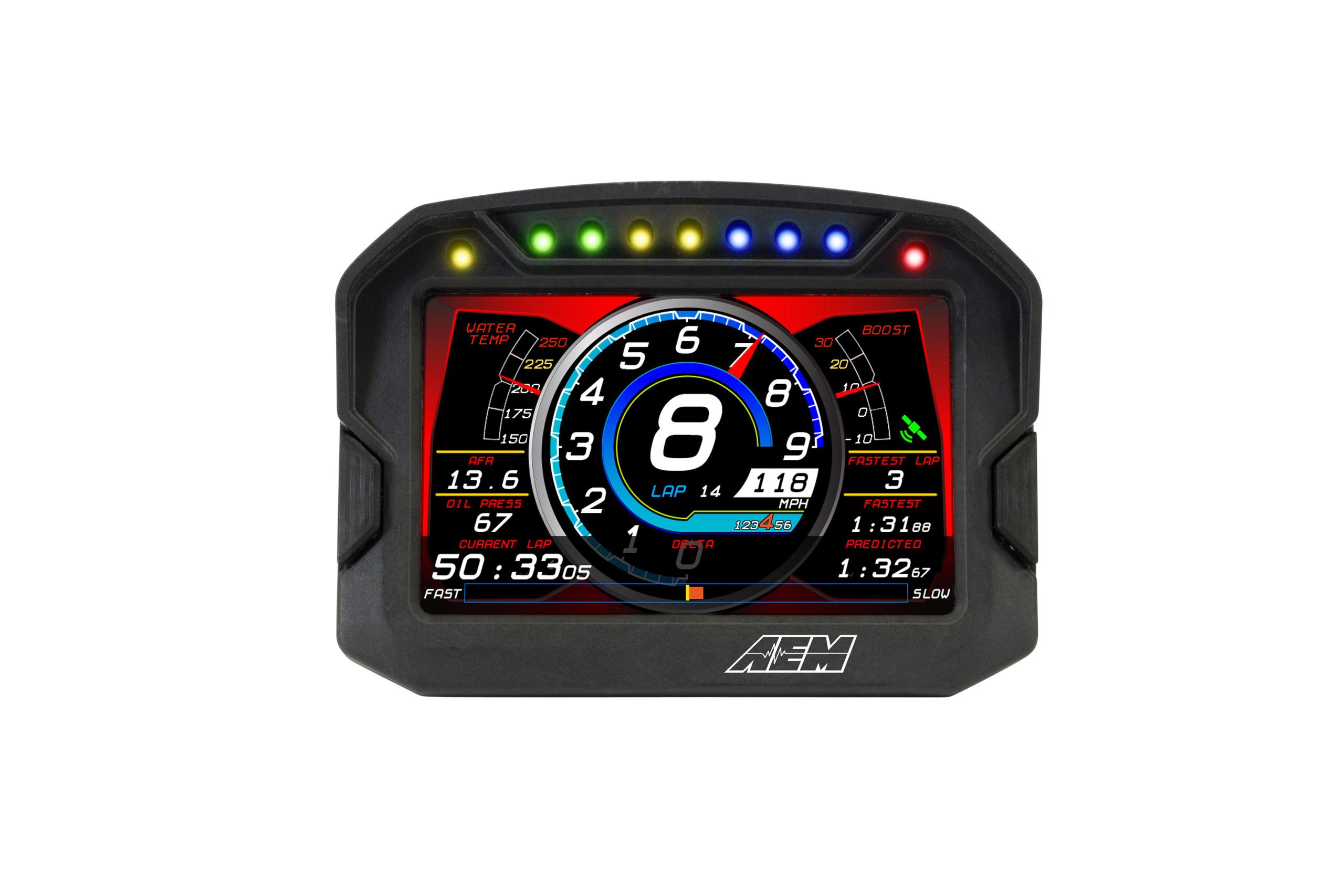

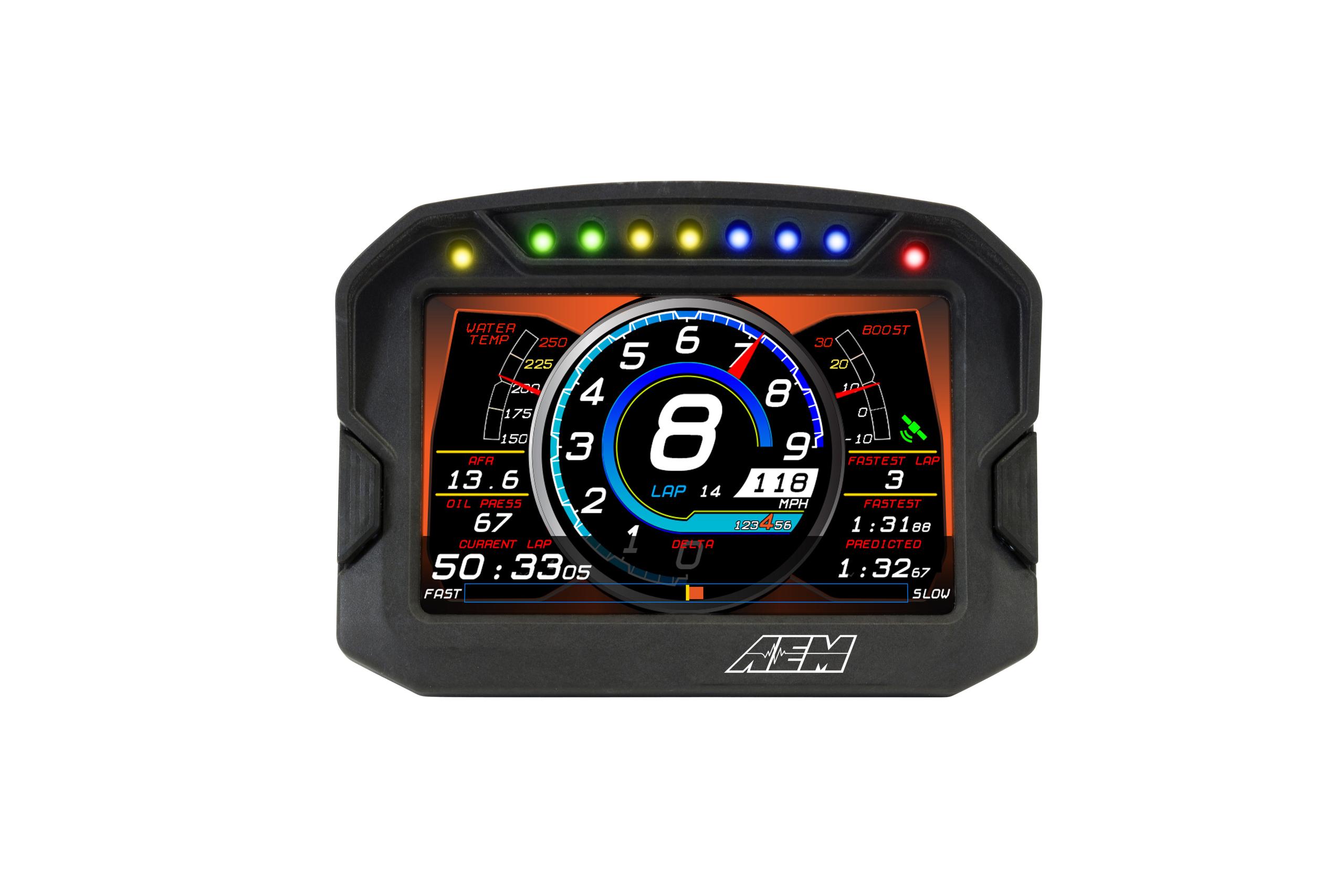

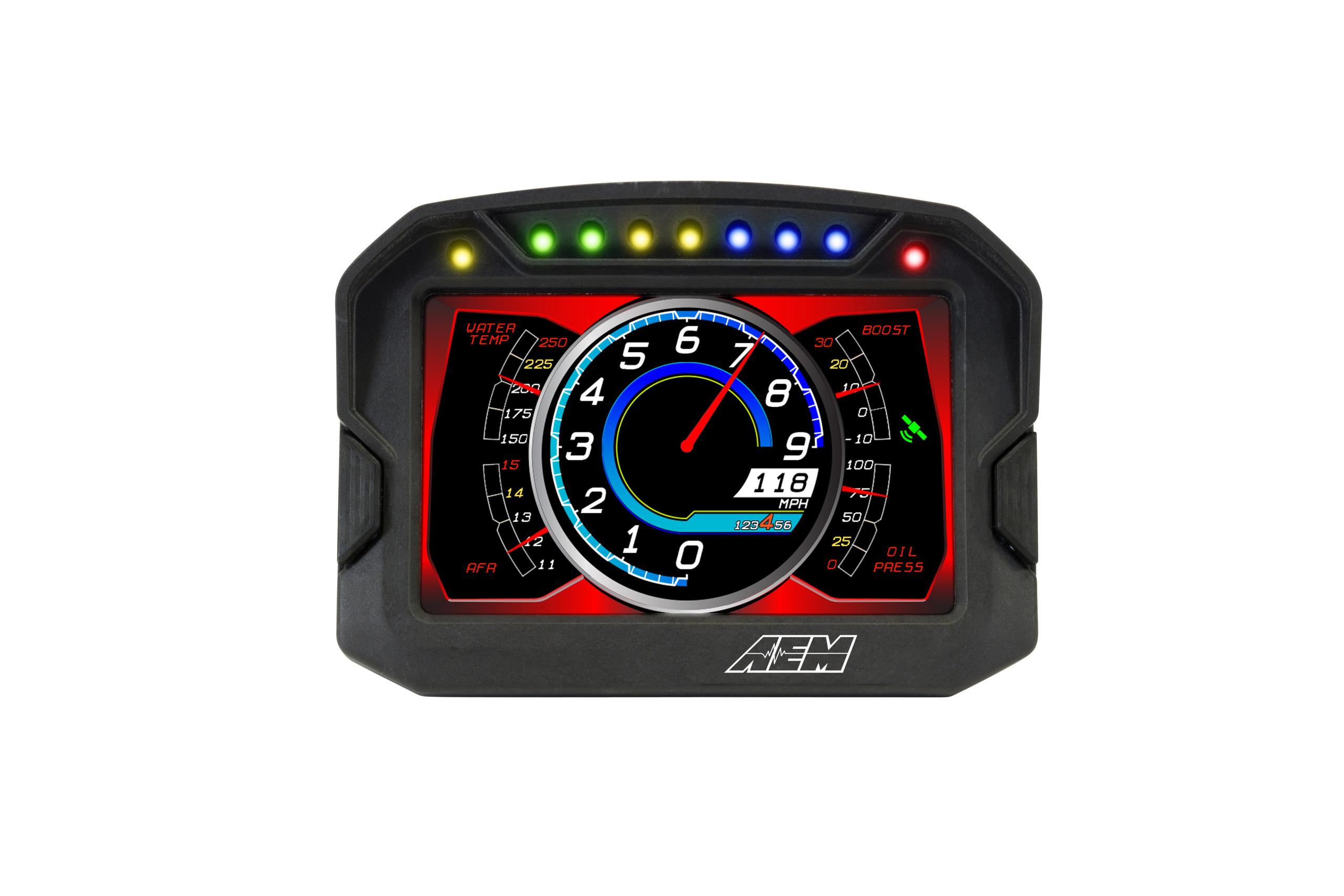

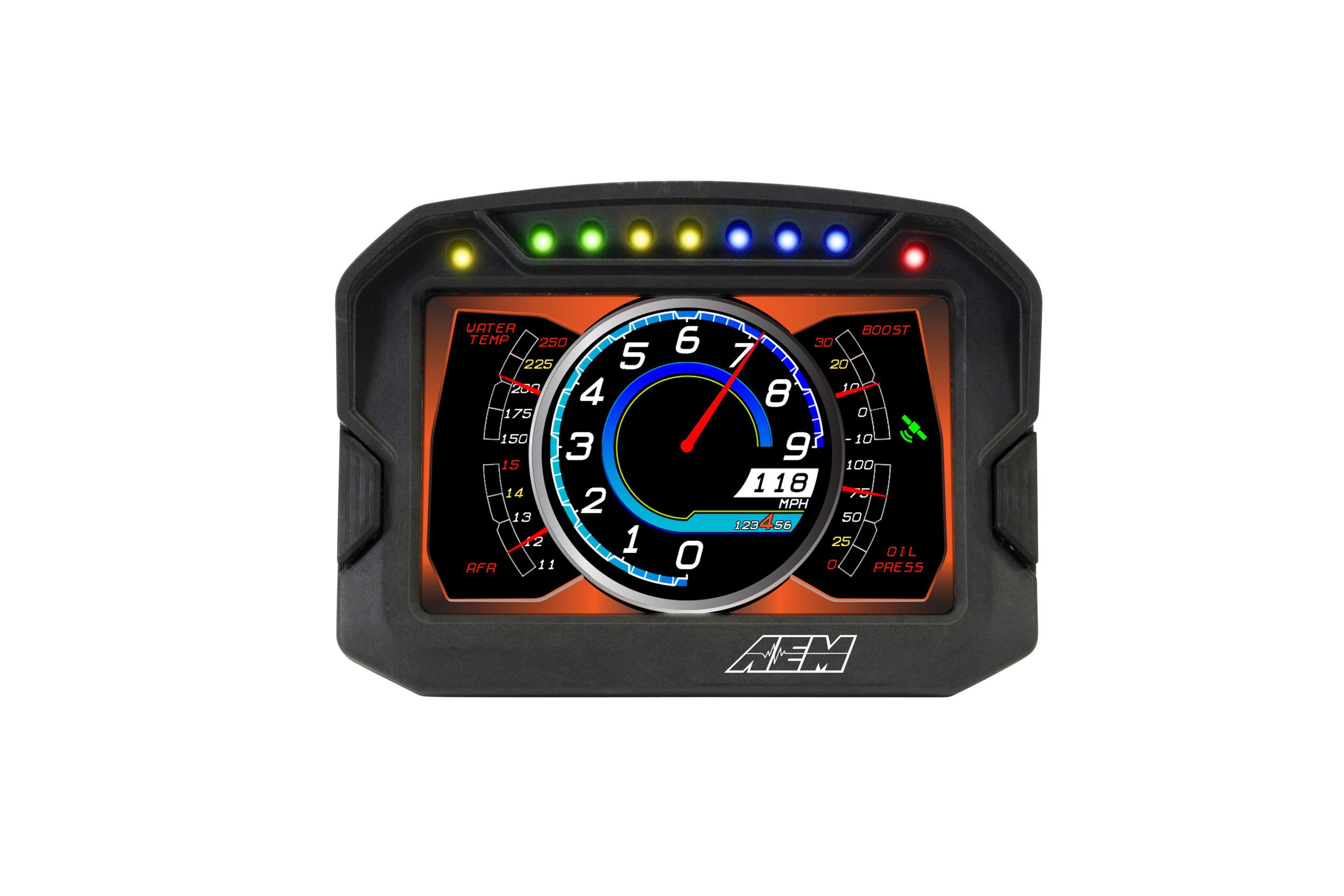

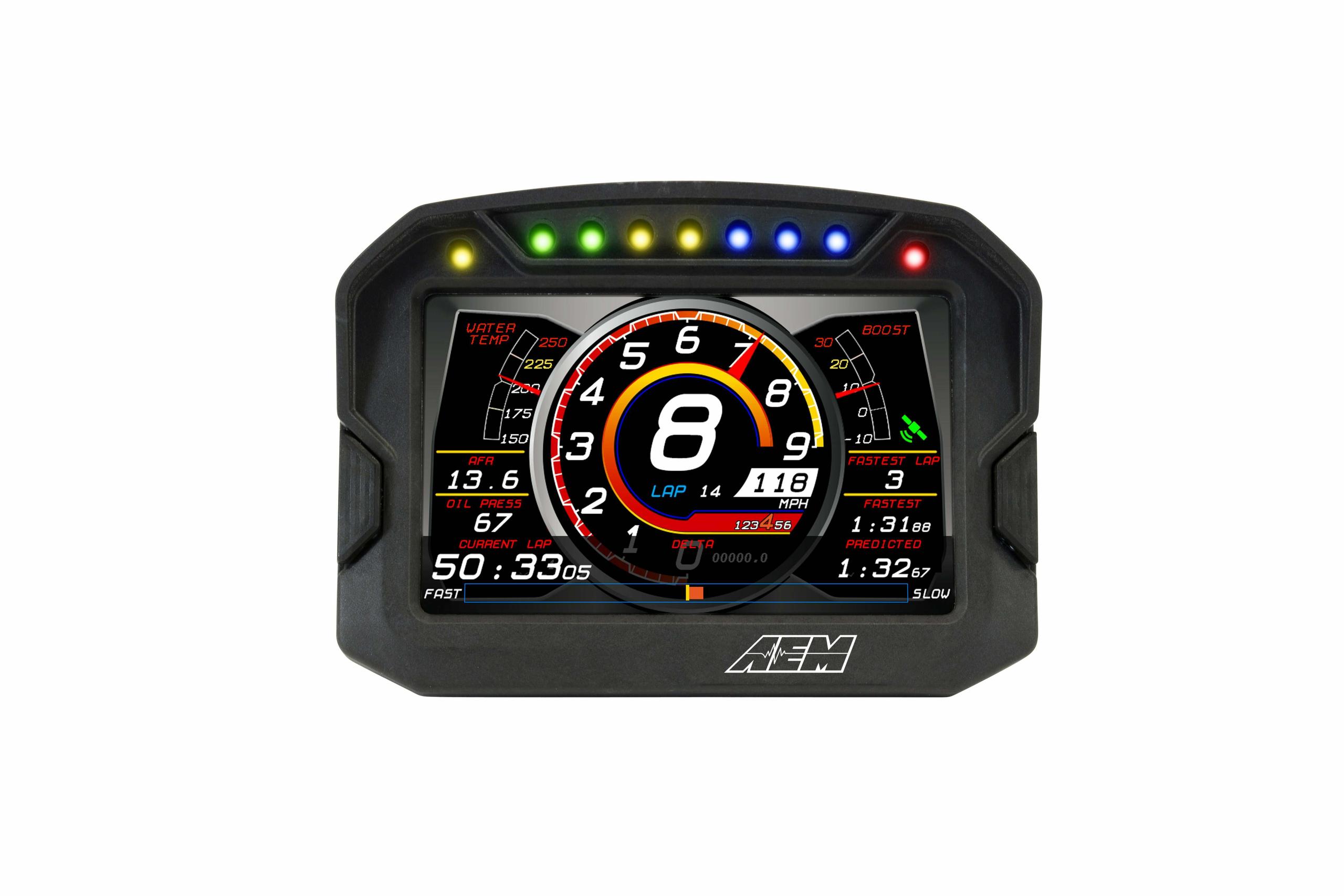

* Use included page layouts and input your channels and text, or create
your own from scratch
