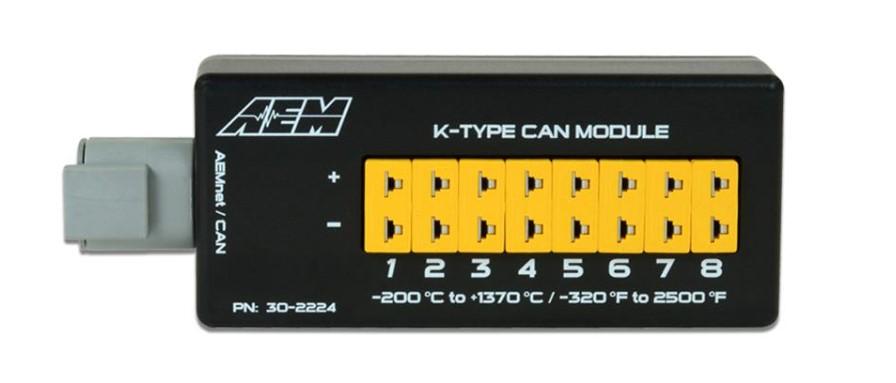

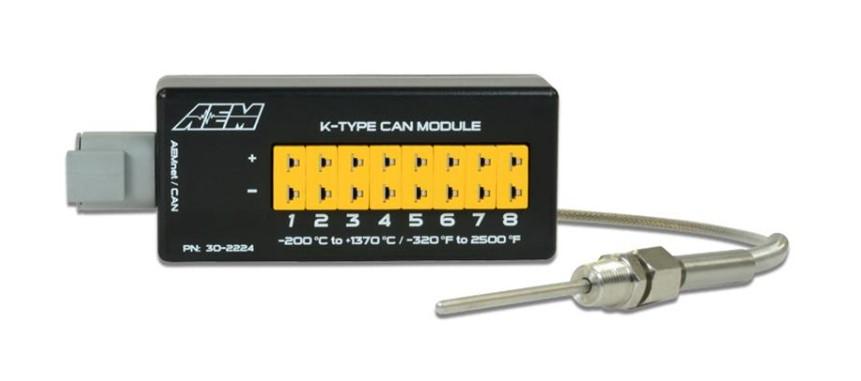

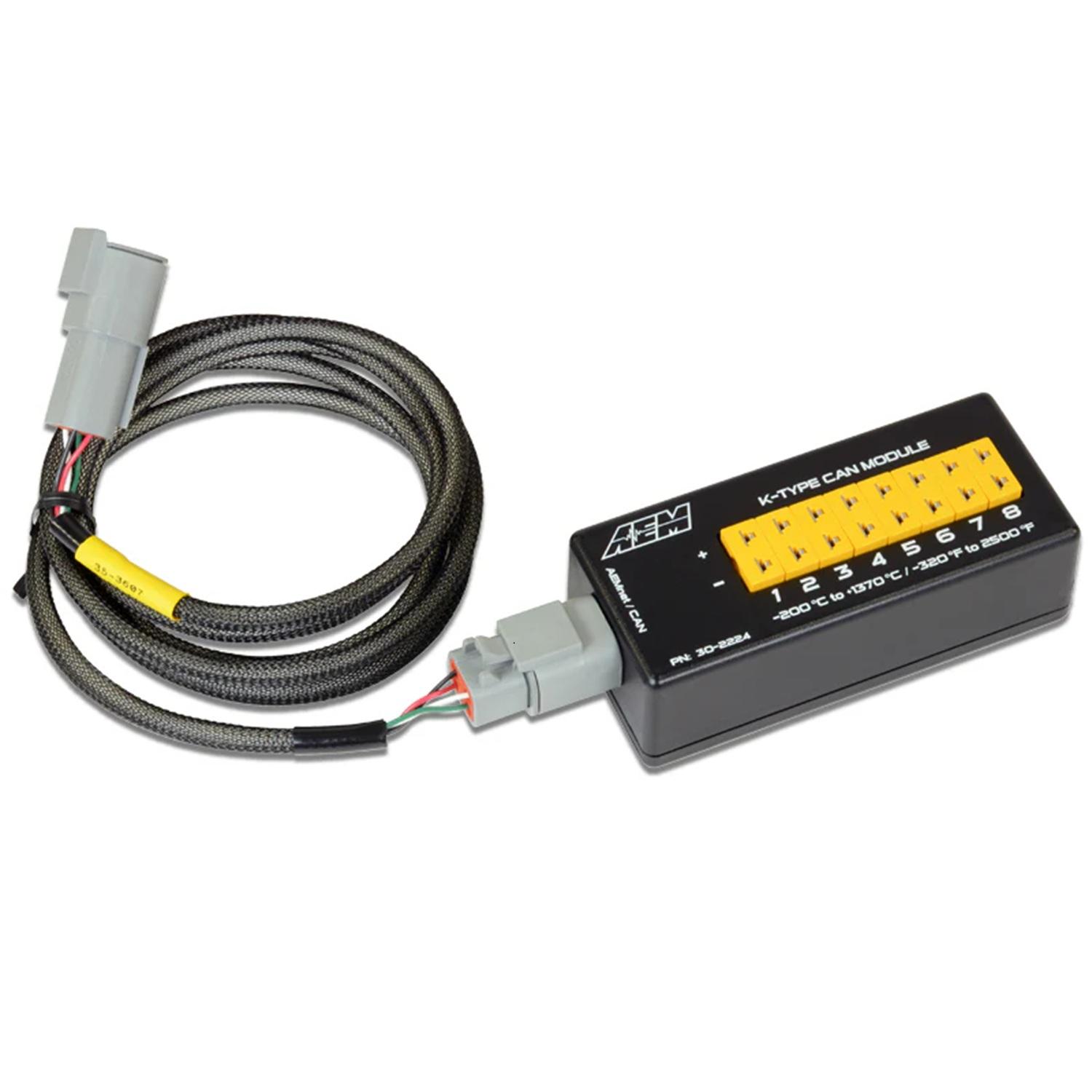

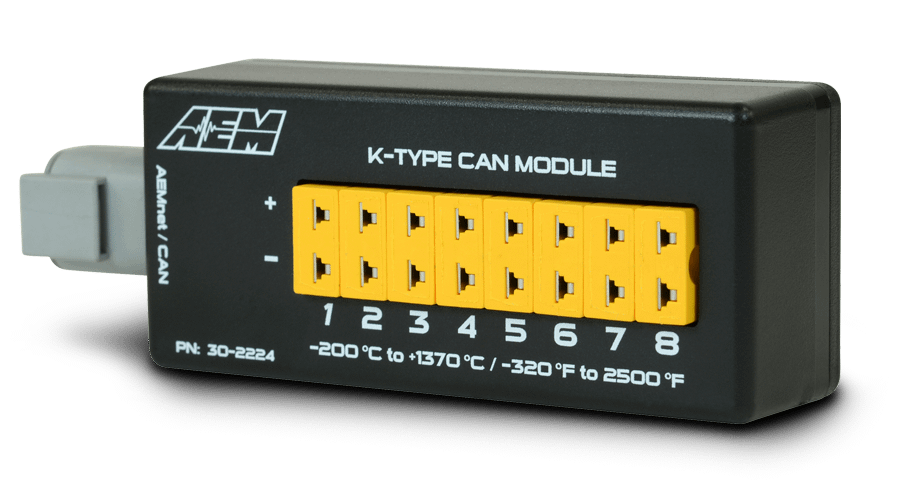

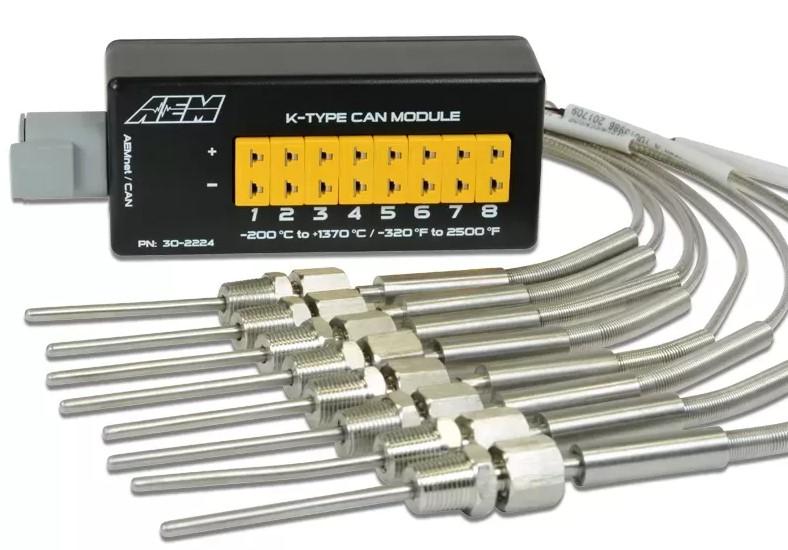

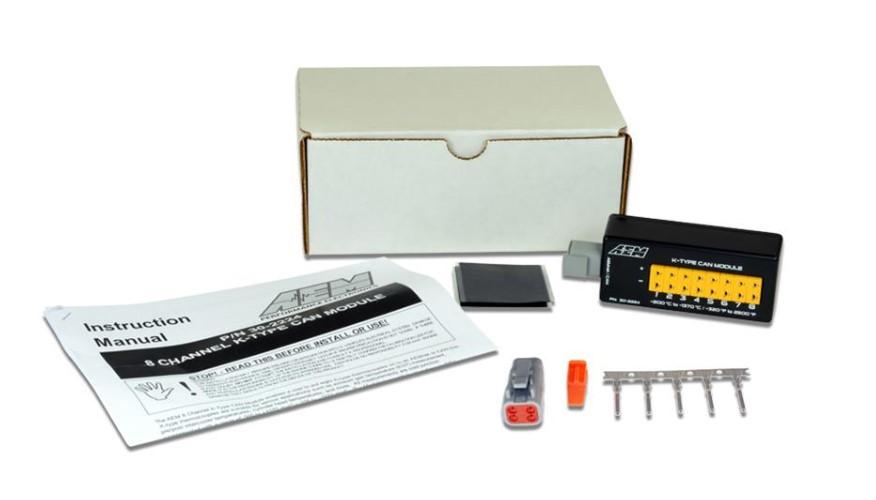

AEM 8 Channel K-Type Thermocouple EGT CAN Module - 30-2224
AEM Electronics 8-Channel K-Type EGT CAN Modules
The AEM Electronics 8-Channel K-Type EGT CAN module uses an integrated
cold junction sensor to ensure lab-grade temperature readings across all
eight channels. It has the ability to read better than one percent full
scale, even at the extreme temperature range (-328 to 2,501 degrees F). The
module also includes open circuit/fault detection to notify you if a sensor
loses its connection or needs to be replaced. This unit will work with
non-AEM devices with configurable CAN bus. The module utilizes flexible CAN
configuration jumpers, which allow it to be used with just about any third
party devices.
Features and benefits include:
* Includes 8 K-type thermocouple inputs to accept common K-type
thermocouple sensors
* Uses common miniature thermocouple sockets
* Daisy-chain two modules together for up to 16 temp inputs through a
single plug
* Outputs all channels via configurable CAN bus via one-plug connection
* Cold junction compensated for lab-grade accuracy
* Temperate resolution 0.18 degrees F
* Integrated open circuit/fault detection
