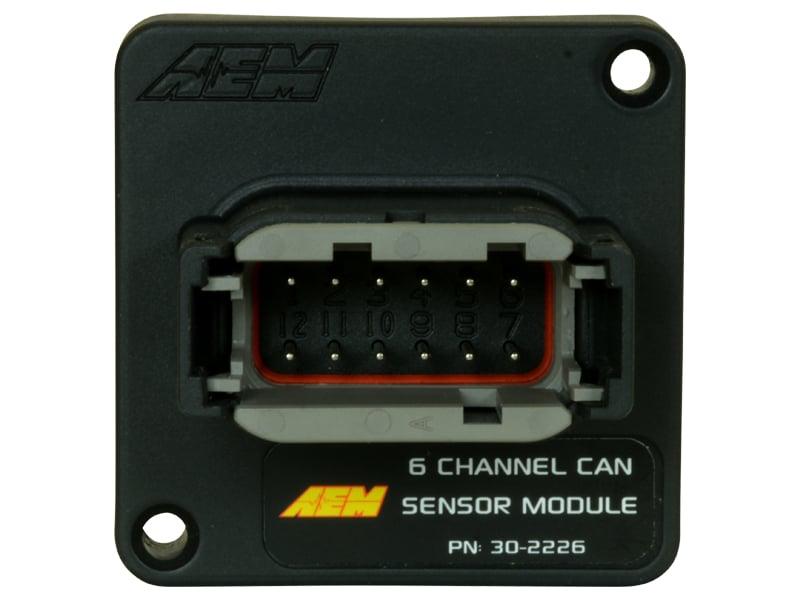

AEM 6 Channel CAN Module - 30-2226
AEM Electronics 6-Channel CAN Sensor Modules

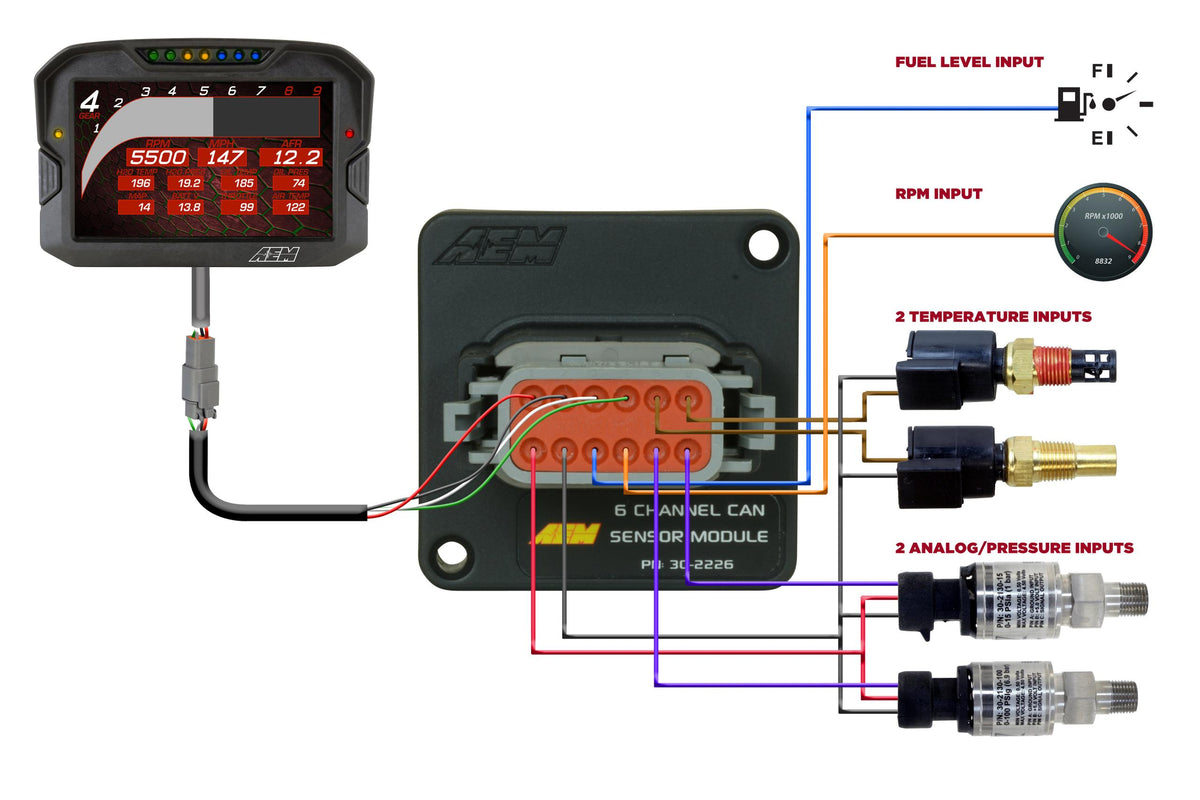

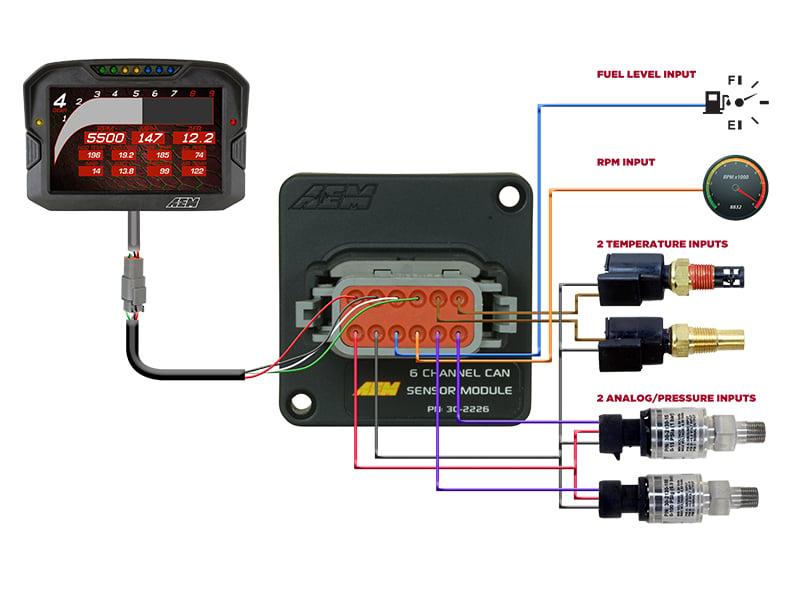

AEM Electronics 6-Channel CAN sensor modules provide an affordable and
easy way to add temperature, pressure, fuel level, and tachometer signals
on to your CD Carbon Digital dash through AEMnet CAN bus. The modules
support the Bosch CAN 2.0b standard, making it compatible with many
third-party devices that accept a programmable CAN bus input, which also
allows you to add additional channels to a non-AEM ECU, dash, or logger.
Features include:
* Two temperature (thermistor) inputs
* Two dedicated 0 to 5 V analog inputs
* One dedicated fuel level input (0 to 250 Ohm range)
* One tachometer/coil input
* Fixed CAN bus speed, header length, and base address
* IP67 potted enclosure/sealed connector—dust-tight and protected against
water spray
* Protected inputs

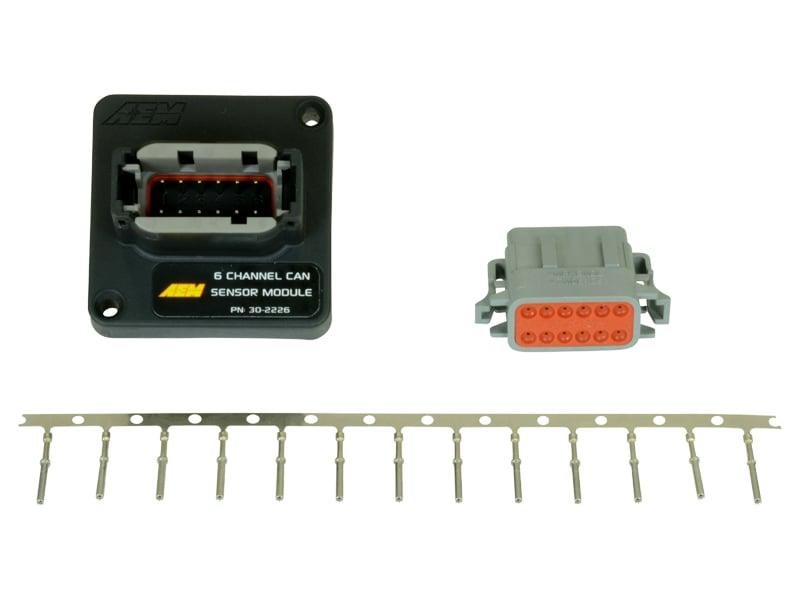

* 12-pin DTM-style connector and pins
