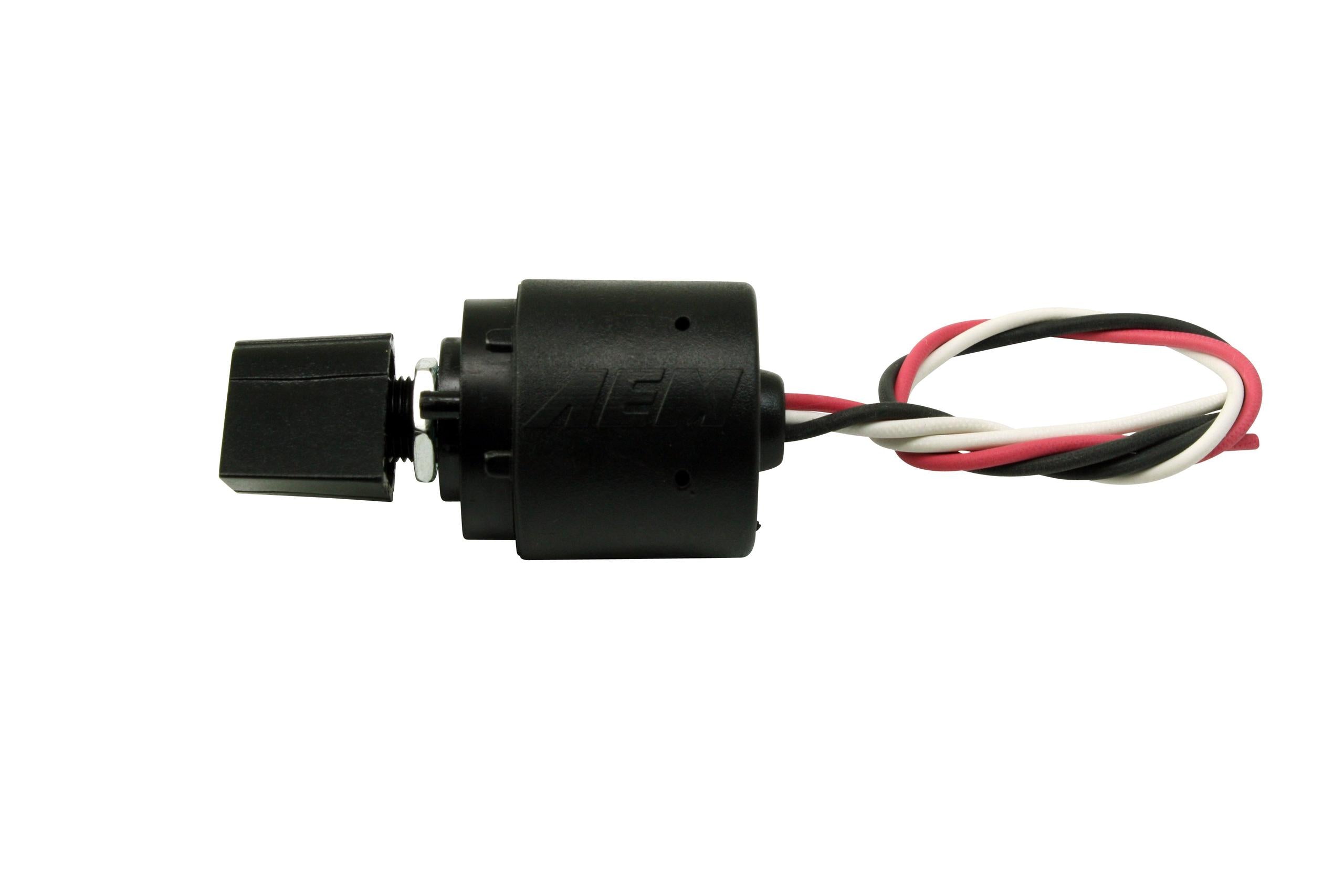

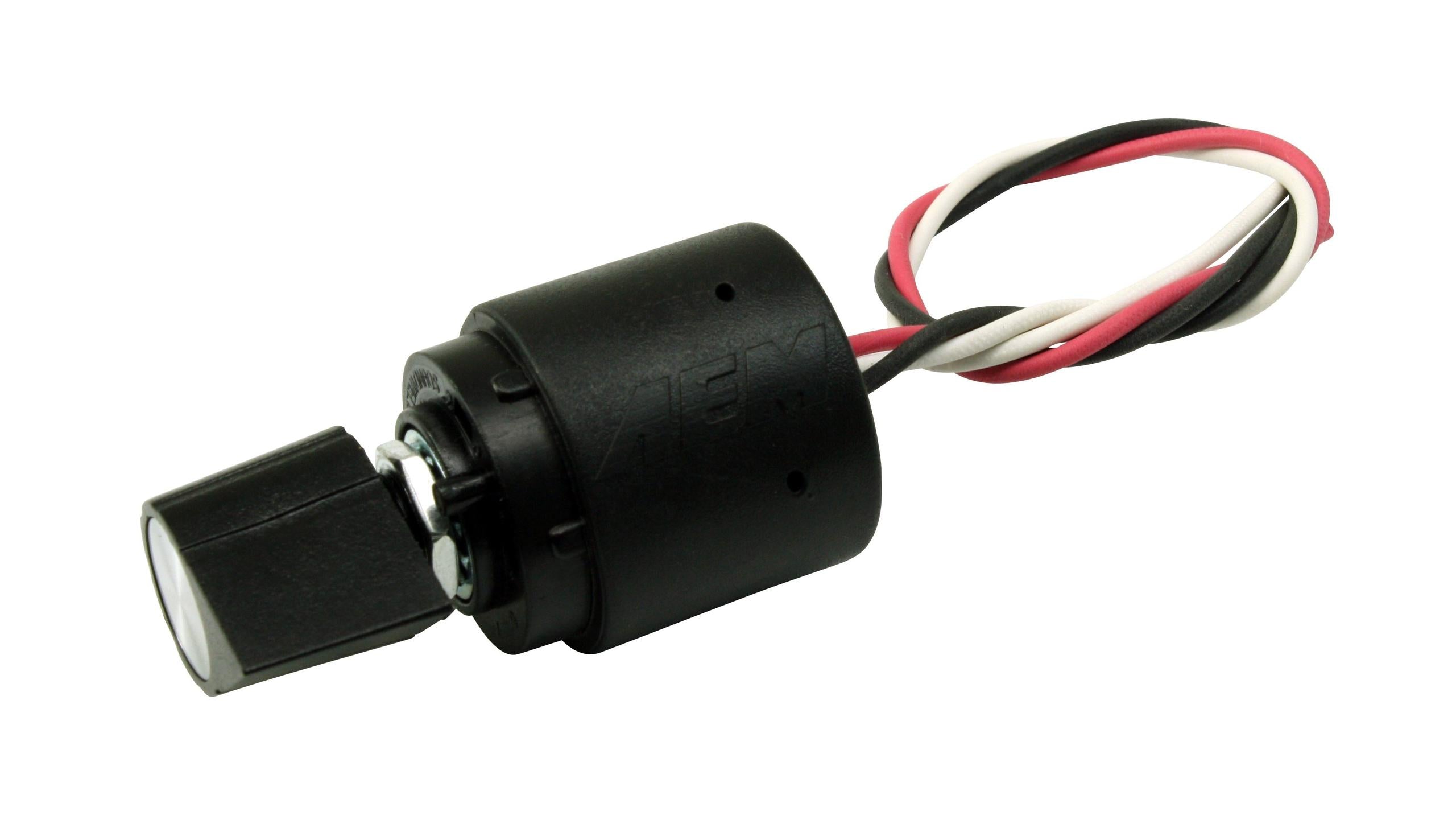

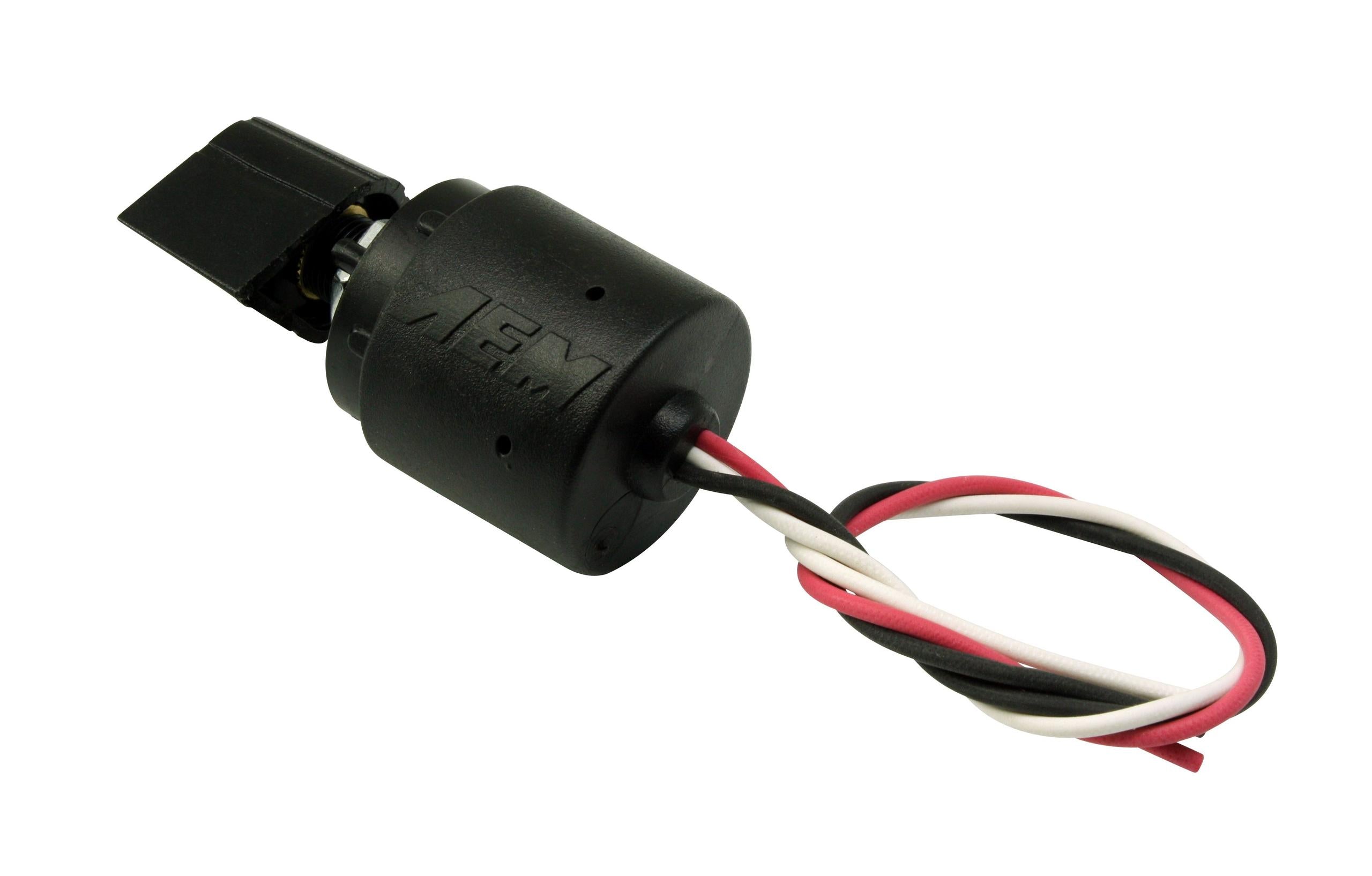

AEM 12 Position Trim Pot - 30-2056
AEM Electronics Universal Trim Pots
A tweak here and a trim there—AEM universal trim pots will shape your
engine's efficiency for performance. These 12-position trim pots can be
used with virtually any engine management system to adjust a number of

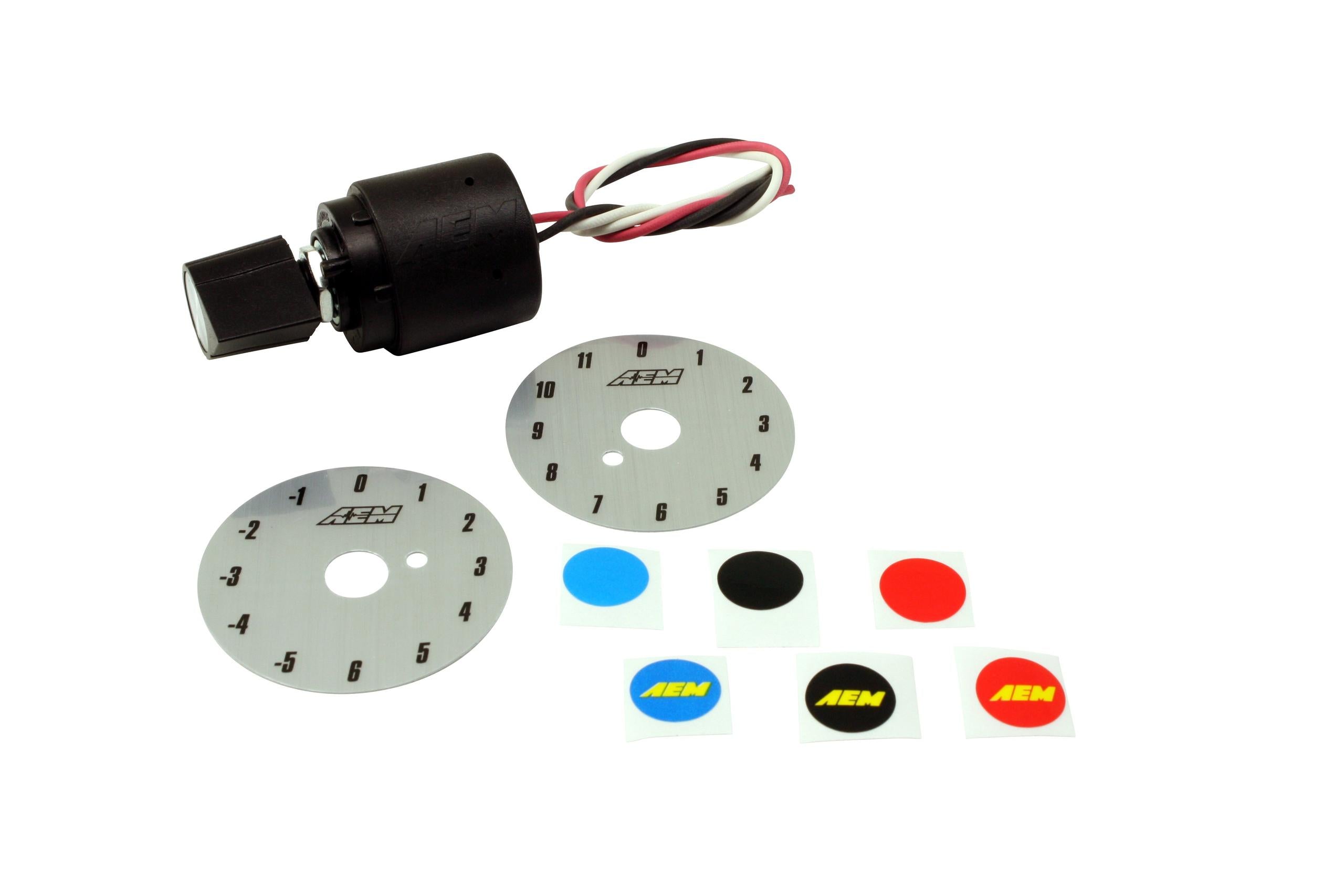

trims … from fuel and ignition timing to boost and more. Included in each
pack is the 12-position trim pot with flying lead that has 12 in.

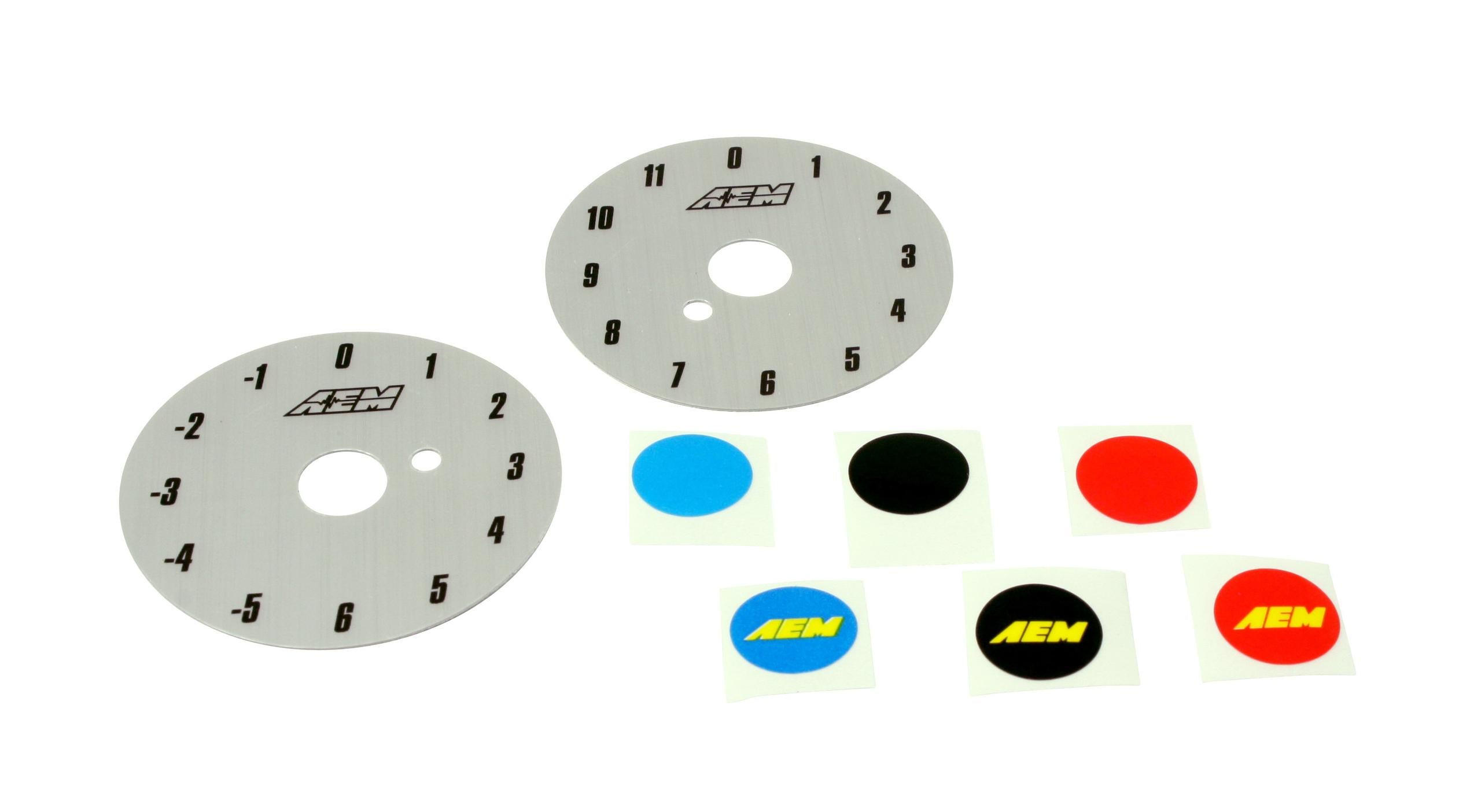

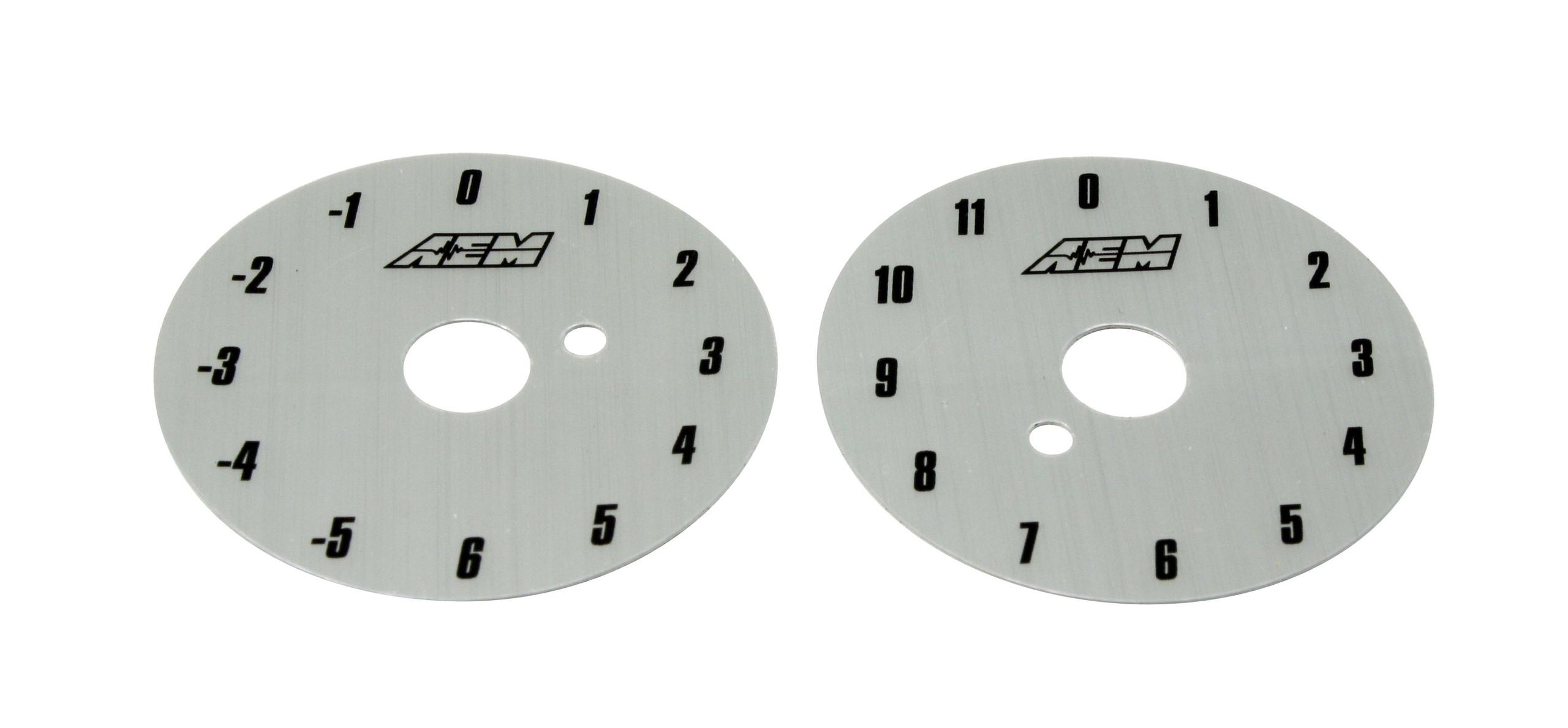

insulated, color-coded wires, two brushed silver trim position decals with
ranges from -5 to +6 and 0 to +11, and knob decals.
AEM trim pot specifications:
* Total resistance: 14.3KO
* Cycles minimum: 10,000
* Positions: 12
* Degree rotation: 330
* Mounting: 3/8 in. hole
* Jam nut: 1/2 in. hex
* Knob set screw: 1/16 in. Allen
* Supply current: 5 Vdc
