Includes: 2013-2014 GT500 Fuel Injectors, MSD Fuel Pump Voltage Booster, Denso ITV-24 Spark Plugs, 3.875" Supercharger Pulley
Whipple continues to stay at the forefront of not only supercharger technology but also automotive technology. When the 2018 Mustang GT specs came out, it flipped their world upside down, quite literally. They created an entirely new supercharger that was upside down. Sort of. We mean upside down in that, opposite of the previous 2017-older Mustang 2.9L superchargers, the intercooler now sat ON TOP of the rotors. This new 3.0L supercharger was dubbed the Gen 6. Why not Gen 1 since it’s an all new design, you ask??
When the Gen 6 3.0L was released, the 2.9L for the 2011-2014 Mustangs was on Gen 3, which was already proving to be a worthy upgrade from the Gen 1 and Gen 2 setups. On top of that, Whipple already had the Gen 4 rotors in the works but they knew that they would be retro-fitting the new 3.0L for the 2018 onto the older cars since it was proving to be incredibly efficient and make some insane horsepower… hence the Gen 6 name.

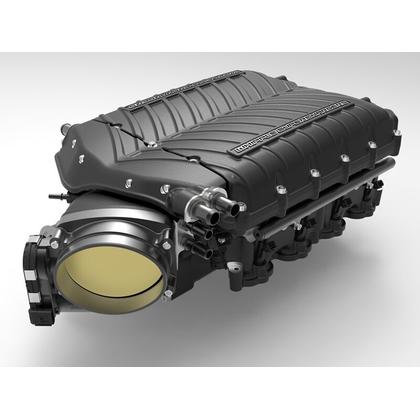

Well, the time is NOW. Whipple Superchargers brings you the Gen 6 3.0L supercharger for your 2011-2014 Mustang GT/Boss 302! Featuring the same technology as used in the kits for the 2018+ Mustang, this kit will be sure to make some amazing power and as available in different stages to suit your needs. Add some boost to your S197 with the latest & greatest from Whipple Superchargers.
What’s new about the Gen 6 besides the intercooler and rotors switching locations? It has all new bearings, gears, rotors and housing that allow the new supercharger to spin faster, longer and safer while producing more power than any other positive displacement supercharger ever built.
The Gen 6 3.0L also features an even larger intercooler than the already massive Whipple Cooler that cooled the Ford Cobra Jets and all the record setting S550 Mustangs. Couple this with the industry's leading heat exchanger, water reservoir and intercooler pump, you get more power with lower boost levels and quicker recovery times after aggressive operation.
While Whipple broke many rules and records with its record setting S550 supercharger system, holding the title of the most powerful, most advanced supercharger system available, we weren't satisified and decided to build an all new supercharger from the ground up. The stage 1 supercharger system makes *775 flywheel HP and *630 foot pounds of torque and is offered with an optional 3 year, 36,000 mile power-train warranty.
The new, direct and port injected supercharger system features the brand new Generation 5 3.0L front feed twin-screw supercharger. Not to be confused with the Gen 3 or 4, this all new supercharger features industry leading efficiency from idle to redline. All new bearings, gears, rotors and housing allow the new supercharger to spin faster, longer and safer while producing more power than any other positive displacement supercharger ever built. The new Gen 6 features an all new 3/4 rotor combination vs previous 3/5, 285 deg helix vs previous 270 deg, new bell mouth inlet, optimized discharge port and increased diameter vs length for higher efficiency.
The 2018 also features an all new patent pending triple intercooler design that has even more volume and surface area than the already massive Whipple Cooler that cooled the Ford Cobra Jets and all the record setting S550 Mustangs. Couple this with the industry's leading heat exchanger, water reservoir and intercooler pump, you get more power with lower boost levels and quicker recovery times after aggressive operation.
With years of OEM and racing experience, Whipple engineers have developed a unique PCM calibration that reconfigures all the necessary engine functions including fuel, spark, knock detection, torque management, transmission control and electronic throttle control. The vehicles PCM constantly monitors the engines torque output while monitoring many different parameters to keep the engine in it’s ideal parameters. If a parameter falls below specification, the PCM will lower boost and torque output until the problem can be cured. No other calibration in the field has such technology, giving the Whipple SC system unheralded performance and reliability. Each Whipple kit comes with unique software and a OBDII flash tool giving the customer the ability to flash/update whenever needed. Each customer also gets the new Flight Control Software, ability to adjust wheel/axle size, octane adjustment, crank/cam relearn and many other unique features.
Each complete Whipple system comes with the IAT2 harness and sensor to properly monitor the delta between the incoming air and the compressed air after the intercoolers, this helps maximize power in all given enviornments. The 6-rib billet idler system features a billet spring loaded tensioner, billet idler pulleys and lightweight pocketed supercharger pulley. The 6-rib can easily be upgraded to a 10-rib with the optional 10-rib system. Each system comes with an adjustable idler pulley to allow variance in SC pulleys with minimal belt length changes. The massive 150mm Roval inlet allows for nearly any throttle body to be run, 80mm stock, 132mm or 150mm throttle bodies.
Leaving no stone unturned, Whipple's revolutionary system for the Ford 5.0L Coyote engines is truly resetting the standards of supercharging. With its massive front feed inlet, typical inlet inefficiencies are a thing of the past. Featuring the all new ground breaking, Gen 6 inverted supercharger with the patent pending triple intercooler technology.
Other positive displacement superchargers sacrificed plenum volume and runner size while Whipple engineer's used every square inch available to open the volume of the manifold, allowing for future expansion of power levels. Small runner and small volume manifolds cause excess boost "build-up" giving you manifold pressure, not proper cylinder pressure. This results in high boost, low power scenario's with excess heat from the lack of proper flowing air volume.
Whipple didn't just stop there, knowing that the Coyote motors love boost, Whipple’s team squeezed in not one, but three high density intercooler cores featuring variable thickness to maximize airflow and cooling capacity. The triple coolers allow for maximum surface area to promote equal distribution and increased cooling. Cooler air equals denser air which equals more power at each boost level while being safer on engine components.
The bigger intercooler alone wasn’t enough, in previous generations, the supercharger discharge was typically too far forward from the intercooler core, and sandwiched so close to the core on top that the core’s surface area was not properly utilized. With the new 3.0L Gen 6, Whipple was able to increase the volume and distance above the intercooler core, as well as doing the same below. This issue, like some of our competition, increases the “boost” in the manifold, but not at the valves and combustion chamber. This means high boost, low power and high discharge temps. Whipple’s front feed system has a rear discharge port at nearly the center of the IC core. Through countless CFD analysis, Whipple’s design utilizes nearly the entire intercooler core, resulting in less pressure drop and cooler temps for increased power levels.
Another great feature to the Whipple Coyote kits is the oversized heat exchanger, nearly 150% more volume than the competition, oversized aluminum intercooler reservoir and optional dual fan kit. The oversized heat exchanger is nearly the size of the engine radiator, giving incredible cooling capacity for daily driving, drag racing or road racing. Get the dual Spal fan kit option and increase the airflow over the heat exchanger. The Whipple oversized aluminum reservoir is again a unique feature included with every kit. The aluminum reservoir is remote mounted in the driver side inner fender, keeping it in the cool area away from engine heat, along with having over 1.2 gallons of capacity in the reservoir alone! Giving the intercooler system well over 2 gallons of capacity. This means cooler air temps, less heat soak and more power!
Largest intercooler system on the market, featuring triple core technology
No other upgrades required, just massive power right out of the box
Front entry Gen 6 W185ax (3.0 liters/3000cc) Whipple twin-screw supercharger that significantly outperforms competitions 2.3L and 2.65L roots-type systems
Gen 6 supercharger features new 3x4 rotor combination for increased RPM capacity, large diameter for increased airflow and small leak path, increased helix for optimal sealing
3.0L is 13% larger than 2.65L roots-type allowing lower power draw and lower discharge temps to flow the same amount of air (more power to the rear wheels)
Oversized Crusher™ 150mm inlet for maximum airflow capacity and minimal rotor cavitation
Inverted design allows for oversized intercooler core compared to other smaller intercooler cores giving Whipple lower air charge temps which allows more boost and timing to be run on pump gas
Patent pending triple intercooler technology with massive 1" port capacity
Massive air-to-water aluminum bar-plate intercoolers (over 55% larger than some competition) offer more cooling than any other positive displacement system available, nothing comes close
Massive oversized aluminum intercooler reservoir (over 2 gallons) holds more than double any competitors IC water system allowing longer more consistent power levels vs. competition
High flow intercooler pump, nearly double the flow of the standard units others use
Whipple Superchargers massive oversized intercooled air-bypass system for industry leading reduction of burst knock and incredible fuel economy
Included OBDII flash tool, SCT X4
Exclusive 3x4 rotor combo for significant increase in airflow under the curve than less efficient 4x4 roots
Center discharge port for better cylinder to cylinder distribution then other twin-screws with cobbled together billet adapters and forward facing discharge
Extra plenum volume below intercooler core for far less pressure drop and better use of the increased surface area of the massive intercooler core
More boost at the "hit" than any other twin-screw
Flat torque curve for incredible acceleration
Oversized heat exchanger for incredible intercooler water temps, 150% more volume than competition, standard with every kit
Fits under factory hood with no modifications
No cutting or grinding on the engine block
No cutting or grinding the K-brace
No internal modifications required
Kits come complete with all necessary parts and hardware for installation
Plug and play wiring with male and female connections
Proven 6-rib belt system with heavy duty spring loaded tensioner and adjustable idler system
Optional 10-rib belt system with matching 6061 T6 billet pulleys
OEM quick connect fittings for easy installation
Complete kits and competition kits are available
Available in wrinkle black, polish, Ford textured blue or any custom color
Easily upgradeable with bigger throttle body (132mm or 150mm Roval elliptical), dual electric Spal 11" high speed fans, optional supercharger pulleys
Instant boost at the touch of the throttle
3 minute pulley changes
Easy belt changes
Lightweight pocketed 6061 T6 billet aluminum SC pulley
Optional 3 year, 36,000 mile engine warranty
Denso ITV-24 Iridium spark plugs included
2013-2014 Shelby GT500 OEM Injectors Included
MSD Fuel Pump Voltage Booster Included
