Zone Offroad 88-91 Jimmy Chevy V20/V2500 Suburban 6 Inch Lift Kit With Nirto Shocks - ZONC24N
Are you ready to take a big step? Then this is your 6 Inch Lift Kit. You can't help but stand out when you can clear massive 37 Inch tires. Get the look and performance you want out of your 4WD 1988 - 1991 Chevy/GM K1500 SUV. Yet another kit from enthusiasts, for enthusiasts.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 6 Inch
- Front Lift Method Leaf Springs
- Rear Lift Method Add-A-Leaf & Cast Block
- Lift Type Lift Kit
- Wheel Size 15 x 8
- Back Spacing 3.5 Inch
- Max Tire Size 3 Inch x 12.5
- Wheel Size 2 16 x 8
- Back Spacing 2 3.5 Inch
- Max Tire Size 2 37x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No
Features:
- Brake line relocation brackets allow re-use of factory brake lines.
- Heavy-duty replacement front leaf springs provide lift and great ride quality.
- High-strength, black e-coated U-bolts.
- Rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
- Rear lift block and longer U-bolts for easy installation and level stance.
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.

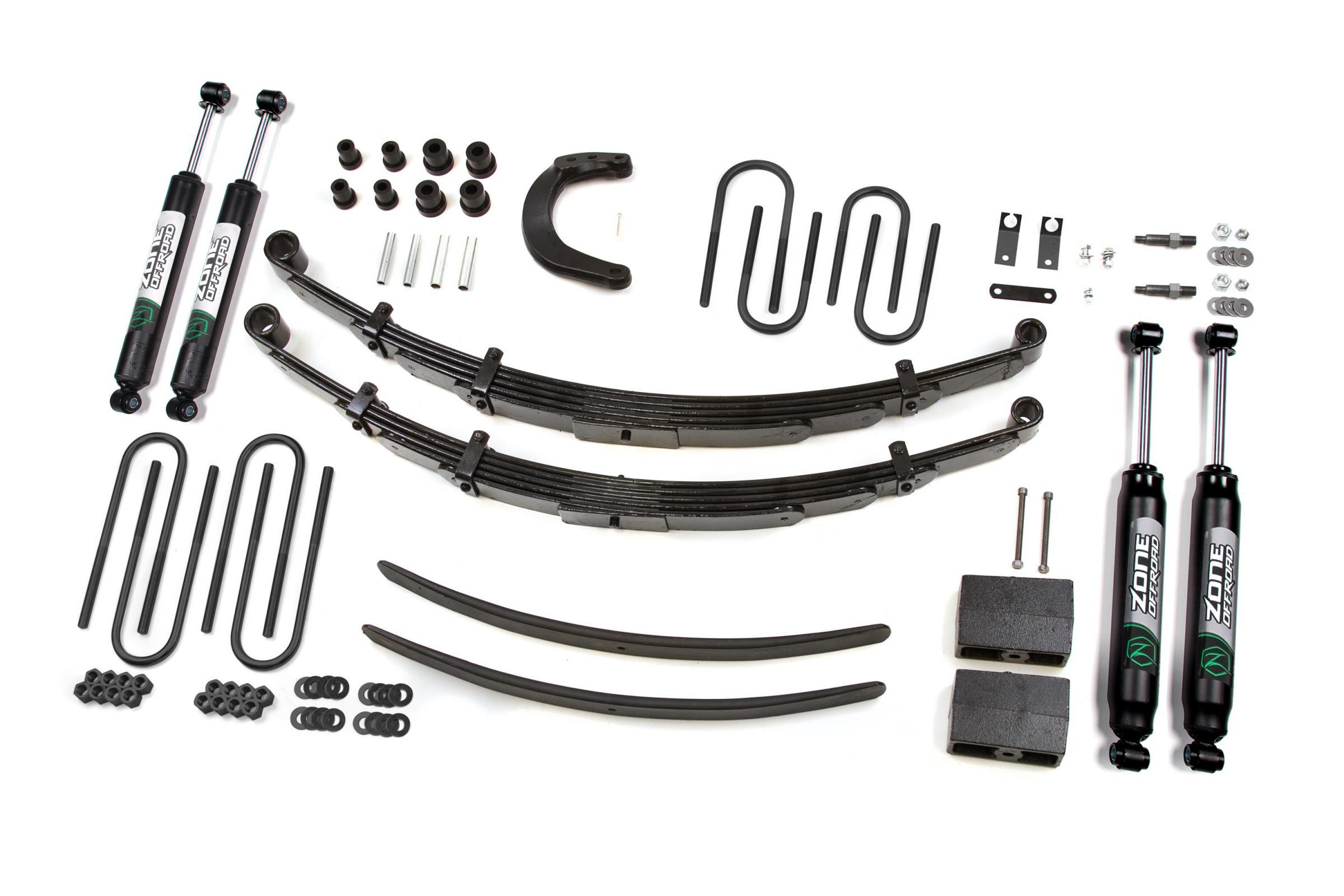

In The Box:
- Add-A-Leaf's
- Brake Line Brackets
- Bushings
- Leaf Springs
- Rear Lift Blocks
- Steering Arm
- U-Bolts
Kit Components:
- ZON7639 Nitro- 29.8 x 17.6 x 2-3/8 EB1/EB1 2 711745595446
- ZON7652 Nitro- 26.20 x 15.80 x 2-3/8 EB1/EB1 2 711745595477
- ZONC0601 1973-1987 Chevy/GMC 1/2, 3/4 6 Inch Front Leaf Spring 2 711745596399
- ZONC1413 88-91 Chevy 3/4 Ton 4-6 inch SUV Box Kit 1 711745596757
- ZONC6158 1973-1987 Chevy/GMC 1/2, 3/4 Ton Rear Add-a-leaf 1 711745597501
