Zone Offroad 21-24 Ford F-150 With CCD 4WD 6 Inch Lift Kit 5 Inch Rear Block Spacer Front Rear Shock Relocation No Shocks - ZONF103
Take your 21-23 InchF150 to new heights with this 6 Inch lift kit from Zone Offroad - now available for trucks equipped with CCD!
Engineered to the highest standard to maintain ride quality and handling performance, this kit includes everything needed to properly lift your truck from high strength crossmembers and steering knuckles to strut spacers and a rear block kit to level out the stance.
Sensor and shock relocation brackets are designed specifically to retain full function of the CCD suspension (Continuously Controlled Damping). Get the look, performance, and capability your truck deserves with clearance for 35-37 Inch tires.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 5 Inch
- Material Steel
- Front Lift Method Strut Spacers
- Rear Lift Method Block Kit
- Lift Type Lift Kit
- Wheel Size 20 x 9
- Back Spacing 5.5 Inch-5.75 Inch
- Max Tire Size 37 x 12.5
- Wheel Size 2 20 x 9
- Back Spacing 2 4.5-5 Inch
- Max Tire Size 2 37 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Welding Required No
Features:
- Works with models equipped with CCD (Continuous Controlled Damping) suspension.
- Kit design optimizes ground clearance and improves offroad protection Maintains drivability and handling by correcting suspension, steering and driveline geometry.
- Redesigned steering knuckles specific to the 2021-2023 InchF150 to maintain ESC system compliance 4 Inch or 5 Inch replacement rear lift blocks available to achieve desired stance without the need to stack lift blocks Kits includes Factory Protection Plus (ESC system compatibility, Limited lifetime warranty, 5yr-60k mile drivetrain warranty)
- Kit allows clearance for 37 Inch tires

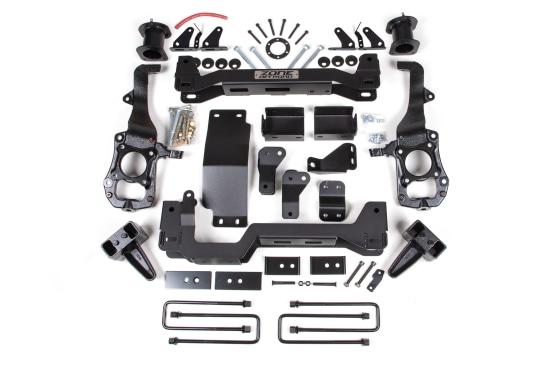

Kit Components:
- ZONF2605 21-24 Ford F150 4WD 6 Inch Strut Spacer Box Kit, CCD Only 1 711745606517
- ZONF2638 21-24 Ford F150 5 Inch Rear Box Kit 1 711745596238
- ZONF2660 21-24 Ford F150 Knuckle Box Kit DS 1 711745594999
- ZONF2661 21-24 Ford F150 Knuckle Box Kit PS 1 711745595002
- ZONF2662 21-24 Ford F150 Front Box Kit 1 711745596245
- ZONF2663 21-24 Ford F150 Front Box Kit 1 711745596221
