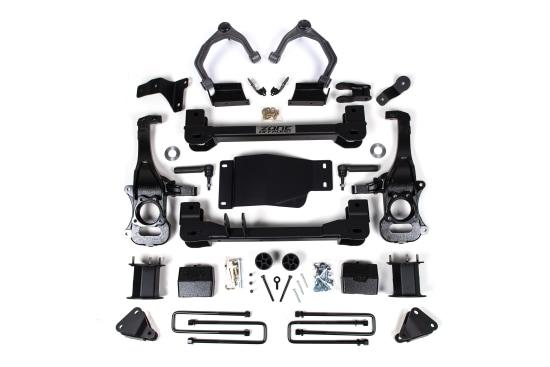

Zone Offroad 2022-2024 Chevy ZR2/GMC AT4X 4WD 4 Inch Lift Kit No Shocks - ZONC73
Take your Chevy ZR2 / ATX4 to new heights with this 4 Inch lift kit from Zone Offroad. This system raises ride height 4 inch over stock and will sit at the same height as a 6 inch system would on a standard truck.
Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers, upper control arms and differential brackets to maintain driveline angles.
This system is designed to take full advantage of the factory Multimatic shock system by correctly positioning them with an upper strut spacer in front and a relocation bracket in the rear.
Our unique knuckle design allows for a much tighter turning radius than our competition, as well as a wider selection of wheel fitment options. Get the look, performance, and capability your truck deserves
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 3 Inch
- Front Lift Method Strut Spacers
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size See Notes
- Back Spacing See Notes
- Max Tire Size See Notes
- Is Adjustable No
- Cutting Required Yes
- Welding Required No
Features:
- High strength crossmembers to correct lower control arm positioning.
- Ductile iron steering knuckles and new tie rod ends to correct steering geometry and maintain ESC system compatibility.
- Strut spacers and shock relocation brackets to maintain Multimatic shock functionality.
- Kits include adventure series upper control arms and differential skid plate for additional offroad protection.
- Rear lift blocks and u-bolts to lift and level the stance, sway bar correction, brake line and bump stop relocation brackets to correct operating angles.
Kit Components:
- ZONC2400 2022-2023 Chevy ZR2 / GMC AT4X 4 Inch Suspension Lift Box Kit 1 711745612723
- ZONC2662 2019-2024 Chevy/GMC 1500 Front Box Kit 1 711745597372
- ZONC2672 2019-2024 Chevy/GMC 1500 Knuckle Box Kit 1 w/UCA (4 Inch and 6 Inch Compatible) 1 711745612686
- ZONC2673 2019-2024 Chevy/GMC 1500 Knuckle Box Kit 2 w/UCA (4 Inch and 6 Inch Compatible) 1 711745612693
