Zone Offroad 19-24 RAM 3500 4.5 Inch Radius Arm Bracket 2 Inch Rear Block With Overload Diesel 8-Bolt T-Case Nitro Shocks - ZOND95N
Take your RAM 3500 to new heights with this 4.5 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 37 tires
Quick Specs:
- Front Lift Height 4.5 Inch
- Rear Lift Height 3 Inch
- Material 1/4 Inch Steel
- Front Lift Method Coil Springs
- Rear Lift Method Block Kit
- Lift Type Suspension
- Wheel Size 20 x 9
- Back Spacing 5.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 20 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 35 x 12.5
- Finish Powdercoat

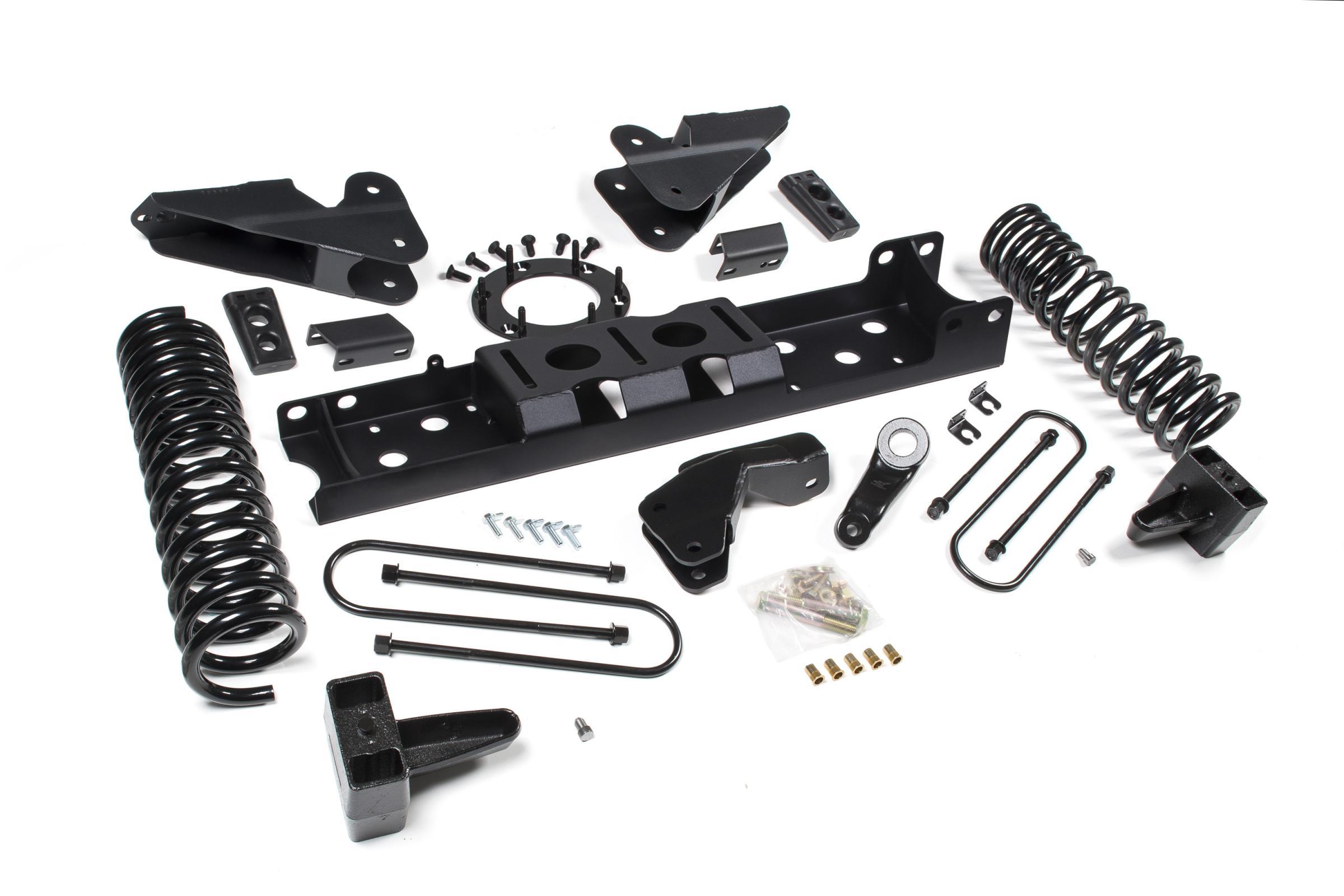

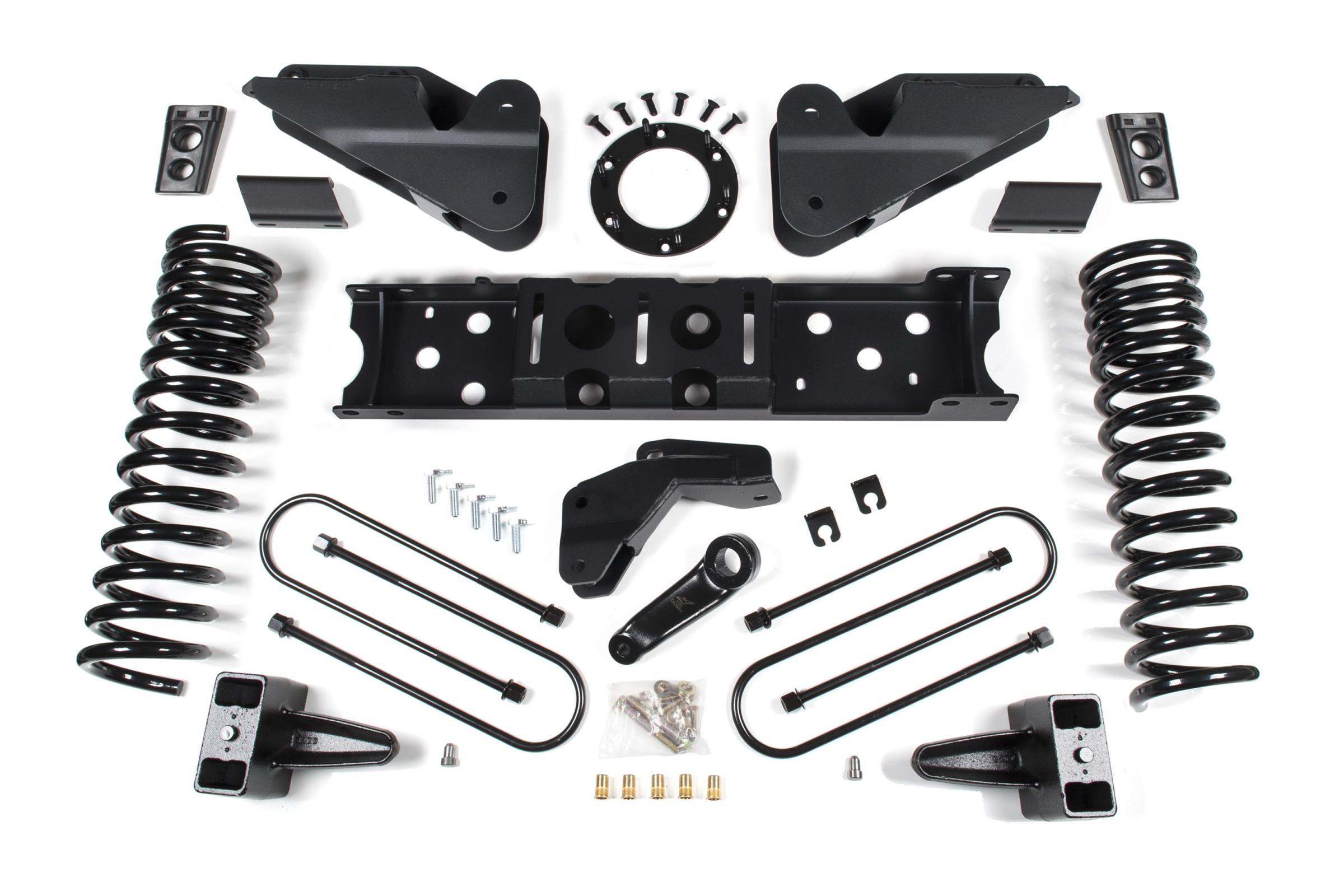

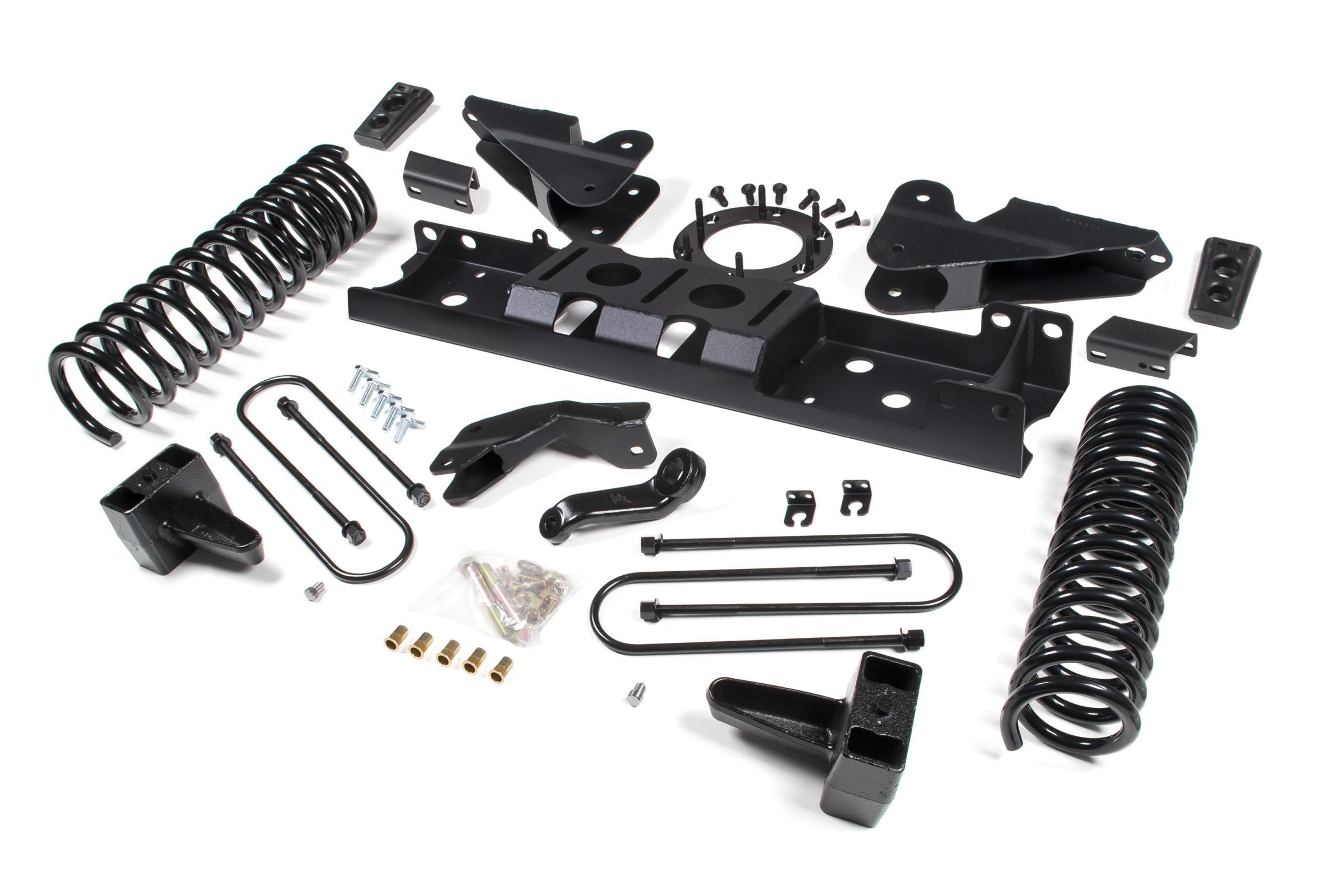

In The Box:
- Coil Spring Spacers - Front
- Rear Lift Block & U-Bolt Kit
- Transfer Case Indexing Ring
Features:
- High strength progressive rate front coil springs for a great ride on any terrain
- HD radius arm drop brackets to correct suspension geometry
- HD track bar relocation bracket to correctly position front axle under the truck
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles
- Nitro series gas or FOX adventure series IFP gas shocks to improved ride and offroad performance
- Allows clearance for up to 37 tires
Kit Components:
- ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 S50/EB2 2 711745595484
- ZON7759 Nitro 29.80 x 17.60 x 2-3/8 EB1/EB1 2 711745595750
- ZOND1206 19-24 RAM 3500 2 Inch Rear Box w/Overload 1 711745605961
- ZOND1404 19-24 RAM 2500 / 19-24 RAM 3500 4.5 Inch Front Box Kit 1 711745605992
- ZOND3401 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 4.5 Inch Diesel 5.5 Inch Gas 2 711745598560
- ZOND5823 19-24 RAM 3500 T-Case Index Kit 8 Bolt 1 711745606050
